Περιγραφή

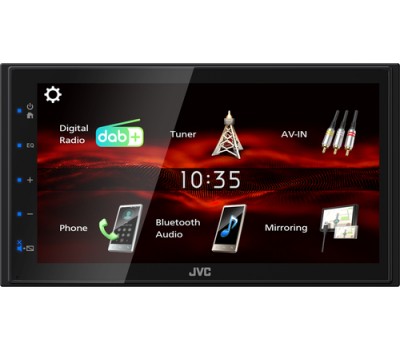

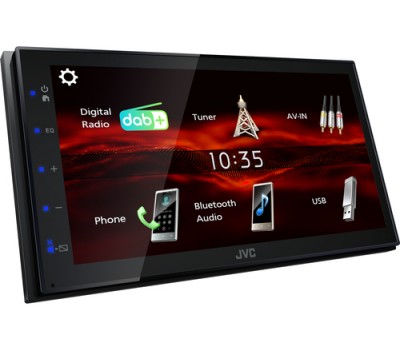

- 6.8" WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
- DAB/DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
- Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone).
- Supports Android USB Mirroring for seamlessly displaying and controlling your smartphone on the large screen.
- Rear, High Speed USB type-A port. 1.5A Max Charge.
- MP3-WMA-AAC-WAV-FLAC audio file & MPEG1/2-MPEG4-H.264-MKV video file playback.
- Time Alignment & 13-Band EQ for optimal sound tuning enhancements
- 2 Preouts(front/rear) + sub(mono) to connect external amplifiers and improve your sound system.
- AV-in, Video-out and dedicated rear view camera input with parking guide lines
- Short body (75mm) for easy installation in a wider range of cars.
- DAB/DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
- Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone).
- Supports Android USB Mirroring for seamlessly displaying and controlling your smartphone on the large screen.
- Rear, High Speed USB type-A port. 1.5A Max Charge.
- MP3-WMA-AAC-WAV-FLAC audio file & MPEG1/2-MPEG4-H.264-MKV video file playback.
- Time Alignment & 13-Band EQ for optimal sound tuning enhancements
- 2 Preouts(front/rear) + sub(mono) to connect external amplifiers and improve your sound system.
- AV-in, Video-out and dedicated rear view camera input with parking guide lines
- Short body (75mm) for easy installation in a wider range of cars.
Χαρακτηριστικά
Κατασκευαστής:
JVC
MP3 playback:
- Yes
Audio
Built-in audio D/A Converter (DAC):
- Yes
Equalizer bands quantity:
- 13
Frequency range:
- 20 - 20000 Hz
Design
Display illumination:
- Yes
Illumination colour:
- Blue
Product colour:
- Black
Display
Built-in display:
- Yes
Display diagonal:
- 17.3 cm (6.8\")
Display resolution:
- 800 x 480 pixels
Display type:
- TFT
LED backlight:
- Yes
Touchscreen:
- Yes
Touchscreen type:
- Capacitive
Widescreen:
- Yes
Ergonomics
Dimmer:
- Yes
Headphones
Impedance:
- 4 Ω
Networking
Bluetooth functions:
- Automatic pairing for Android, Handsfree calling
Bluetooth profiles:
- A2DP, AAC, AVRCP, HFP, PBAP, SBC
Bluetooth version:
- 5.0
Other features
Ready for iPod:
- Yes
Performance
Disc types supported:
- No
Hands-free calling:
- Yes
High pass filter:
- Yes
iPod connectivity:
- Yes
Loudness control:
- Yes
Low pass filter:
- Yes
Rear-view camera ready:
- Yes

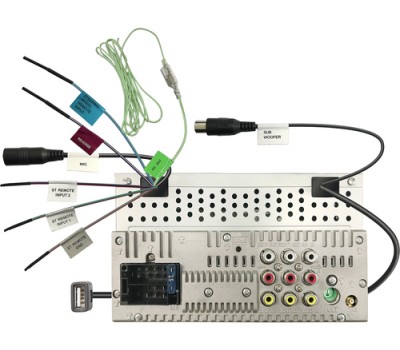

Ports & interfaces
Audio front left out:
- Yes
Audio front right out:
- Yes
Audio rear left out:
- Yes
Audio rear right out:
- Yes
AV input:
- Yes
Bluetooth:
- Yes
Pre out port:
- Yes
USB port:
- Yes
USB port position:
- Rear
USB version:
- 2.0
Power
Maximum power per channel:
- 45 W
Output power:
- 180 W
Radio
AM band range:
- 531 - 1611 kHz
DAB tuner:
- DAB+
FM band range:
- 87.5 - 108 MHz
Preset stations quantity:
- 30
Radio Data System (RDS):
- Yes
Supported radio bands:
- AM, DAB, DAB+, FM
Technical details
Subwoofer out:
- Yes
USB direct playback:
- Yes
Transmitter
USB ports quantity:
- 1
Weight & dimensions
Depth:
- 75 mm
Height:
- 100 mm
Installation compartment depth:
- 7.5 cm
Installation compartment height:
- 11.2 cm
Installation compartment width:
- 18.2 cm
Weight:
- 1.3 kg
Width:
- 178 mm
Multimedia
Audio formats supported:
- AAC, FLAC, MP3, WAV, WMA
Bass boost technology:
- Yes
CD-R playback:
- No
Equalizer:
- Yes
Video formats supported:
- AVI, H.264, MKV, MPEG1, MPEG2, MPEG4
