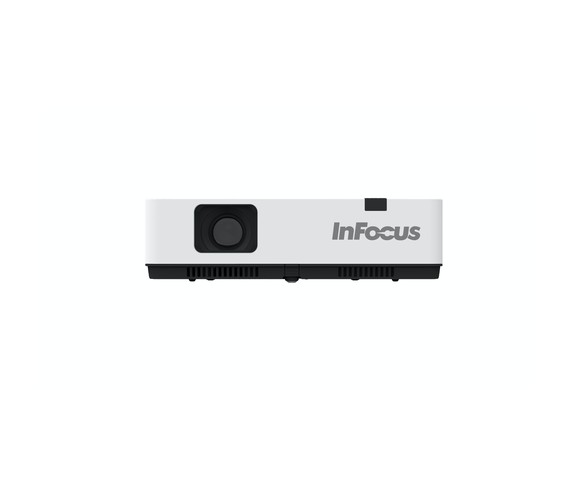

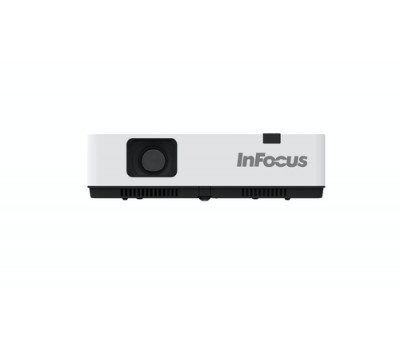

InFocus IN1036 data projector Standard throw projector 4600 ANSI lumens 3LCD WXGA (1280x800) White (IN1036)
Περιγραφή
Display over USB
The latest display technology! Display content from your Windows laptop or computer via the USB-C or USB-A port with a USB cable to the projector.
Memory Viewer
View files, images, and video with audio directly from a USB thumb drive using the projector USB-A port.
Six Point Pincushion & Barrel Adjustment
Projecting on to an uneven or rounded surface? We have you covered with our optical distortion algorithms and built-in image correction software.
Horizontal & Vertical Keystone
Correct the displayed image quickly and effortlessly with both horizontal and vertical keystone correction.
Display over LAN
Connect your projector and Windows device to the same local area network and display source content over the network to the projector and onto the big screen. When no network is available, we also offer the ability to display via USB to the projector's RJ45 port by cable.
Logo Capture & Display
Display your company logo or school mascot on your projector start-up screen background with our built-in image capture tool.
Command & Control
Whichever protocol or hardware control device you are using we offer compatibility will all major formats and devices.
Optimal Contrast Ratio
The implementation of advanced Iris dynamically adjusts the iris settings providing brightness optimization to best suit the content being displayed. Advanced iris gives dark scenes and content darker blacks and opens up on bright scenes to make optimum use of the projector's available light output. The resulting contrast levels are outstanding!
Screen Splicing
Need to see the detail in one part of an image or zoom in to display a different perspective? Our Screen Splicing allows you to cut the image into a 5x5 or less area and then take one section, or multiple sections, one at a time, and display it full screen.
The latest display technology! Display content from your Windows laptop or computer via the USB-C or USB-A port with a USB cable to the projector.
Memory Viewer
View files, images, and video with audio directly from a USB thumb drive using the projector USB-A port.
Six Point Pincushion & Barrel Adjustment
Projecting on to an uneven or rounded surface? We have you covered with our optical distortion algorithms and built-in image correction software.
Horizontal & Vertical Keystone
Correct the displayed image quickly and effortlessly with both horizontal and vertical keystone correction.
Display over LAN
Connect your projector and Windows device to the same local area network and display source content over the network to the projector and onto the big screen. When no network is available, we also offer the ability to display via USB to the projector's RJ45 port by cable.
Logo Capture & Display
Display your company logo or school mascot on your projector start-up screen background with our built-in image capture tool.
Command & Control
Whichever protocol or hardware control device you are using we offer compatibility will all major formats and devices.
Optimal Contrast Ratio
The implementation of advanced Iris dynamically adjusts the iris settings providing brightness optimization to best suit the content being displayed. Advanced iris gives dark scenes and content darker blacks and opens up on bright scenes to make optimum use of the projector's available light output. The resulting contrast levels are outstanding!
Screen Splicing
Need to see the detail in one part of an image or zoom in to display a different perspective? Our Screen Splicing allows you to cut the image into a 5x5 or less area and then take one section, or multiple sections, one at a time, and display it full screen.
Χαρακτηριστικά
Κατασκευαστής:
InFocus
Certification:
- CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS WEEE, EU RoHS, China RoHS, CEL, CECP
Noise level:
- 32 dB
Product type:
- Standard throw projector
Audio
Built-in speaker(s):
- Yes
Number of built-in speakers:
- 1
Camera
Zoom capability:
- Yes
Design
Cable lock slot:
- Yes
Cable lock slot type:
- Kensington
Product colour:
- White
Display
3D:
- No
Built-in display:
- No
Contrast ratio (typical):
- 50000:1
Native aspect ratio:
- 16:10
Supported graphics resolutions:
- 3840 x 2160
Supported video modes:
- 2160p
Focusing
Focus:
- Manual
Lens system
Offset:
- 10%
Zoom type:
- Manual
Light source
Light source type:
- Lamp
Service life of light source:
- 20000 h
Lighting
Lamps quantity:
- 1 lamp(s)
Operational conditions
Operating altitude:
- 0 - 3000 m
Operating relative humidity (H-H):
- 20 - 80%
Operating temperature (T-T):
- 5 - 40 °C
Storage relative humidity (H-H):
- 20 - 80%
Storage temperature (T-T):
- -10 - 50 °C
Packaging content
Batteries included:
- No
Manual:
- Yes
Packaging content:
- Projector, IR Remote Control (no batteries), Power Cord, VGA Cable, Setup Guide
Remote control included:
- Yes
Remote control type:
- IR
Packaging data
Cables included:
- AC, VGA
Performance
Focal length range:
- 19.16 - 23.02 mm
Noise level (economic mode):
- 26 dB
Smart TV:
- No

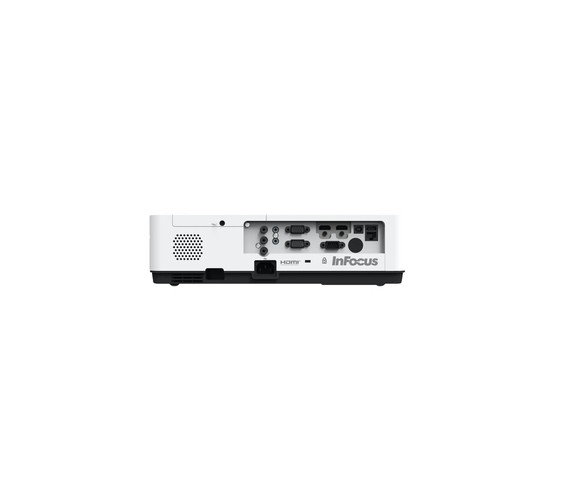

Ports & interfaces
Audio (L/R) in:
- 1
AUX in:
- Yes
Composite video in:
- 1
DVI port:
- No
Ethernet LAN (RJ-45) ports:
- 1
HDMI connector type:
- Full-size
HDMI ports quantity:
- 2
HDMI version:
- 1.4
Headphone outputs:
- 1
Serial interface type:
- RJ-45, RS-232
USB 2.0 ports quantity:
- 1
USB 2.0 Type-B ports quantity:
- 1
VGA (D-Sub) ports quantity:
- 2
Power
AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 100 - 240 V
Power consumption (max):
- 340 W
Power consumption (PowerSave):
- 150 W
Power consumption (standby):
- 0.5 W
Power source:
- AC
Projector
Horizontal synchronization (max):
- 100 kHz
Horizontal synchronization (min):
- 15 kHz
Projection distance:
- 0.87 - 10.74 m
Projection technology:
- 3LCD
Projector brightness:
- 4600 ANSI lumens
Projector native resolution:
- WXGA (1280x800)
Uniformity:
- 85%
Vertical synchronization (max):
- 0.085 kHz
Vertical synchronization (min):
- 0.048 kHz
Storage
Card reader integrated:
- No
Technical details
Lamp type:
- UHP
Video
Full HD:
- No
Weight & dimensions
Depth:
- 99 mm
Height:
- 261 mm
Weight:
- 3.3 kg
Width:
- 345 mm
Multimedia
RMS rated power:
- 16 W
