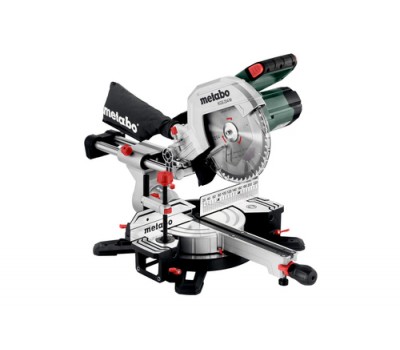

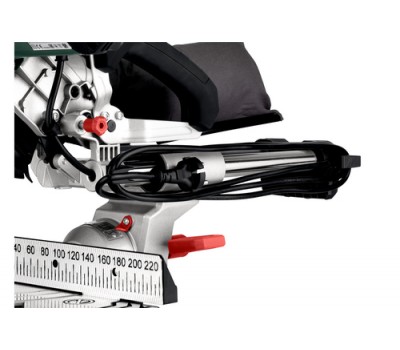

Metabo KGS 254 M 4500 RPM 1450 W (613254000)
Περιγραφή
-Crosscut and mitre saw of the mobile M-class with sliding function - light, precise, user-friendly

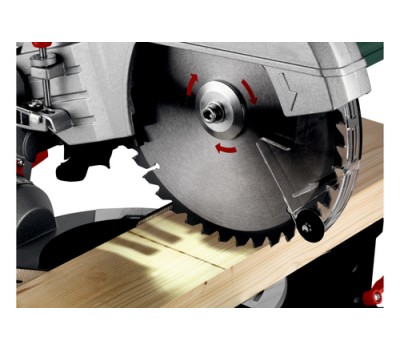

- Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
- Large cutting capacity thanks to sliding function for wide work pieces

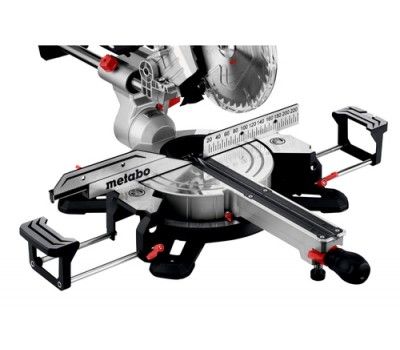

- Turntable with fast, precise setting of common angles using stop points
- Saw blade inclination from -2 to 47°, therefore also suited for undercuts
- Robust die-cast aluminium design for the highest demands

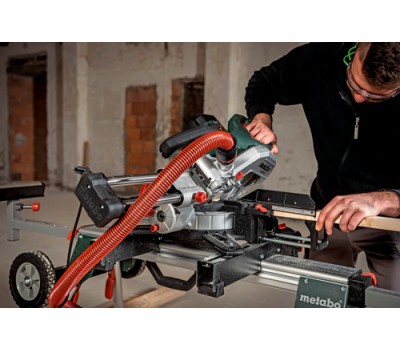

- Effective dust extraction via integrated dust scoop
- Soft start for long service life of motor and drive

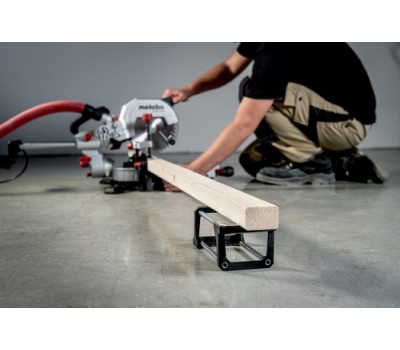

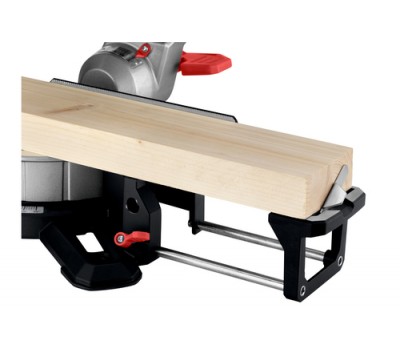

- Extendable table width extensions, also removable to put underneath extremely long work pieces

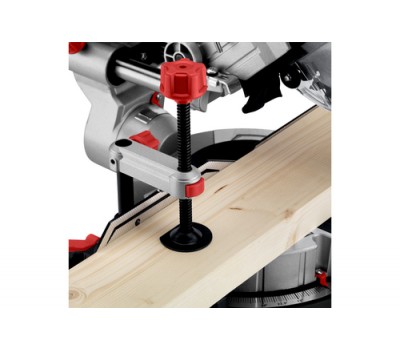

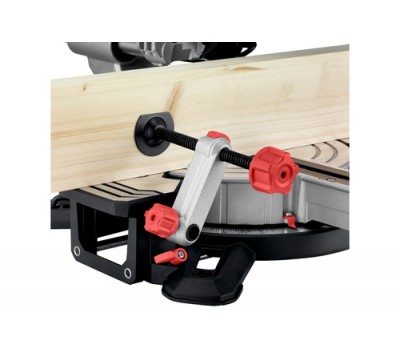

- Quick-action clamp for secure fixing of the work piece from the top or front
- Depth guide for easy creation of grooves
- All scales and operating elements are visible from the working position and can be operated intuitively

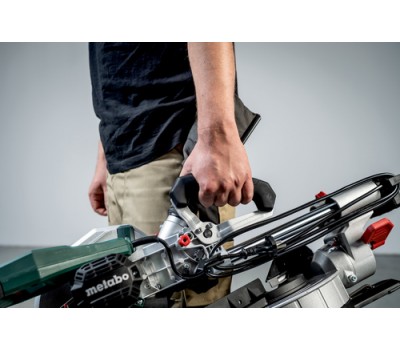

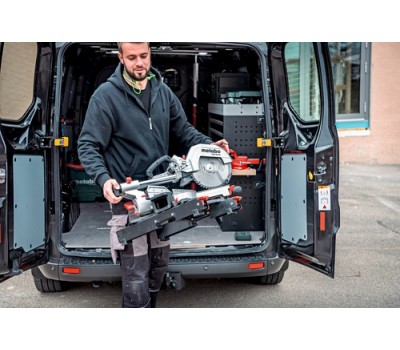

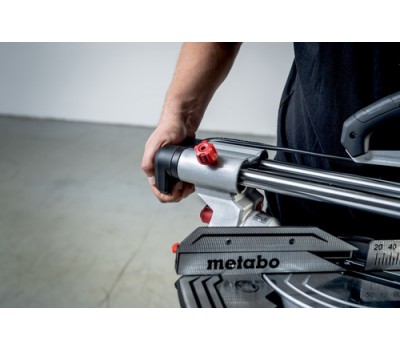

- Ergonomic handle areas for carrying with one or two hands
- Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
- Large cutting capacity thanks to sliding function for wide work pieces
- Turntable with fast, precise setting of common angles using stop points
- Saw blade inclination from -2 to 47°, therefore also suited for undercuts
- Robust die-cast aluminium design for the highest demands
- Effective dust extraction via integrated dust scoop
- Soft start for long service life of motor and drive
- Extendable table width extensions, also removable to put underneath extremely long work pieces
- Quick-action clamp for secure fixing of the work piece from the top or front
- Depth guide for easy creation of grooves
- All scales and operating elements are visible from the working position and can be operated intuitively
- Ergonomic handle areas for carrying with one or two hands
Χαρακτηριστικά
Κατασκευαστής:
Metabo
Bevel type:
- Double bevel
Idle speed (min):
- 3200 RPM
Laser guide:
- N
Saw blade included:
- Y
Sliding rails:
- Y
Sound power level:
- 99 dB
Sound pressure level:
- 86 dB
Performance
Compound cut capacity (45° x 45°):
- 215 x 47 mm
Cutting depth (90°):
- 9.2 cm
Cutting speed (max):
- 60 m/s
Cutting width (90°):
- 30.5 cm
Idle speed (max):
- 4500 RPM
Power
AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 220-240 V
Input power:
- 1450 W
Power source:
- AC
Technical details
Mitre setting (left):
- 50°
Mitre setting (right):
- 50°
Weight & dimensions
Blade diameter:
- 25.4 cm
Blade thickness:
- 3 cm
Depth:
- 485 mm
Height:
- 543 mm
Weight:
- 16.1 kg
Width:
- 726 mm
