Digitus 4K HDMI Extender Set, HDBaseT™, 4K/30Hz, 70 m (DS-55500)
Περιγραφή
Extends the maximum length for HDMI cables to up to 70m whereby only a simple network cable is used between a sender and a receiver unit
- Extends the maximum length for HDMI cables to up to 70m whereby only a simple network cable is used between a sender and a receiver unit
- Extends 4K video contents to up to 40m with a CAT 6 cable
- Offers simple and quick distribution for HDMI video signals - position your monitors wherever you wish
- Supports 4K Ultra HD (30Hz), 4096 x 2160p resolution
- Uses HDBaseT™ technology

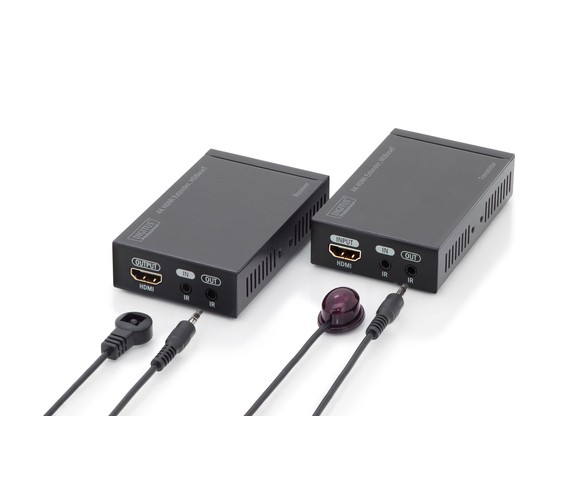

The DIGITUS 4K extender set, HDBaseT™ offers an extender solution up to 70m for the highest demands - for both high definition graphic display and also for absolutely fluent video playback. It transmits digital and audio signals up to a maximum distance of up to 70m. 4K content can be transmitted over up to 40m using a CAT 6 network cable. It consists of a transmitter as well as a receiver unit. Two bi-directional infrared units (sender, receiver) are also supplied, by means of which the remote control of the connected input source can be used.
- Extends the maximum length for HDMI cables to up to 70m whereby only a simple network cable is used between a sender and a receiver unit
- Extends 4K video contents to up to 40m with a CAT 6 cable
- Offers simple and quick distribution for HDMI video signals - position your monitors wherever you wish
- Supports 4K Ultra HD (30Hz), 4096 x 2160p resolution
- Uses HDBaseT™ technology
The DIGITUS 4K extender set, HDBaseT™ offers an extender solution up to 70m for the highest demands - for both high definition graphic display and also for absolutely fluent video playback. It transmits digital and audio signals up to a maximum distance of up to 70m. 4K content can be transmitted over up to 40m using a CAT 6 network cable. It consists of a transmitter as well as a receiver unit. Two bi-directional infrared units (sender, receiver) are also supplied, by means of which the remote control of the connected input source can be used.
Χαρακτηριστικά
Κατασκευαστής:
Digitus
Material:
- Metal
Type:
- AV transmitter & receiver
Design
LED indicators:
- Y
Product colour:
- Black
Display
3D:
- Y
HDCP:
- Y
Supported video modes:
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Inputs
HDMI in:
- 1
Remote (IR) input:
- 1
Logistics data
UK Trade Tariff code:
- 85176200
Networking
Cable types supported:
- Cat5e, Cat6, Cat6a, Cat7
Outputs
Number of HDMI outputs:
- 1
Packaging content
Manual:
- Y
Mounting kit:
- Y
Packaging data
Package volume:
- 2372.08 cm³
Performance
Maximum transfer distance:
- 40 m
Ports & interfaces
DC-in jack:
- Y
HDBaseT port:
- Y
Remote (IR) output:
- 1
Power
Output current:
- 2 A
Power consumption (typical):
- 8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- N
Printing
Maximum resolution:
- 4096 x 2160 pixels
Technical details
Country of origin:
- China
Dimensions (WxDxH):
- 66.5 x 98.5 x 23 mm
Video
Maximum refresh rate:
- 60 Hz
Weight & dimensions
Package depth:
- 199 mm
Package weight:
- 896 g
Package width:
- 149 mm
Multimedia
Audio formats supported:
- LPCM
