LevelOne GEMINI Zoom Dome IP Network Camera, 2-Megapixel, H.265, 4.3X Optical Zoom, two-way audio, IR LEDs, 802.3af PoE, Vandalproof, Indoor/Outdoor (FCS-4203)
Περιγραφή
The LevelOne FCS-4203 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP66 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-4203 offers 2-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
Χαρακτηριστικά
Κατασκευαστής:
LevelOne
Certification:
- CE/FCC
Mirror:
- Yes
Type:
- IP security camera
Audio
Audio input channels:
- 1 channels
Audio system:
- 2-way
Camera
Field of view (FOV) angle:
- 112°
Minimum illumination:
- 0.014 lx
Optical zoom:
- 4.3x
Design
Form factor:
- Dome
IK code:
- IK10
International Protection (IP) code:
- IP66
LED indicators:
- Power
Placement supported:
- Indoor & outdoor
Product colour:
- White
Protection features:
- Vandal proof
Display
Supported graphics resolutions:
- 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Image sensor
Optical sensor size:
- 25.4 / 3 mm (1 / 3\")
Progressive scan:
- Yes
Sensor type:
- CMOS
Total megapixels:
- 2 MP
Lens system
Focus adjustment:
- 1.4
Number of lenses:
- 1
Logistics data
Harmonized System (HS) code:
- 85258900
Master (outer) case gross weight:
- 14.6 kg
Master (outer) case height:
- 504 mm
Master (outer) case length:
- 372 mm
Master (outer) case width:
- 365 mm
Products per master (outer) case:
- 8 pc(s)
Management features
Quality of Service (QoS) support:
- Yes
Networking
Browser supported:
- Internet Explorer 9
Cabling technology:
- 10/100Base-T(X)
Ethernet LAN:
- Yes
Networking standards:
- IEEE 802.3af
Web browser:
- Yes
Wi-Fi:
- No
Night vision
LED type:
- IR
Night vision:
- Yes
Night vision distance:
- 30 m
Operational conditions
Operating relative humidity (H-H):
- 0 - 95%
Operating temperature (T-T):
- -30 - 60 °C
Other features
Ethernet interface type:
- Fast Ethernet
Packaging content
Number of cameras:
- 1
Resource CD:
- Yes
Screws included:
- Yes
Packaging data
Package type:
- Box
Performance
Audio output channels:
- 1 channels
Data transfer rate:
- 16 Mbit/s
Day/night mode:
- Yes
Focal length range:
- 2.8 - 12 mm
Infrared (IR) cut-off filter:
- Yes
Interface:
- RJ-45
Number of users:
- 16 user(s)

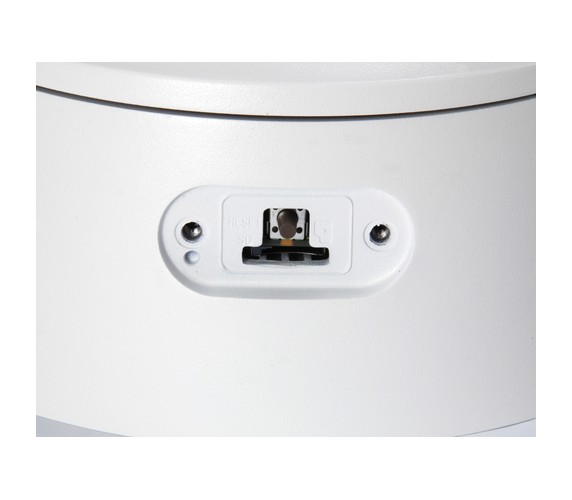

Reset button:
- Yes
Ports & interfaces
Bluetooth:
- No
Connectivity technology:
- Wired
DC-in jack:
- Yes
Ethernet LAN (RJ-45) ports:
- 1
Terminal block port:
- Yes
Power
DC output voltage:
- 12
Power consumption (max):
- 5.5 W
Power source type:
- PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- Yes
Printing
Maximum resolution:
- 1920 x 1080 pixels
Protocols
Supported network protocols:
- TCP/IP (IPv4), UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security
Anti-flicker:
- Yes
Digital watermark:
- Yes
Heartbeat:
- Yes
HTTPS encryption:
- Yes
IP address filtering:
- Yes
Password protection:
- Yes
Shutter
Camera shutter speed:
- 1/3 - 1/10000 s
Storage
Built-in HDD:
- No
Card reader integrated:
- Yes
Compatible memory cards:
- SD, SDHC, SDXC
Maximum memory card size:
- 128 GB
System requirements
Windows operating systems supported:
- Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Technical details
Compliance certificates:
- RoHS
Country of origin:
- China
Mounting type:
- Ceiling/wall
Voice codecs:
- MP2L2, G.711, G.722.1, G.726
Video
Frame rate:
- 30 fps
Full HD:
- Yes
Image quality adjustment:
- Brightness, Contrast, Saturation, Sharpness
Privacy masking:
- Yes
Weight & dimensions
Depth:
- 153.4 mm
Height:
- 153.4 mm
Package depth:
- 173 mm
Package height:
- 244 mm
Package weight:
- 1.82 kg
Package width:
- 174 mm
Weight:
- 1.29 kg
Width:
- 133.1 mm
Multimedia
Audio formats supported:
- G.711, G.726
Video compression formats:
- H.264, M-JPEG
Video formats supported:
- AVI
