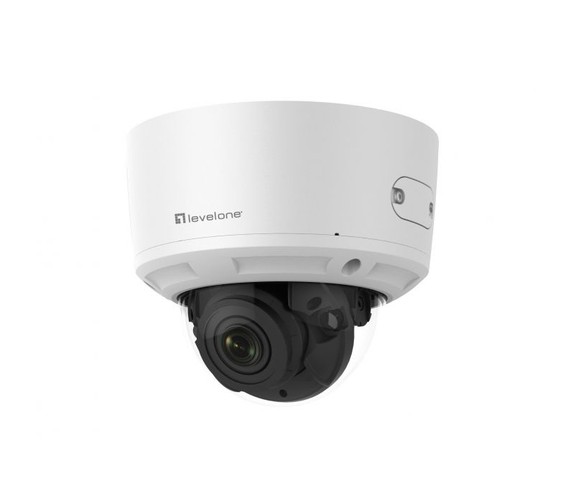

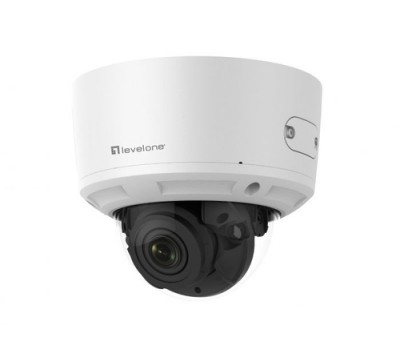

LevelOne Gemini Zoom IP Camera, 8-Mp, H.265, 802.3Af, PoE, IR Leds, Indoor/Outdoor, Two-Way Audio (FCS-3098)
Περιγραφή
The LevelOne FCS-3098 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP67 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3098 offers 8-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
Χαρακτηριστικά
Κατασκευαστής:
LevelOne
Type:
- IP security camera
Weatherproof:
- Yes
Audio
Audio system:
- 2-way
Camera
Lens viewing angle, diagonal:
- 38.5 - 146°
Lens viewing angle, horizontal:
- 35 - 115°
Lens viewing angle, vertical:
- 19 - 60°
Optical zoom:
- 4.3x
Zoom capability:
- Yes
Design
Form factor:
- Dome
IK code:
- IK10
International Protection (IP) code:
- IP67
LED indicators:
- Power
Placement supported:
- Indoor & outdoor
Product colour:
- White
Display
Supported graphics resolutions:
- 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2944 x 1656, 3840 x 2160
Image sensor
Optical sensor size:
- 25.4 / 2.5 mm (1 / 2.5\")
Progressive scan:
- Yes
Sensor type:
- CMOS
Total megapixels:
- 8 MP
Lens system
Maximum aperture number:
- 2
Logistics data
Harmonized System (HS) code:
- 8525890000
Master (outer) case gross weight:
- 15 kg
Master (outer) case height:
- 504 mm
Master (outer) case length:
- 372 mm
Master (outer) case width:
- 365 mm
Master (outer) cases per pallet (air):
- 18 pc(s)
Pallet gross length:
- 80 cm
Pallet gross width:
- 120 cm
Products per master (outer) case:
- 12 pc(s)
Management features
Quality of Service (QoS) support:
- Yes
Web-based management:
- Yes
Networking
Ethernet LAN:
- Yes
Networking standards:
- IEEE 802.3af
Security algorithms:
- EAP-LEAP, EAP-MD5, EAP-TLS, HTTPS, TLS
Wi-Fi:
- No
Night vision
Night vision:
- Yes
Night vision distance:
- 30 m
Operational conditions
Operating temperature (T-T):
- -30 - 60 °C
Storage temperature (T-T):
- 0 - 95 °C
Packaging content
Number of cameras:
- 1
Screws included:
- Yes
Packaging data
Package type:
- Box
Performance
Focal length range:
- 2.8 - 12 mm
Infrared (IR) cut-off filter:
- Yes
Ports & interfaces
Bluetooth:
- No
Connectivity technology:
- Wired
Ethernet LAN (RJ-45) ports:
- 1
Terminal block port:
- Yes
Power
DC output voltage:
- 12
Power consumption (max):
- 12.9 W
Power consumption (typical):
- 11.5 W
Power source type:
- DC, PoE
Printing
Maximum resolution:
- 3840 x 2160 pixels
Protocols
Supported network protocols:
- TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6
Security
Active tampering alarm:
- Yes
Alert notification type:
- E-mail, Snapshot alert message, Text alert message
Digital watermark:
- Yes
Intelligent Video Surveillance (IVS) system features:
- Abandoned object, Crossing line, Face detection, Intrusion, Missing object, Scene change
IP address filtering:
- Yes
Password protection:
- Yes
Video motion detection:
- Yes
Shutter
Camera shutter speed:
- 1/3 - 1/100000 s
Storage
Built-in HDD:
- No
Card reader integrated:
- Yes
Compatible memory cards:
- MicroSDHC, MicroSDXC
Maximum memory card size:
- 128 GB
Technical details
Country of origin:
- China
Mounting type:
- Ceiling
Pallet height (air):
- 152 cm
Sustainability compliance:
- Yes
Voice codecs:
- G.711a, G.711u, G.722.1, G.726, MP2L2
Video
Digital Wide Dynamic Range (DWDR):
- Yes
Image quality adjustment:
- Brightness, Contrast, Saturation, Sharpness
Weight & dimensions
Depth:
- 153.4 mm
Height:
- 153.4 mm
Package depth:
- 173 mm
Package height:
- 244 mm
Package weight:
- 1.42 kg
Package width:
- 174 mm
Weight:
- 1.29 kg
Width:
- 133.1 mm
Multimedia
Video compression formats:
- H.264, H.265
