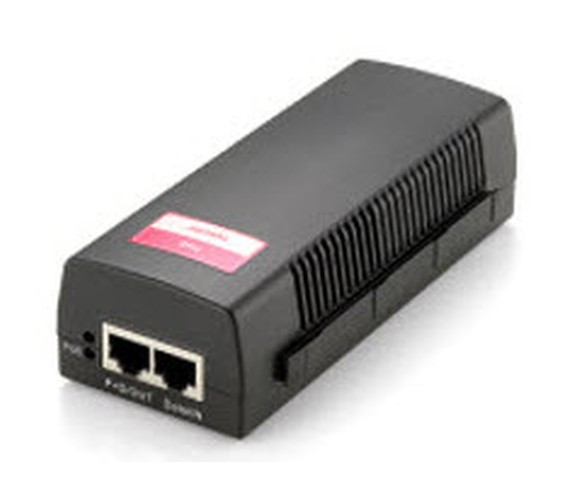

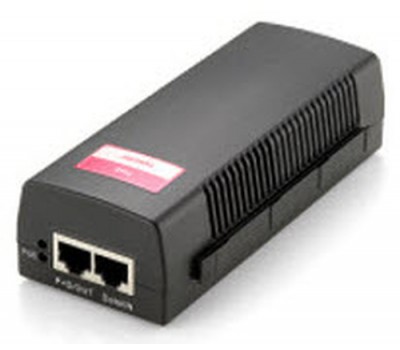

LevelOne PoE Injector, 15.4W (POI-2002)
Περιγραφή

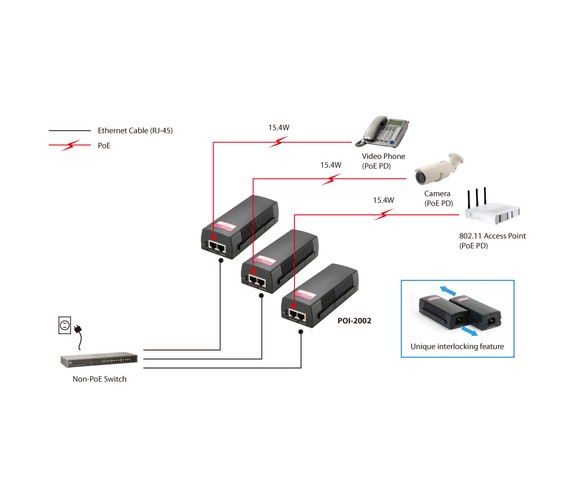

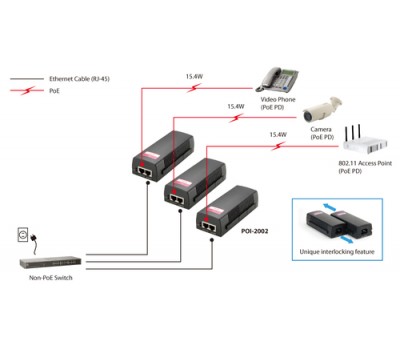

The LevelOne POI-2002 is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 15.4W and the data that comes from a non-PoE switch are merged together and then transmitted to the 802.3af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches. Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables, therefore these devices may be installed in hard-to-reach areas like ceilings where there are no any outlets or electrical wiring nearby.
- Minimize the need for a bulky power adapter and power line
- Delivering power and data to equipment via a single Ethernet cable
- Internal power supply
- High safety with surge protection
- Remote power feeding up to 100 meters
- PnP, Light Weight and compact size

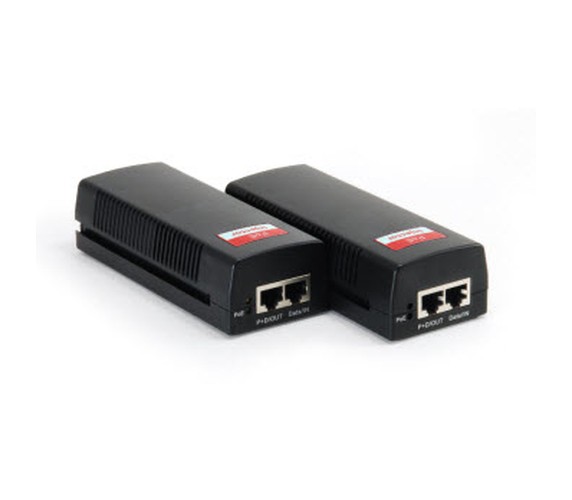

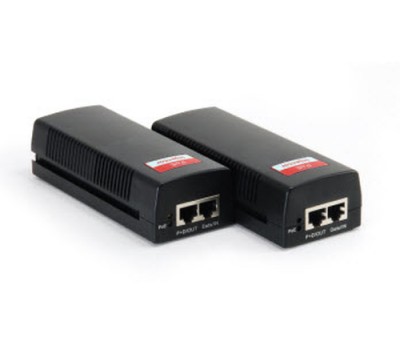

- Unique interlocking feature for easy installation
- Minimize the need for a bulky power adapter and power line
- Delivering power and data to equipment via a single Ethernet cable
- Internal power supply
- High safety with surge protection
- Remote power feeding up to 100 meters
- PnP, Light Weight and compact size
- Unique interlocking feature for easy installation
Χαρακτηριστικά
Κατασκευαστής:
LevelOne
Certification:
- FCC Part 15, CE, RoHS
Design
LED indicators:
- PoE, Power
Product colour:
- Black
Logistics data
Harmonized System (HS) code:
- 85044095
Networking
Ethernet LAN data rates:
- 10,100 Mbit/s
Networking standards:
- IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Operational conditions
Operating relative humidity (H-H):
- 5 - 95%
Operating temperature (T-T):
- 0 - 45 °C
Storage relative humidity (H-H):
- 5 - 95%
Storage temperature (T-T):
- 0 - 70 °C
Other features
Ethernet interface type:
- Fast Ethernet
Packaging content
Number of products included:
- 1 pc(s)
Ports & interfaces

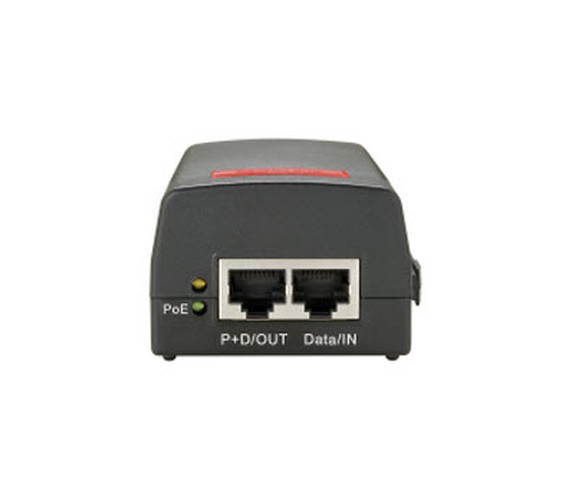

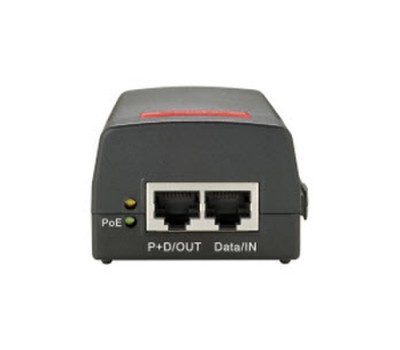

Ethernet LAN (RJ-45) ports:
- 2
Power
AC adapter frequency:
- 50/60 Hz

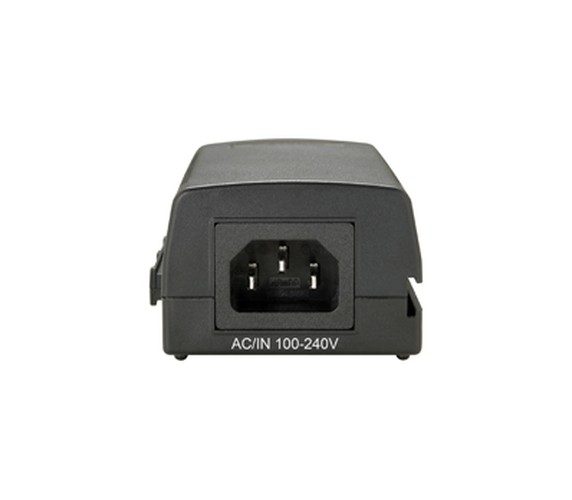

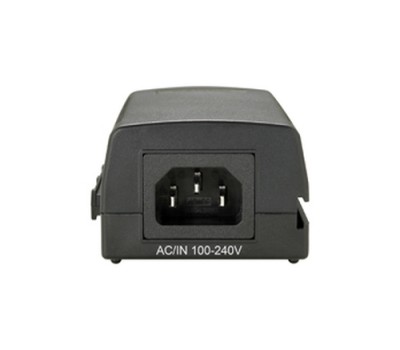

AC adapter input voltage:
- 100 - 240 V
Input current:
- 0.8 A
Output current:
- 0.3 A
Power consumption (max):
- 15.4 W
Power over Ethernet (PoE) voltage:
- 52 V
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- Yes
Technical details
Country of origin:
- China
Weight & dimensions
Depth:
- 35.5 mm
Height:
- 173.5 mm
Package depth:
- 125 mm
Package height:
- 210 mm
Package weight:
- 450 g
Package width:
- 55 mm
Weight:
- 280 g
Width:
- 55 mm
