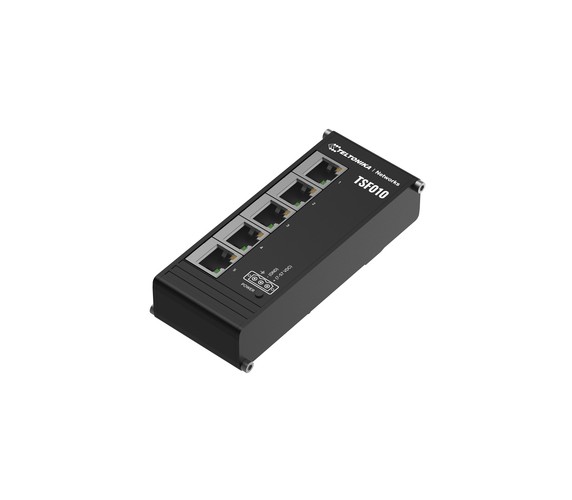

Teltonika NETWORKS TSF010 Flat Ethernet Switch Unmanaged Fast Ethernet (10/100) DIN rail Black (TSF010000000)
Περιγραφή
The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.
Χαρακτηριστικά
Κατασκευαστής:
Teltonika
Data transmission
Jumbo frames:
- 9216
Jumbo frames support:
- Yes
MAC address table:
- 2048 entries
Switching capacity:
- 10 Gbit/s
Design
DIN rail mounting:
- Yes
Form factor:
- DIN rail
Housing material:
- Aluminium
International Protection (IP) code:
- IP30
Product colour:
- Black
Rack mounting:
- No
Stackable:
- No
Management features
Switch type:
- Unmanaged
Networking
10G support:
- No
Auto MDI/MDI-X:
- Yes
Full duplex:
- Yes
Networking standards:
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- -40 - 75 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 5
Basic switching RJ-45 Ethernet ports type:
- Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity:
- 5
Power
Input voltage:
- 7 - 57 V
Power consumption (max):
- 1.5 W
Power consumption (typical):
- 1 W
Power source:
- DC
Power supply included:
- No
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- No
Weight & dimensions
Depth:
- 50 mm
Height:
- 28 mm
Weight:
- 142 g
Width:
- 113 mm
