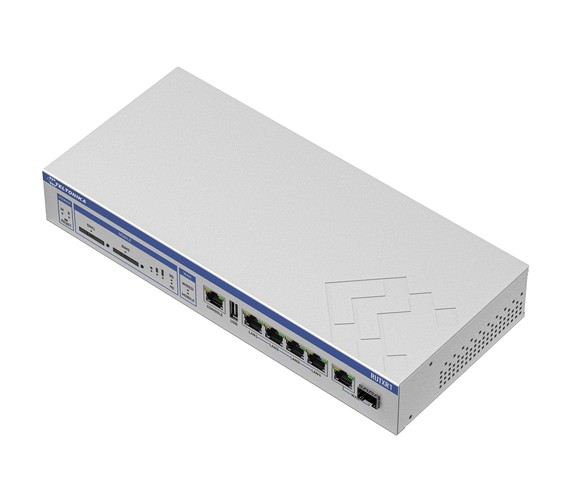

Teltonika RUTXR1 Cellular network router (RUTXR1000000)
Περιγραφή
GIGABIT ETH
5 x Gigabit Ethernet ports
DUAL SIM
With auto failover, backup WAN and other switching scenarios
SFP
SFP port for long-range Fiber-optic communication
RMS
Compatible with Teltonika Remote Management System
WIFI
Wave-2 802.11ac Dual Band WIFI
4G LTE CAT 6
Cellular speeds up to 300Mbps with Carrier Aggregation
RUTXR1 is our first-ever rack-mounted LTE Cat6 router with redundant power supplies and WAN interfaces, which can be conveniently placed in a server cabinet. It is equipped with dual SIM, USB, and Wave-2 802.11ac Dual Band WIFI. But what makes this product stand out from the rest of Teltonika Networks products are the SFP WAN and dedicated console ports. The unique feature set of this product allows using it as a primary product in a small or home office with LTE backup capabilities, powerful WiFi, and no need for an additional SFP to Ethernet converter.
This feature-rich device is powered by RutOS and is a perfect choice, where a speedy and ultra-reliable connection is required!
5 x Gigabit Ethernet ports
DUAL SIM
With auto failover, backup WAN and other switching scenarios
SFP
SFP port for long-range Fiber-optic communication
RMS
Compatible with Teltonika Remote Management System
WIFI
Wave-2 802.11ac Dual Band WIFI
4G LTE CAT 6
Cellular speeds up to 300Mbps with Carrier Aggregation
RUTXR1 is our first-ever rack-mounted LTE Cat6 router with redundant power supplies and WAN interfaces, which can be conveniently placed in a server cabinet. It is equipped with dual SIM, USB, and Wave-2 802.11ac Dual Band WIFI. But what makes this product stand out from the rest of Teltonika Networks products are the SFP WAN and dedicated console ports. The unique feature set of this product allows using it as a primary product in a small or home office with LTE backup capabilities, powerful WiFi, and no need for an additional SFP to Ethernet converter.
This feature-rich device is powered by RutOS and is a perfect choice, where a speedy and ultra-reliable connection is required!
Χαρακτηριστικά
Κατασκευαστής:
Teltonika
Wi-Fi frequency:
- 5 GHz
Antenna
Antenna type:
- External
Detachable antenna(s):
- Yes
Cellular interface
Number of SIM cards:
- 2
Design
Housing material:
- Steel
LED indicators:
- Data, Power, Signal strength, Status, WAN
Product colour:
- Grey
Ethernet LAN features
Ethernet LAN interface type:
- Gigabit Ethernet
Hard drive
Device type:
- Cellular network router
Logistics data
Harmonized System (HS) code:
- 85176990
Management features
Web-based management:
- Yes
Messaging
Short Message Service (SMS):
- Yes
Networking
3G standards:
- DC-HSDPA, HSUPA, WCDMA
4G standard:
- LTE
Auto MDI/MDI-X:
- Yes
Data network:
- 3G, 4G, HSUPA, LTE, WCDMA
DHCP client:
- Yes
DHCP server:
- Yes
Ethernet LAN:
- Yes
Ethernet LAN data rates:
- 10,100,1000 Mbit/s
IP routing:
- Yes
Network address translation (NAT):
- Yes
Networking standards:
- IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Port forwarding:
- Yes
Security algorithms:
- AES-CCMP, HTTPS, SSH, SSL/TLS, TLS, WEP, WPA2-EAP, WPA2-Enterprise, WPA2-PSK
SIM card type:
- MiniSIM
VPN support:
- DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
Wi-Fi:
- Yes
Wi-Fi standards:
- 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Operational conditions
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- -40 - 75 °C
Other features
WLAN data transfer rates supported:
- 867 Mbit/s
Performance
Reset button:
- Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports:
- 5
Serial interface type:
- RS-232
USB 2.0 ports quantity:
- 1
USB port:
- Yes
USB port type:
- USB Type-A
Power
Output voltage:
- 9 - 50 V
Power source type:
- DC
Processor
Built-in processor:
- Yes
Processor frequency:
- 0.717 GHz
Protocols
DMZ support:
- Yes
Security
Firewall:
- Yes
URL filtering:
- Yes
Storage
Internal storage capacity:
- 0.256 GB
RAM capacity:
- 0.256 GB
RAM type:
- DDR3
Weight & dimensions
Depth:
- 122.6 mm
Height:
- 43.7 mm
Package depth:
- 60 mm
Package height:
- 175 mm
Package width:
- 355 mm
Weight:
- 1.05 kg
Width:
- 272 mm
