Περιγραφή
The latest generation of Wi-Fi technology brings faster speeds, less lag and higher capacity, enabling more simultaneous connections on your home network. Enjoy stable Wi-Fi connections, even in the kitchen and bedroom. High-Power FEM, 6 x Antennas, Beamforming and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices. HomeShield will record abnormal incoming traffic and the device will automatically block requests from enlisted IPs. Manage online time and block inappropriate content to keep your family safe online. 5400 Mbps wifi for faster browsing, streamings and downloading, all at the same time. Fully Featured wi-fi 6 equips with the top structure of 4t4r and he160 on the 5 ghz band to enable 4.8 gbps ultra-fast connection. Connect 200+ devicesSection supports mu-mimo and ofdma to reduce congestion and quadruple the average throughput. Extensive coverage 6 x antennas and beamforming ensure broad coverage. HomeShield tp-link's premium security services keep your home network safe with cutting-edge features for network and iot protection. More Vents, less heat improved vents area unleash the full power of the whole machine. USB Sharing 1 x usb 3.0 port enables easy media sharing and private cloud building. Easy Setup set up the router in minutes with tether app. Link Aggregation static link aggregation (lag) available with 2 x lan ports.
Χαρακτηριστικά
Κατασκευαστής:
TP-Link
Product type:
- Portable router
Antenna
Antennas quantity:
- 6
Design
Antenna design:
- External
Product colour:
- Black
Ergonomics
On/off switch:
- Yes
Ethernet LAN features
Ethernet LAN interface type:
- Gigabit Ethernet
Logistics data
Harmonized System (HS) code:
- 85176990
Management features
MU-MIMO technology:
- Yes
Quality of Service (QoS) support:
- Yes
Web-based management:
- Yes
Network
Media server:
- Yes
Number of guest networks (2.4 GHz):
- 1
Number of guest networks (5 GHz):
- 1
Port triggering:
- Yes
Support Samba (storage):
- Yes
Networking
Cabling technology:
- 10/100/1000Base-T(X)
DHCP client:
- Yes
Dynamic DNS (DDNS):
- Yes
Ethernet LAN:
- Yes
Ethernet LAN data rates:
- 10,100,1000 Mbit/s
Network address translation (NAT):
- Yes
Networking standards:
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
Port forwarding:
- Yes
Security algorithms:
- WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3
Top Wi-Fi standard:
- Wi-Fi 6 (802.11ax)
Wi-Fi standards:
- Wi-Fi 4 (802.11n), 802.11b, 802.11a, 802.11g, Wi-Fi 5 (802.11ac)
Operational conditions
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 5 - 90%
Storage temperature (T-T):
- -40 - 70 °C
Other features
Universal Plug and Play (UPnP):
- Yes
Packaging content
AC adapter included:
- Yes
Packaging content:
- 1 x TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black
Quick installation guide:
- Yes
Packaging data
Cables included:
- LAN (RJ-45)
Quantity per pack:
- 1 pc(s)
Performance
Built-in FTP server:
- Yes
Firmware upgradeable:
- Yes
Parental control:
- Yes
Reset button:
- Yes

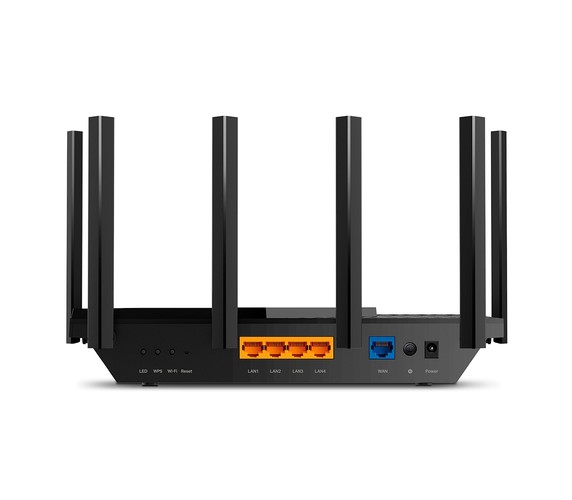

Ports & interfaces
Ethernet LAN (RJ-45) ports:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 1
USB port:
- Yes
WAN connection type:
- RJ-45
Power
Output current:
- 2.5 A
Output voltage:
- 12 V
Power source type:
- DC
Processor
Built-in processor:
- Yes
Processor cores:
- 3
Processor frequency:
- 1500 MHz
Protocols
DMZ support:
- Yes
Supported network protocols:
- IPv4, IPv6
Security
Access Control List (ACL):
- Yes
DoS attack prevention:
- Yes
Filtering:
- Yes
Firewall:
- Yes
IP address filtering:
- Yes
MAC address filtering:
- Yes
Stateful Packet Inspection (SPI):
- Yes
WPS push button:
- Yes
Technical details
Compliance certificates:
- RoHS, Federal Communications Commission (FCC), CE
Country of origin:
- Malaysia
Sustainability compliance:
- Yes
WAN connection
3G/4G USB modem compatibility:
- No
DSL WAN:
- No
Ethernet WAN:
- Yes
SIM card slot:
- No
Weight & dimensions
Depth:
- 147.2 mm
Height:
- 49.2 mm
Package depth:
- 310 mm
Package height:
- 38 mm
Package weight:
- 800 g
Package width:
- 124 mm
Width:
- 272.5 mm
Wireless LAN features
Modulation:
- 1024-QAM, OFDM
Wi-Fi band:
- Dual-band (2.4 GHz / 5 GHz)
WLAN data transfer rate (first band):
- 4804 Mbit/s
WLAN data transfer rate (max):
- 5400 Mbit/s
WLAN data transfer rate (second band):
- 574 Mbit/s
