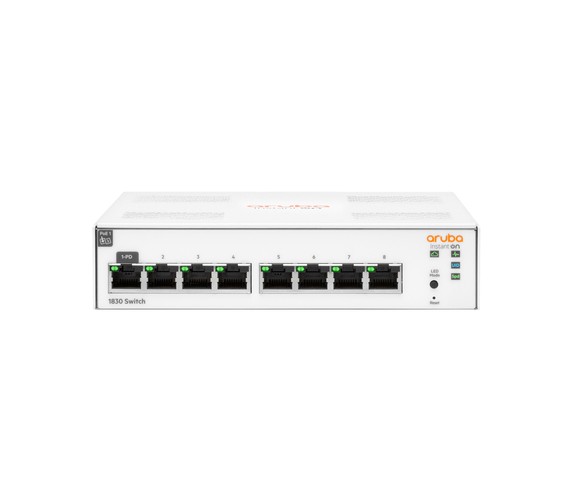

HPE Aruba Networking Aruba Instant On 1830 8G Managed L2 Gigabit Ethernet (10/100/1000) (JL810A#ABB)
Περιγραφή
Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.
This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.
Features
Gigabit Connectivity for Small Businesses
- Aruba Instant On 1830 Switch Series is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Classs 4 PoE models.
- Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
- With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices.
- 8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.
Simplify Network Deployment and Management
- The Aruba Instant On 1830 Switch Series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The switches can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
- Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.
Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1830 Switch Series is enhanced with security features such as IEEE 802.1x, Global Storm Control, TPM (Trusted Platform module) based security, and VLANs to guard your network from unwanted or unauthorized access.
- Leverage 802.1X with a RADIUS server to verify only known and authorized users can access your network.
- Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Better Energy Efficient Features for Reducing Environmental Footprint
- The Aruba Instant On 1830 Switch Series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
- Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.
- Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments.
- PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).
This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.
Features
Gigabit Connectivity for Small Businesses
- Aruba Instant On 1830 Switch Series is a smart-managed Layer 2 Ethernet switch series ready to deploy in six models comprising of 8-, 24-, 48-port for non-PoE and Classs 4 PoE models.
- Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
- With PoE models, you get up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port, 24-port and 48-port PoE models come with the power budget of 65W, 195W, and 370W respectively to support latest IoT devices.
- 8-port non-PoE switch can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.
Simplify Network Deployment and Management
- The Aruba Instant On 1830 Switch Series features easy-to-use, out-of-the-box, plug-and-play deployment.
- The switches can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
- Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.
Keep Your Business Protected with Integrated Security Features
- The Aruba Instant On 1830 Switch Series is enhanced with security features such as IEEE 802.1x, Global Storm Control, TPM (Trusted Platform module) based security, and VLANs to guard your network from unwanted or unauthorized access.
- Leverage 802.1X with a RADIUS server to verify only known and authorized users can access your network.
- Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Better Energy Efficient Features for Reducing Environmental Footprint
- The Aruba Instant On 1830 Switch Series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
- Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption.
- Features compact and fan-less 8-port and 24-port non-PoE models for acoustically-sensitive environments.
- PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).
Χαρακτηριστικά
Κατασκευαστής:
HPE
Data transmission
Jumbo frames support:
- Yes
Latency (1 Gbps):
- 2.8 µs
Latency (10-100 Mbps):
- 5.2 µs
MAC address table:
- 8000 entries
Switching capacity:
- 16 Gbit/s
Throughput:
- 11.9 Mpps
Design
Rack mounting:
- Yes
Logistics data
Harmonized System (HS) code:
- 85176990
Management features
Cloud-managed:
- Yes
Quality of Service (QoS) support:
- Yes
Switch layer:
- L2
Switch type:
- Managed
Web-based management:
- Yes
Memory
Memory type:
- SDRAM
Network
Half duplex:
- Yes
Networking
10G support:
- No
Auto MDI/MDI-X:
- Yes
Auto-sensing:
- Yes
Flow control support:
- Yes
Full duplex:
- Yes
Link aggregation:
- Yes
Networking standards:
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Port mirroring:
- Yes
Spanning tree protocol:
- Yes
Operational conditions
Operating relative humidity (H-H):
- 15 - 95%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 15 - 95%
Storage temperature (T-T):
- -40 - 70 °C
Performance
Auto-negotiation:
- Yes
Packet buffer memory:
- 1.5 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 8
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity:
- 0
Installed SFP+ modules quantity:
- 0
Power
AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 100 - 240 V
Power consumption (max):
- 5.9 W
Power source:
- AC
Power supply included:
- Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- No
Processor
Built-in processor:
- Yes
Processor frequency:
- 800 MHz
Processor model:
- ARM Cortex-A9
Security
DHCP features:
- DHCP client
IGMP snooping:
- Yes
SSH/SSL support:
- Yes
Storage
Flash memory:
- 256 MB
Internal memory:
- 512 MB
Virtual LAN features
VLAN support:
- Yes
Weight & dimensions
Depth:
- 157 mm
Height:
- 39 mm
Weight:
- 770 g
Width:
- 172.8 mm
