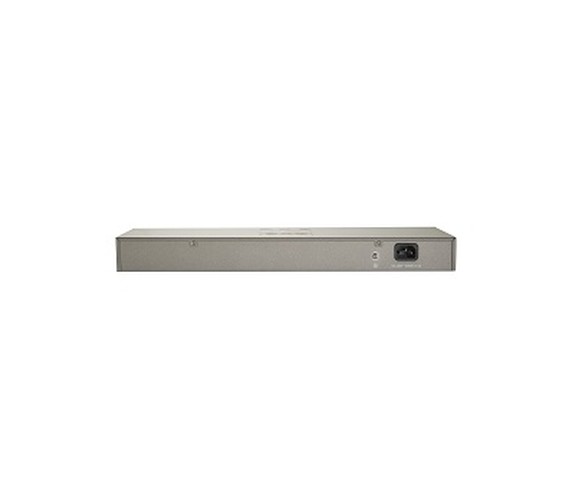

LevelOne 24-Port Fast Ethernet Switch (FSW-2450)
Περιγραφή
Product Overview
The FSW-2450 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.
Advanced Networking Features
The LevelOne FSW-2450 is a wire-speed, nonblocking 24 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 4.8Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX.
The 24-port Fast Ethernet Switch utilizes packet store-and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.
Compact Design
The FSW-2450 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.
Quick Configuration and Easy Maintenance
The LevelOne FSW-2450 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 24 port Fast Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network troubleshooting.
The FSW-2450 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.
Advanced Networking Features
The LevelOne FSW-2450 is a wire-speed, nonblocking 24 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 4.8Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX.
The 24-port Fast Ethernet Switch utilizes packet store-and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.
Compact Design
The FSW-2450 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.
Quick Configuration and Easy Maintenance
The LevelOne FSW-2450 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 24 port Fast Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network troubleshooting.
Χαρακτηριστικά
Κατασκευαστής:
LevelOne
Certification:
- FCC Class A, CE, RoHS
Data transmission
MAC address table:
- 8192 entries
Store-and-forward:
- Y
Switching capacity:
- 4.8 Gbit/s
Design
LED indicators:
- Activity, Link, Power
Product colour:
- Black
Rack mounting:
- Y
Logistics data
Master (outer) case gross weight:
- 11.6 kg
Master (outer) case height:
- 24 cm
Master (outer) case length:
- 50 cm
Master (outer) case width:
- 40.5 cm
Management features
Quality of Service (QoS) support:
- Y
Switch type:
- Unmanaged
Networking
10G support:
- N
Auto MDI/MDI-X:
- Y
Cable types supported:
- Cat5
Flow control support:
- Y
Full duplex:
- Y
MAC address auto-learning supported:
- Y
Networking standards:
- IEEE 802.1p,IEEE 802.3,IEEE 802.3u,IEEE 802.3z
Rate limiting:
- Y
Operational conditions
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 5 - 95%
Storage temperature (T-T):
- -40 - 70 °C
Packaging content
Quick start guide:
- Y
Rack mount kit:
- Y
Packaging data
Cables included:
- AC
Performance
Auto-negotiation:
- Y
Maximum cable length:
- 100 m
Packet buffer memory:
- 0.16 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 24
Basic switching RJ-45 Ethernet ports type:
- Fast Ethernet (10/100)
Copper ethernet cabling technology:
- 10BASE-T,100BASE-TX
Power
AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 100 - 240 V
Power connector:
- DC-in jack
Power consumption (typical):
- 10 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- N
Protocols
Switching protocols:
- CSMA, CD
Technical details
Country of origin:
- China
Weight & dimensions
Depth:
- 440 mm
Height:
- 44 mm
Package depth:
- 486 mm
Package height:
- 77 mm
Package weight:
- 2.13 kg
Package width:
- 224 mm
Weight:
- 1.45 kg
Width:
- 140 mm
