Περιγραφή

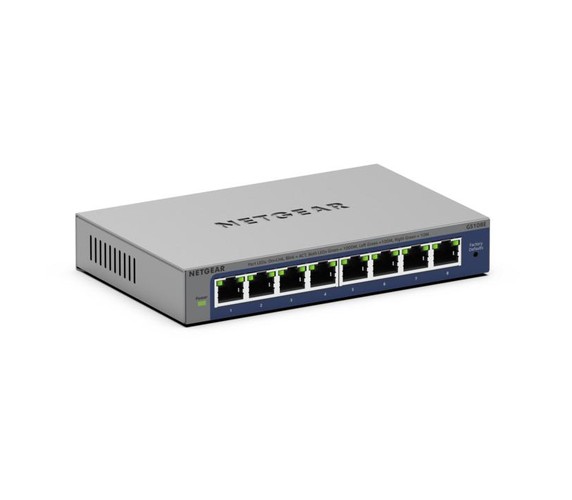

8-Port Gigabit Plus Switch
On top of the plug-n-play Gigabit Ethernet connectivity, the NETGEAR GS108E switch offers essential networking features such as VLAN, QoS, IGMP Snooping, rate limiting, traffic monitoring and more. NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.
On top of the plug-n-play Gigabit Ethernet connectivity, the NETGEAR GS108E switch offers essential networking features such as VLAN, QoS, IGMP Snooping, rate limiting, traffic monitoring and more. NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.
Χαρακτηριστικά
Κατασκευαστής:
Netgear
Data transmission
MAC address table:
- 4000 entries
Switching capacity:
- 16 Gbit/s
Design
LED indicators:
- Activity, Link, Power, Speed, System
Product colour:
- Grey
Management features
Switch layer:
- L2/L3
Switch type:
- Unmanaged
Multicast features
Multicast support:
- Yes
Number of multicast groups filtered:
- 128
Networking
10G support:
- No
Cable types supported:
- Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Ethernet LAN data rates:
- 10,100,1000 Mbit/s
Networking standards:
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Port mirroring:
- Yes
Operational conditions
Heat dissipation:
- 8.9 BTU/h
Operating altitude:
- 0 - 3000 m
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Storage temperature (T-T):
- -20 - 70 °C
Performance
Fanless:
- Yes
Mean time between failures (MTBF):
- 2463431 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 8
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Power
DC input voltage:
- 12 V
Input current:
- 1.5 A
Power consumption (max):
- 3.7 W
Power source:
- DC
Power supply included:
- Yes
Security
Access Control List (ACL):
- Yes
Virtual LAN features
Number of VLANs:
- 64
Virtual LAN features:
- Port-based VLAN, Tagged VLAN
VLAN support:
- Yes
Weight & dimensions
Depth:
- 101 mm
Height:
- 29 mm
Weight:
- 508 g
Width:
- 158 mm
