Περιγραφή

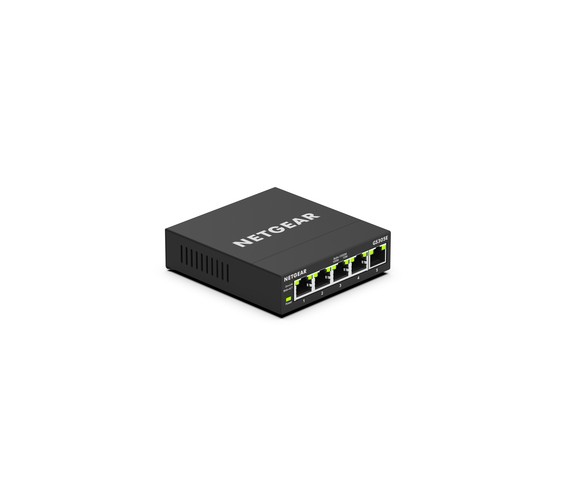

NETGEAR ® Smart Managed Plus Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. Smart Managed Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.
Χαρακτηριστικά
Κατασκευαστής:
Netgear
Data transmission
Jumbo frames:
- 9000
Jumbo frames support:
- Yes
MAC address table:
- 8000 entries
Store-and-forward:
- Yes
Switching capacity:
- 10 Gbit/s
Design
LED indicators:
- Activity, Link, Power, Speed, System
Product colour:
- Black
Rack mounting:
- No
Logistics data
Harmonized System (HS) code:
- 85176990
Master (outer) case gross weight:
- 10.2 kg
Master (outer) case height:
- 280 mm
Master (outer) case length:
- 497 mm
Master (outer) case width:
- 344 mm
Products per master (outer) case:
- 15 pc(s)
Management features
Quality of Service (QoS) support:
- Yes
Switch type:
- Managed
Virtual Cable Test (VCT):
- Yes
Web-based management:
- Yes
Networking
Flow control support:
- Yes
Link aggregation:
- No
Networking standards:
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Port mirroring:
- Yes
Rate limiting:
- Yes
Operational conditions
Non-operating altitude:
- 0 - 3000 m
Operating altitude:
- 0 - 3000 m
Operating relative humidity (H-H):
- 0 - 90%
Operating temperature (T-T):
- 0 - 50 °C
Storage relative humidity (H-H):
- 0 - 95%
Storage temperature (T-T):
- -20 - 70 °C
Packaging data
Package type:
- Box
Performance
Buffer size:
- 128 KB
Mean time between failures (MTBF):
- 2531294 h
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 5
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- No
Security
DHCP features:
- DHCP client
DoS attack prevention:
- Yes
IGMP snooping:
- Yes
Loop protection:
- Yes
Password protection:
- Yes
Virtual LAN features
Number of VLANs:
- 64
Virtual LAN features:
- Tagged VLAN, Port-based VLAN
VLAN support:
- Yes
Weight & dimensions
Depth:
- 100 mm
Height:
- 27 mm
Package depth:
- 237 mm
Package height:
- 61 mm
Package weight:
- 600 g
Package width:
- 153 mm
Weight:
- 250 g
Width:
- 94 mm
