What This Product Does

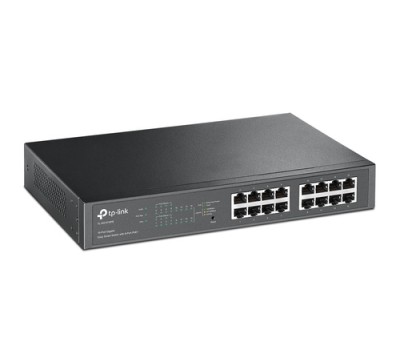

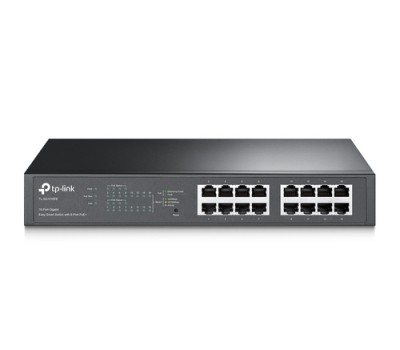

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
Χαρακτηριστικά
Κατασκευαστής:
TP-Link
Data transmission
Forwarding rate:
- 23.8 Mpps
Jumbo frames:
- 10000
Jumbo frames support:
- Yes
MAC address table:
- 8000 entries
Number of queues:
- 4
Store-and-forward:
- Yes
Switching capacity:
- 32 Gbit/s
Design
Form factor:
- 1U
Housing material:
- Metal
LED indicators:
- Yes
Number of fans:
- 1 fan(s)
Product colour:
- Black
Rack mounting:
- Yes
Stackable:
- No
Management features
Quality of Service (QoS) support:
- Yes
Switch layer:
- L2
Switch type:
- Managed
Web-based management:
- Yes
Networking
10G support:
- No
Auto MDI/MDI-X:
- Yes
Broadcast storm control:
- Yes
Cable types supported:
- Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support:
- Yes
Link aggregation:
- Yes
Networking standards:
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Port mirroring:
- Yes
Operational conditions
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 5 - 90%
Storage temperature (T-T):
- -40 - 70 °C
Packaging content
Rack mount kit:
- Yes
Resource CD:
- Yes
Packaging data
Cables included:
- AC
Package type:
- Box
User guide:
- Yes
Performance
Auto-negotiation:
- Yes
Maximum cable length:
- 100 m
Packet buffer memory:
- 4.1 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 16
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology:
- 10BASE-T, 100BASE-TX, 1000BASE-T
Gigabit Ethernet (copper) ports quantity:
- 16
Power
AC input frequency:
- 50/60 Hz
AC input voltage:
- 100 - 240 V
Power connector:
- AC-in jack
Power consumption (max):
- 124.4 W
Power source:
- AC/PoE
Power supply included:
- Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- Yes
Power over Ethernet (PoE) power per port:
- 30 W
Power over Ethernet plus (PoE+) ports quantity:
- 8
Total Power over Ethernet (PoE) budget:
- 110 W
Security
IGMP snooping:
- Yes
System requirements
Compatible operating systems:
- Windows
Technical details
Compliance certificates:
- CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance:
- Yes
Virtual LAN features
Number of VLANs:
- 4000
Virtual LAN features:
- Tagged VLAN, Port-based VLAN
VLAN support:
- Yes
Weight & dimensions
Depth:
- 180 mm
Height:
- 44 mm
Package depth:
- 400 mm
Package height:
- 80 mm
Package weight:
- 2.28 kg
Package width:
- 250 mm
Width:
- 294 mm
