PoE Switches for Your Ultra Convenience

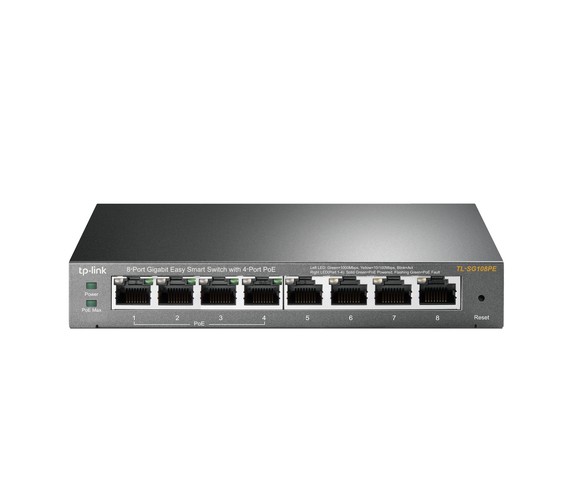

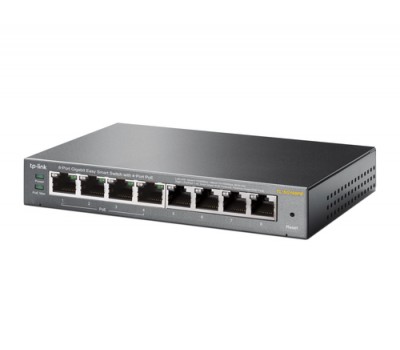

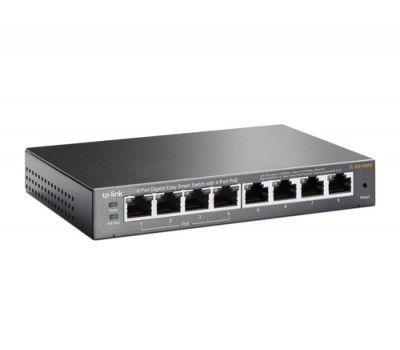

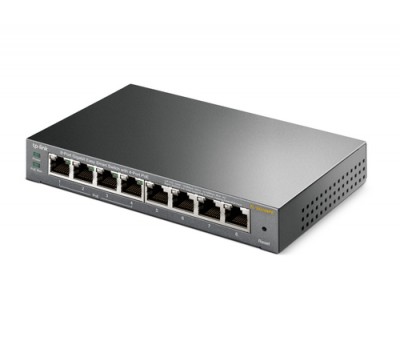

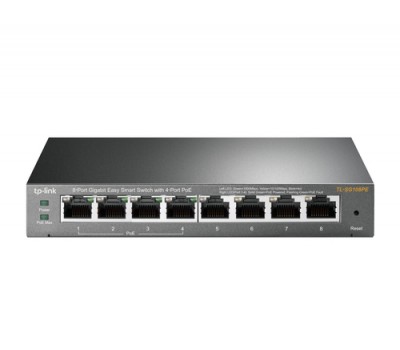

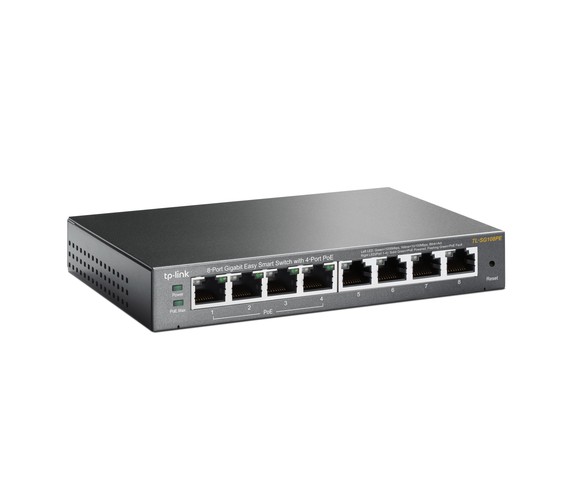

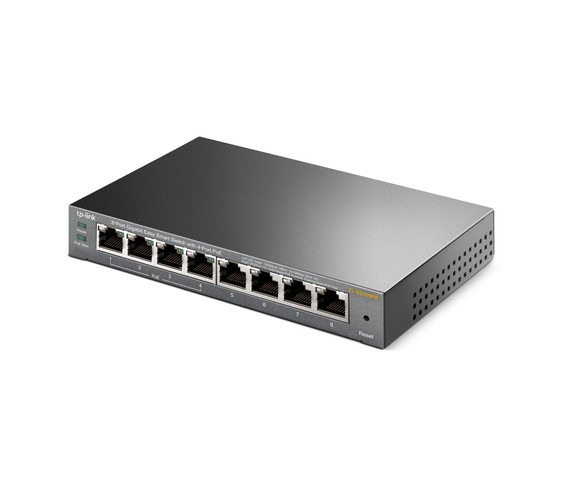

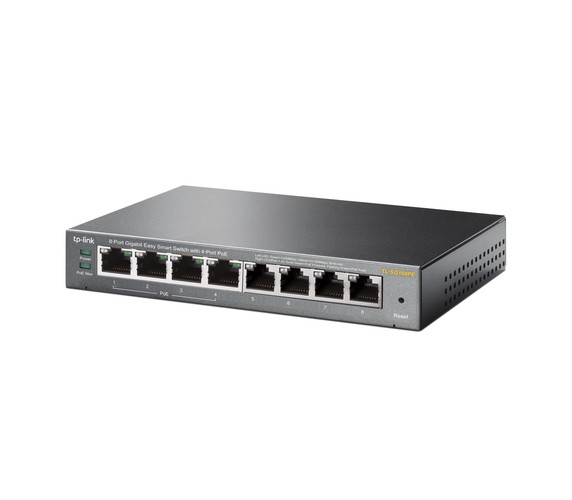

8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
8-Port Gigabit Easy Smart Switch with 4-Port PoE
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Χαρακτηριστικά
Κατασκευαστής:
TP-Link
Certification:
- FCC, CE, RoHS
Data transmission
Forwarding rate:
- 11.9 Mpps
Jumbo frames:
- 15000
Jumbo frames support:
- Yes
MAC address table:
- 4000 entries
Store-and-forward:
- Yes
Switching capacity:
- 16 Gbit/s
Design
LED indicators:
- Activity, Link, PoE, Power, Speed, Status
Product colour:
- Black
Logistics data
Harmonized System (HS) code:
- 85176990
Management features
Quality of Service (QoS) support:
- Yes
Switch layer:
- L2
Switch type:
- Managed
Web-based management:
- Yes
Networking
10G support:
- No
Auto MDI/MDI-X:
- Yes
Broadcast storm control:
- Yes
Cable types supported:
- Cat3, Cat4, Cat5, Cat5e, Cat6
Link aggregation:
- Yes
Networking standards:
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Port mirroring:
- Yes
Operational conditions
Heat dissipation:
- 256.19 BTU/h
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 5 - 95%
Storage temperature (T-T):
- -40 - 70 °C
Packaging data
Cables included:
- AC
Package type:
- Box
User guide:
- Yes
Performance
Auto-negotiation:
- Yes
Packet buffer memory:
- 1.5 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 8
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity:
- 8
Power
Input current:
- 1.25 A
Input voltage:
- 48 V
Power consumption (max):
- 65.2 W
Power source:
- DC
Power supply included:
- Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- Yes
Power over Ethernet (PoE) ports quantity:
- 4
Power over Ethernet (PoE) power per port:
- 15.4 W
Total Power over Ethernet (PoE) budget:
- 64 W
Security
IGMP snooping:
- Yes
Loop protection:
- Yes
Virtual LAN features
Number of VLANs:
- 32
Virtual LAN features:
- Port-based VLAN
VLAN support:
- Yes
Weight & dimensions
Depth:
- 101 mm
Height:
- 25 mm
Package depth:
- 196 mm
Package height:
- 121 mm
Package weight:
- 890 g
Package width:
- 131 mm
Width:
- 158 mm
