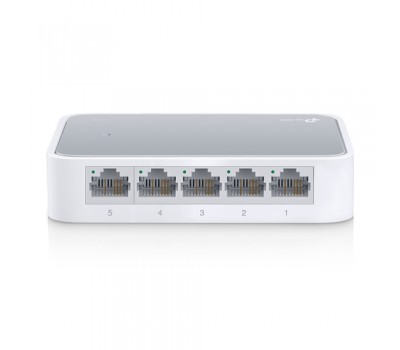

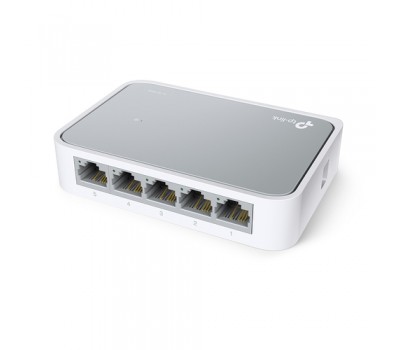

The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
Χαρακτηριστικά
Κατασκευαστής:
TP-Link
Certification:
- FCC, RoHS
Data transmission
MAC address table:
- 1000 entries
Store-and-forward:
- Yes
Switching capacity:
- 1.6 Gbit/s
Design
LED indicators:
- Yes
Product colour:
- White
Rack mounting:
- No
Management features
Quality of Service (QoS) support:
- Yes
Switch type:
- Managed
Web-based management:
- Yes
Networking
10G support:
- No
Auto MDI/MDI-X:
- Yes
Ethernet LAN data rates:
- 10,100 Mbit/s
Flow control support:
- Yes
Full duplex:
- Yes
Networking standards:
- IEEE 802.3u, IEEE 802.3x
Spanning tree protocol:
- Yes
Operational conditions
Heat dissipation:
- 6.38 BTU/h
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 5 - 90%
Storage temperature (T-T):
- -40 - 70 °C
Packaging content
AC adapter included:
- Yes
Packaging data
Cables included:
- AC
Package type:
- Box
User guide:
- Yes
Performance
Auto-negotiation:
- Yes
Fanless:
- Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 5
Basic switching RJ-45 Ethernet ports type:
- Fast Ethernet (10/100)
Copper ethernet cabling technology:
- 10BASE-T, 100BASE-T
Fast Ethernet (copper) ports quantity:
- 5
Power
AC input frequency:
- 50 Hz
AC input voltage:
- 220 V
DC input voltage:
- 5 V
Input current:
- 0.6 A
Power connector:
- DC-in jack
Power consumption (max):
- 1.87 W
Power consumption (typical):
- 1.87 W
Power source:
- DC
Power supply included:
- No
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- No
Protocols
Supported network protocols:
- CSMA/CD, TCP/IP
Technical details
Compliance certificates:
- CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance:
- Yes
Weight & dimensions
Depth:
- 70 mm
Height:
- 22 mm
Package depth:
- 108 mm
Package height:
- 85 mm
Package weight:
- 190 g
Package width:
- 91 mm
Width:
- 103.5 mm
