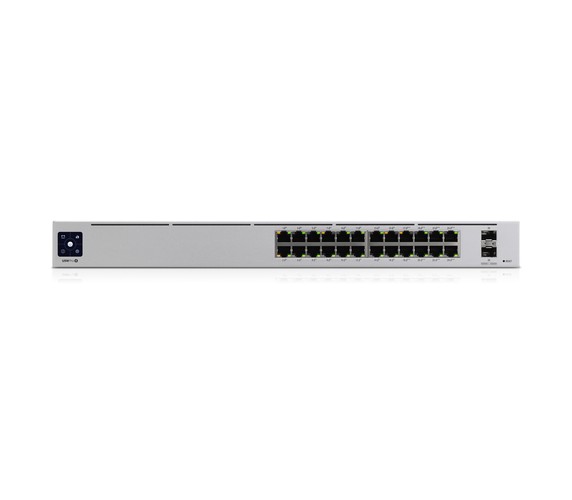

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver (USW-PRO-24-POE)
Περιγραφή
Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Χαρακτηριστικά
Κατασκευαστής:
Ubiquiti Networks
Certification:
- CE, FCC, IC
Data transmission
Forwarding rate:
- 65.472 Mpps
Jumbo frames support:
- Y
Static route:
- Y
Switching capacity:
- 88 Gbit/s
Throughput:
- 44000 Mpps
Design
Form factor:
- 1U
LED indicators:
- Activity,Link,PoE,Speed,System
Product colour:
- Silver
Rack mounting:
- Y
Management features
Switch layer:
- L2/L3
Switch type:
- Managed
Networking
10G support:
- Y
Auto MDI/MDI-X:
- Y
Auto-sensing:
- Y
Flow control support:
- Y
Full duplex:
- Y
Networking standards:
- IEEE 802.3af,IEEE 802.3at
Port mirroring:
- Y
Spanning tree protocol:
- Y
Operational conditions
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- -5 - 40 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 24
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity:
- 2
Power
AC input frequency:
- 50/60 Hz
AC input voltage:
- 100 - 240 V
DC input voltage:
- 52 V
Input current:
- 7.69 A
Number of power supply units:
- 1
Power supply included:
- Y
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- Y
Power over Ethernet (PoE) power per port:
- 64 W
Power over Ethernet plus (PoE+) ports quantity:
- 16
Total Power over Ethernet (PoE) budget:
- 400 W
Security
Authentication type:
- IEEE 802.1x,RADIUS
DHCP features:
- DHCP server
Virtual LAN features
VLAN support:
- Y
Weight & dimensions
Depth:
- 285.4 mm
Height:
- 43.7 mm
Weight:
- 4.3 kg
Width:
- 442.4 mm
