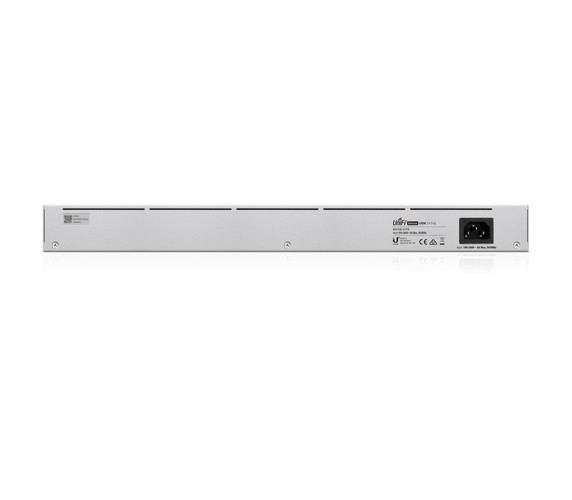

Ubiquiti UniFi 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver (USW-24-POE)
Περιγραφή
Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Χαρακτηριστικά
Κατασκευαστής:
Ubiquiti
Certification:
- CE, FCC, IC
Data transmission
Forwarding rate:
- 38.69 Mpps
Jumbo frames support:
- Yes
Static route:
- Yes
Switching capacity:
- 52 Gbit/s
Throughput:
- 26000 Mpps
Design
Form factor:
- 1U
LED indicators:
- Activity, Link, PoE, Speed, System
Product colour:
- Silver
Rack mounting:
- Yes
Logistics data
Harmonized System (HS) code:
- 85176990
Management features
Switch layer:
- L2/L3
Switch type:
- Managed
Networking
Auto MDI/MDI-X:
- Yes
Flow control support:
- Yes
Full duplex:
- Yes
Networking standards:
- IEEE 802.3af, IEEE 802.3at
Port mirroring:
- Yes
Spanning tree protocol:
- Yes
Operational conditions
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- -5 - 40 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 24
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
SFP module slots quantity:
- 2
Power
AC input frequency:
- 50 - 60 Hz
AC input voltage:
- 100 - 240 V
DC input voltage:
- 44 - 57 V
Power supply included:
- Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- Yes
Power over Ethernet (PoE) power per port:
- 32 W
Power over Ethernet plus (PoE+) ports quantity:
- 16
Total Power over Ethernet (PoE) budget:
- 92 W
Security
Authentication type:
- IEEE 802.1x, RADIUS
Virtual LAN features
VLAN support:
- Yes
Weight & dimensions
Depth:
- 200 mm
Height:
- 43.7 mm
Weight:
- 3 kg
Width:
- 442.4 mm
