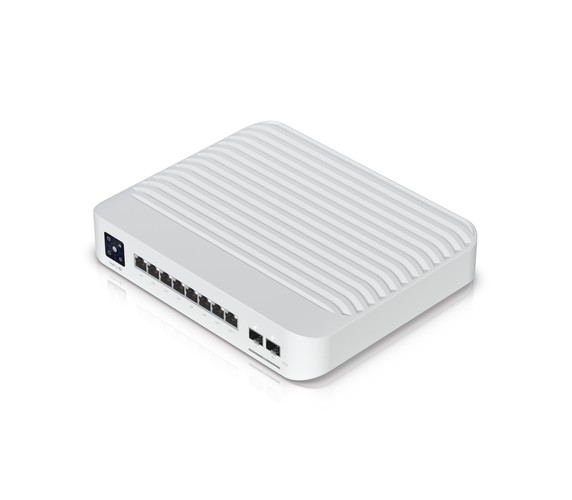

Ubiquiti UniFi USW-PRO-8-POE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White (USW-Pro-8-PoE)
Περιγραφή
An 8-port, Layer 3 switch with PoE+ and PoE++ output.
Χαρακτηριστικά
Κατασκευαστής:
Ubiquiti
Certification:
- CE, FCC, IC
Data transmission
Jumbo frames support:
- Yes
Static route:
- Yes
Switching capacity:
- 56 Gbit/s
Throughput:
- 28 Gbit/s
Design
Form factor:
- 1U
Housing material:
- Metal, Plastic
LED indicators:
- Activity, Link, PoE, Speed, System
Product colour:
- White
Management features
Switch layer:
- L2/L3
Switch type:
- Managed
Network
Half duplex:
- Yes
Networking
10G support:
- Yes
Auto MDI/MDI-X:
- Yes
Auto-sensing:
- Yes
Flow control support:
- Yes
Full duplex:
- Yes
Link aggregation:
- Yes
Networking standards:
- IEEE 802.3af, IEEE 802.3at
Port mirroring:
- Yes
Spanning tree protocol:
- Yes
Operational conditions
Operating relative humidity (H-H):
- 10 - 90%
Operating temperature (T-T):
- -5 - 45 °C
Packaging content
Manual:
- Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:
- 8
Basic switching RJ-45 Ethernet ports type:
- Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology:
- 10BASE-T, 10BASE-TX, 100BASE-FX, 100BASE-TX
SFP+ module slots quantity:
- 2
Power
AC input voltage:
- 100 - 240 V
Input current:
- 2 A
Number of power supply units:
- 1
Power source:
- AC/DC
Power supply included:
- Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE):
- Yes
Power over Ethernet (PoE) power per port:
- 60 W
Power over Ethernet 4PPoE (PoE++) ports quantity:
- 2
Power over Ethernet plus (PoE+) ports quantity:
- 6
Total Power over Ethernet (PoE) budget:
- 120 W
Security
Authentication:
- Port-based authentication
Authentication type:
- IEEE 802.1x, RADIUS
DHCP features:
- DHCP server
Technical details
Sustainability certificates:
- CE, Federal Communications Commission (FCC)
Sustainability compliance:
- Yes
Virtual LAN features
VLAN support:
- Yes
Weight & dimensions
Depth:
- 248 mm
Height:
- 44 mm
Weight:
- 2.1 kg
Width:
- 200 mm
