Περιγραφή
No compromise silence and performance
Silent Wings 4 120mm PWM high-speed combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 120mm PWM high-speed the perfect choice for the most demanding applications in high-end systems.
Silent Wings 4 120mm PWM high-speed combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 120mm PWM high-speed the perfect choice for the most demanding applications in high-end systems.
Χαρακτηριστικά
Κατασκευαστής:
be quiet!
Certification:
- CE / ROHS / RU / UKCA / TÜV / WEEE
Maximum airflow:
- 76.7 cfm
Number of clips:
- 4
Suitable location:
- Computer case
Type:
- Fan
Design
Product colour:
- Black
Logistics data
Harmonized System (HS) code:
- 84733080
Products per shipping (inner) case:
- 40 pc(s)
Shipping (inner) case gross weight:
- 15 kg
Shipping (inner) case height:
- 37.5 cm
Shipping (inner) case length:
- 43.2 cm
Shipping (inner) case width:
- 38.7 cm

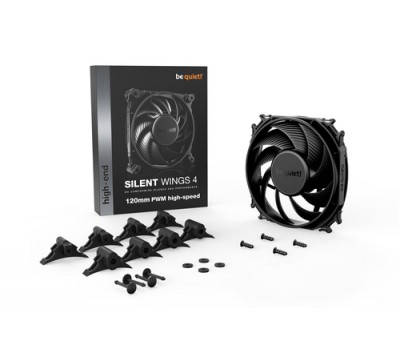

Packaging content
Number of screws:
- 4
Screws included:
- Yes
Packaging data
Quantity per pack:
- 1 pc(s)
Performance
Airflow:
- 130.31 m³/h
Bearing type:
- Fluid dynamic bearing (FDB)
Fan connector:
- 4-pin
Fan diameter:
- 12 cm
Maximum air pressure:
- 3.96 mmH2O
Mean time between failures (MTBF):
- 300000 h
Noise level (high speed):
- 31.2 dB
Pulse-width modulation (PWM) support:
- Yes
Rotational speed (max):
- 2500 RPM
Power
Maximum current:
- 0.22 A
Power consumption (typical):
- 2.4 W
Rated current:
- 0.2 A
Rated voltage:
- 12 V
Voltage:
- 5 - 13.2 V
Technical details
Country of origin:
- China
Weight & dimensions
Cable length:
- 0.5 m
Depth:
- 120 mm
Height:
- 25 mm
Package depth:
- 192 mm
Package height:
- 31 mm
Package weight:
- 346 g
Package width:
- 141 mm
Weight:
- 190 g
Width:
- 120 mm
