be quiet! PURE BASE 500 FX Black Midi Tower (BGW43)
Περιγραφή
IMPRESSIVE LIGHTING, EXCEPTIONAL AIRFLOW
The be quiet! Pure Base 500 FX Black offers impressive lighting with multiple modes and maximum airflow for high cooling performance.
IMPRESSIVE LIGHTING
Lots of illumination possibilities
Light Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front and inside the case offer multiple colors and modes to individualize the look from the inside as well as from the outside. You can optionally synchronize lighting with your motherboard or ARGB controller.
PERFECT AIRFLOW
Thanks to 4 PWM fans
With optimization for maximum airflow, the Light Wings PWM fan is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure the fan to provide the performance that is needed, even in demanding configurations.
HIGH AIRFLOW AND MAXIMUM PERFORMANCE
All parts optimized for airflow and performance
The extremely permeable front is perfect for everyone who strives for maximum performance with water-cooled systems in particular. The airflow-optimized top cover underlines the performance orientated claim of Pure Base 500 FX Black. The dust filters on the front panel and bottom can be easily removed for cleaning.
ONE HUB, MANY POSSIBILITIES
Synchronization of up to 6 ARGB- and PWM-components
The ARGB-PWM-Hub enables synchronization of up to 6 PWM fans and 6 ARGB components: Preinstalled on the backside of the motherboard tray it supports a neat interior and cable management.
MODERN I/O PORT
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of latest hardware. There is also a switch on the front panel to control the interior and exterior LEDs.
SOPHISTICATED DESIGN
Generous space for high-end hardware
The Pure Base 500 FX Black provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Radiators of up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator of up to 240mm.
EYE-CATCHING FEATURES
And great cable routing possibilities
Pure Base 500 FX Black offers various options for installing up to 4 SSDs in total. 2 can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.
FUNCTIONAL PSU SHROUD
Offering a neat interior

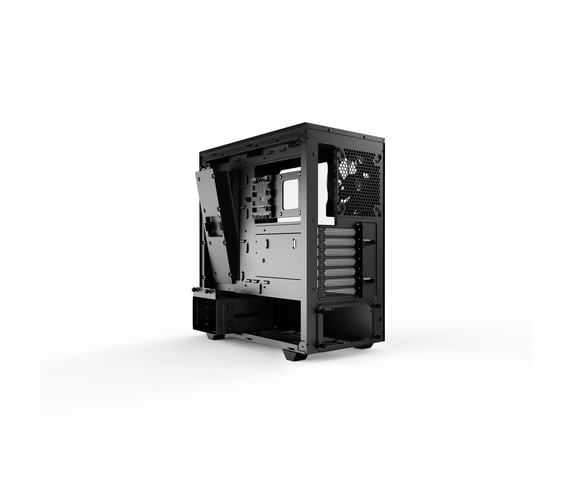

The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the provided PSU bracket.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
The be quiet! Pure Base 500 FX Black offers impressive lighting with multiple modes and maximum airflow for high cooling performance.
IMPRESSIVE LIGHTING
Lots of illumination possibilities
Light Wings PWM fans offer ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. Additional ARGB LEDs at the front and inside the case offer multiple colors and modes to individualize the look from the inside as well as from the outside. You can optionally synchronize lighting with your motherboard or ARGB controller.
PERFECT AIRFLOW
Thanks to 4 PWM fans
With optimization for maximum airflow, the Light Wings PWM fan is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure the fan to provide the performance that is needed, even in demanding configurations.
HIGH AIRFLOW AND MAXIMUM PERFORMANCE
All parts optimized for airflow and performance
The extremely permeable front is perfect for everyone who strives for maximum performance with water-cooled systems in particular. The airflow-optimized top cover underlines the performance orientated claim of Pure Base 500 FX Black. The dust filters on the front panel and bottom can be easily removed for cleaning.
ONE HUB, MANY POSSIBILITIES
Synchronization of up to 6 ARGB- and PWM-components
The ARGB-PWM-Hub enables synchronization of up to 6 PWM fans and 6 ARGB components: Preinstalled on the backside of the motherboard tray it supports a neat interior and cable management.
MODERN I/O PORT
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of latest hardware. There is also a switch on the front panel to control the interior and exterior LEDs.
SOPHISTICATED DESIGN
Generous space for high-end hardware
The Pure Base 500 FX Black provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Radiators of up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator of up to 240mm.
EYE-CATCHING FEATURES
And great cable routing possibilities
Pure Base 500 FX Black offers various options for installing up to 4 SSDs in total. 2 can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.
FUNCTIONAL PSU SHROUD
Offering a neat interior
The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the provided PSU bracket.
TEMPERED GLASS WINDOW
A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with black painted side bars.
Χαρακτηριστικά
Κατασκευαστής:
be quiet!
Material:
- Acrylonitrile butadiene styrene (ABS), Steel
Maximum airflow:
- 56 cfm
Type:
- PC
Cooling
Fan rated current:
- 0.07 A
Fan rated voltage:
- 5 - 13.2 V
Fan speed:
- 1500 - 1700 RPM
Front fans diameters supported:
- 120,140 mm
Front fans installed:
- 3x 120 mm
Front radiator sizes supported:
- 120,140,240,280,360 mm
Liquid cooling capability:
- Yes
Number of front fans supported (max):
- 3
Number of rear fans supported (max):
- 1
Number of top fans supported (max):
- 2
Rear fans installed:
- 1x 140 mm
Rear radiator sizes supported:
- 120,140 mm
Top fans diameters supported:
- 120,140 mm
Top radiator sizes supported:
- 120,240 mm
Design
Anti-dust filter:
- Yes
Form factor:
- Midi Tower
Illumination:
- Yes
Illumination colour:
- Multi
Illumination location:
- Case fans, Front
LED indicators:
- Yes
Maximum CPU cooler height:
- 19 cm
Maximum graphics card length:
- 36.9 cm
Maximum PSU length:
- 25.8 cm
Number of 2.5" bays:
- 4
Number of 3.5" bays:
- 2
Number of expansion slots:
- 7
Product colour:
- Black
Side window:
- Yes
Supported motherboard form factors:
- ATX, micro ATX, Mini-ITX
Other features
Air pressure:
- 1.66 mmH2O
Packaging content
LED controller:
- Yes
Screws included:
- Yes
Performance
Fan connector:
- 4-pin
Mean time between failures (MTBF):
- 60000 h
Noise level (high speed):
- 23.3 dB
Noise level (low speed):
- 20.6 dB
Reset button:
- Yes
Suitable for:
- Gaming
Ports & interfaces
Audio input:
- Yes
Audio output:
- yes
On/off button:
- Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 1
Power
Fan power consumption:
- 4.56 W
Power supply included:
- No
Power supply
Supported power supply form factors:
- ATX, PS2
Storage
Supported HDD sizes:
- 2.5,3.5\"
Technical details
Compliance certificates:
- CE, RoHS
Sustainability compliance:
- Yes
Weight & dimensions
Depth:
- 450 mm
Height:
- 463 mm
Package depth:
- 510 mm
Package height:
- 494 mm
Package weight:
- 9.2 kg
Package width:
- 285 mm
Weight:
- 8 kg
Width:
- 232 mm
