Comfortably compact

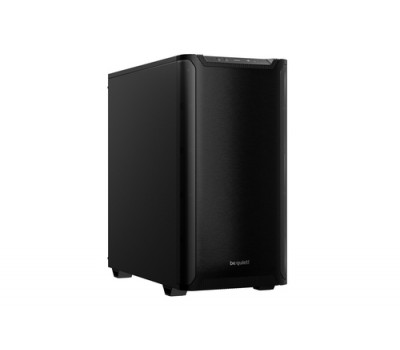

Pure Base 501 is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
REDUCED TO THE MAX
Classic appearance
Without any distractions, Pure Base 501 is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.
PERFECT CASE FAN
Fan blades optimized for high airflow
With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.
MORE THAN MEETS THE EYE
Generous space for high-end hardware
Despite its compact dimensions, Pure Base 501 offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.
WAY UP!
With rotatable PCIe slots

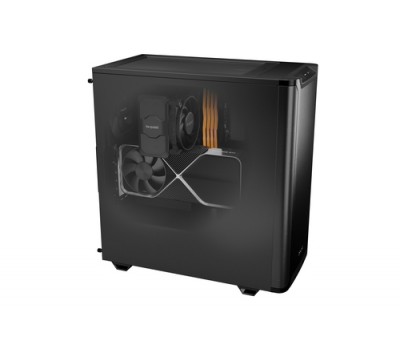

Why not try something else with your GPU? The PCIe slots of the Pure Base 501 can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
INVENTORY MANAGEMENT
With smart cable routing options
As a compact PC case, Pure Base 501 optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.
CONNECT WITH ME
State-of-the-art technology for your system

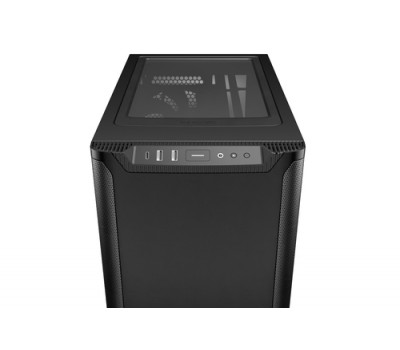

A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
Pure Base 501 is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
REDUCED TO THE MAX
Classic appearance
Without any distractions, Pure Base 501 is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.
PERFECT CASE FAN
Fan blades optimized for high airflow
With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.
MORE THAN MEETS THE EYE
Generous space for high-end hardware
Despite its compact dimensions, Pure Base 501 offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.
WAY UP!
With rotatable PCIe slots
Why not try something else with your GPU? The PCIe slots of the Pure Base 501 can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
INVENTORY MANAGEMENT
With smart cable routing options
As a compact PC case, Pure Base 501 optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.
CONNECT WITH ME
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
Χαρακτηριστικά
Κατασκευαστής:
be quiet!
Material:
- Acrylonitrile butadiene styrene (ABS), Steel
Maximum airflow:
- 57.4 cfm
Type:
- PC
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 2
Cooling
Front fans diameters supported:
- 120,140 mm
Front fans installed:
- 1x 140 mm
Front radiator sizes supported:
- 120,140,240,280,360 mm
Number of front fans supported (max):
- 2
Number of rear fans supported (max):
- 1
Number of top fans supported (max):
- 2
Rear fans diameters supported:
- 120,140 mm
Rear fans installed:
- 1x 140 mm
Rear radiator sizes supported:
- 120,140 mm
Top fans diameters supported:
- 120,140 mm
Top radiator sizes supported:
- 120,240 mm
Design
Form factor:
- Midi Tower
Maximum CPU cooler height:
- 17.8 cm
Maximum PSU length:
- 18 cm
Number of 2.5" bays:
- 5
Number of 3.5" bays:
- 2
Number of 5.25" bays:
- 0
Number of expansion slots:
- 7
Product colour:
- Black
Supported motherboard form factors:
- ATX, micro ATX, Mini-ITX
Performance
Maximum air pressure:
- 0.96 mmH2O
Reset button:
- Yes
Ports & interfaces
Audio input:
- Yes
Audio output:
- yes
On/off button:
- Yes
USB 2.0 ports quantity:
- 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 1
USB 3.2 Gen 2x2 Type-C ports quantity:
- 0
Power
Power supply included:
- No
Power supply
Supported power supply form factors:
- ATX, PS2
Storage
Supported HDD sizes:
- 2.5,3.5\"
Technical details
Compliance certificates:
- CE, REACH, RoHS

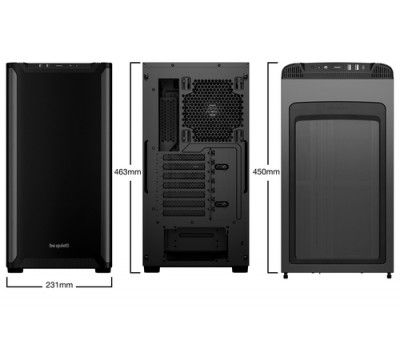

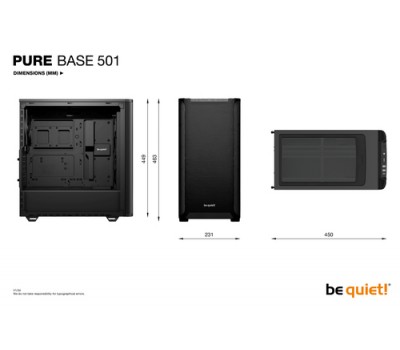

Weight & dimensions
Depth:
- 450 mm
Height:
- 463 mm
Package depth:
- 518 mm
Package height:
- 503 mm
Package weight:
- 7.8 kg
Package width:
- 292 mm
Weight:
- 6.7 kg
Width:
- 231 mm
