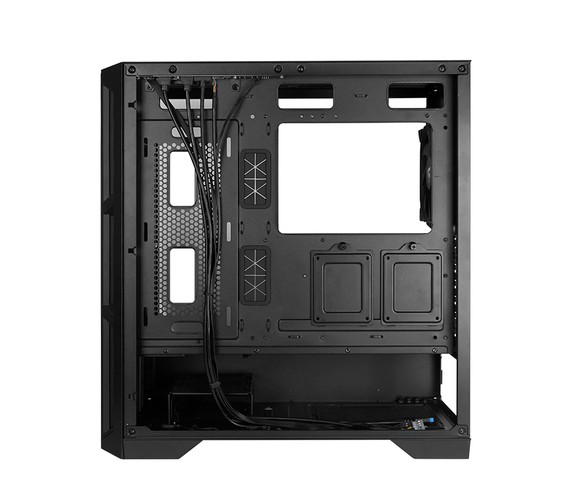

The CHIEFTEC APEX AIR presents an E-ATX chassis with a large mesh front panel and three pre-installed 140mm PWM fans that, in combination, are designed to enable high-airflow systems while maintaining low noise.
APEX AIR‘s 3x 140mm PWM fans are configured with 2 pre-installed in the front and 1 pre-installed in the rear, which creates a smooth airflow path from the front intake to rear exhaust.
The case is generous with space, offering support for GPU‘s up to 400 mm in length, CPU coolers up to 175mm in height and radiator support up to 360mm on the top, as well as up to 420mm in the front.
CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.
APEX AIR‘s 3x 140mm PWM fans are configured with 2 pre-installed in the front and 1 pre-installed in the rear, which creates a smooth airflow path from the front intake to rear exhaust.
The case is generous with space, offering support for GPU‘s up to 400 mm in length, CPU coolers up to 175mm in height and radiator support up to 360mm on the top, as well as up to 420mm in the front.
CHIEFTEC APEX AIR is ready to bring more airflow and better cooling to modern gaming systems.
Χαρακτηριστικά
Κατασκευαστής:
Chieftec
Material:
- SPCC
Type:
- PC
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 0
Cooling
Bottom fans diameters supported:
- 120 mm
Front fans diameters supported:
- 120,140 mm
Front fans installed:
- 2x 140 mm
Front radiator sizes supported:
- 240,280,360,420 mm
Liquid cooling capability:
- Yes
Number of bottom fans supported (max):
- 2
Number of front fans supported (max):
- 3
Number of rear fans supported (max):
- 1
Number of side fans supported (max):
- 2
Number of top fans supported (max):
- 3
Rear fans diameters supported:
- 120,140 mm
Rear fans installed:
- 1x 140 mm
Side fans diameters supported:
- 120 mm
Side radiator sizes supported:
- 240 mm
Top fans installed:
- 3x 120 mm, 2x 140 mm
Top radiator sizes supported:
- 240,280,360 mm
Design
Anti-dust filter:
- Yes
Form factor:
- Midi Tower
Full-Height expansion slots:
- 7
Illumination:
- No
Material thickness:
- 0.6 mm
Maximum CPU cooler height:
- 17.5 cm
Maximum graphics card length:
- 40 cm
Maximum PSU length:
- 22 cm
Number of 2.5" bays:
- 2
Number of 3.5" bays:
- 2
Number of 5.25" bays:
- 0
Number of expansion slots:
- 7
Number of internal 3.5" bays:
- 2
Product colour:
- Black
RGB control button:
- Yes
Side window:
- Yes
Supported motherboard form factors:
- ATX, EATX, micro ATX, Mini-ITX
Tempered glass panel(s):
- Yes
Ergonomics
Cable management:
- Yes
Performance
Pulse-width modulation (PWM) support:
- Yes
Reset button:
- Yes
Suitable for:
- Gaming
Ports & interfaces
Audio input:
- Yes
Audio output:
- yes
On/off button:
- Yes
USB 2.0 ports quantity:
- 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 1
USB Type-C ports quantity:
- 1
Power
Power supply included:
- No
Power supply
Power supply location:
- Bottom
Power supply shroud:
- Yes
Storage
Number of storage drives supported:
- 5
Supported HDD sizes:
- 2.5,3.5\"
Weight & dimensions
Depth:
- 465 mm
Height:
- 495 mm
Package weight:
- 8.75 kg
Weight:
- 7.3 kg
Width:
- 230 mm
