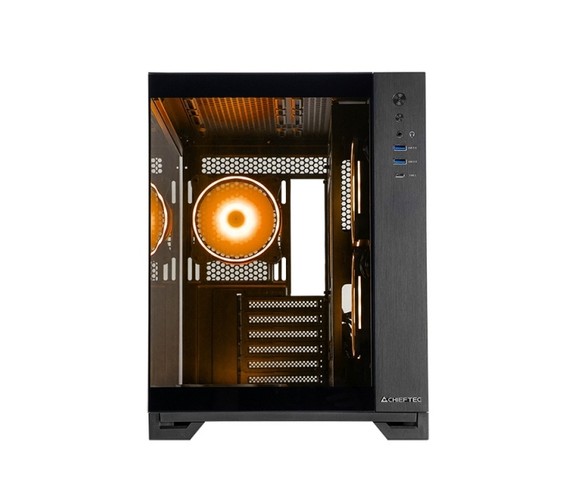

The CHIEFTEC Visio features tempered glass panels on both the left and front sides, incorporating a dual-chamber layout to accommodate the latest back-connect motherboards (ASUS BTF and MSI Project Zero compatible). This design streamlines cable management for a clean interior view and unobstructed airflow.
The refined internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated conguration.
The case comes with six pre-installed 120mm A-RGB fans and a control hub for motherboard synchronization of A-RGB and PWM fan speed control. 5 of these fans are designed with reverse airflow fan blades to enable the optimum intake on the sides and the bottom without sacricing on the aesthetics. Designed with gamers in mind, the CHIEFTEC Visio provides the opportunity to create a distinctive build.
The refined internal layout supports the mounting of 360mm radiators on the top and bottom, 240mm radiators on the motherboard side, and CPU tower coolers up to 175mm in height. High-end GPUs up to 410mm can be easily accommodated, thanks to its spacious and well-ventilated conguration.
The case comes with six pre-installed 120mm A-RGB fans and a control hub for motherboard synchronization of A-RGB and PWM fan speed control. 5 of these fans are designed with reverse airflow fan blades to enable the optimum intake on the sides and the bottom without sacricing on the aesthetics. Designed with gamers in mind, the CHIEFTEC Visio provides the opportunity to create a distinctive build.
Χαρακτηριστικά
Κατασκευαστής:
Chieftec
Type:
- PC
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 0
Cooling
Bottom fans installed:
- 3x 120 mm
Liquid cooling capability:
- Yes
Rear fans installed:
- 1x 120 mm
Side fans installed:
- 2x 120 mm
Top radiator sizes supported:
- 240,280,360 mm
Design
Anti-dust filter:
- Yes
Form factor:
- Cube
Full-Height expansion slots:
- 6
Illumination:
- Yes
Illumination colour:
- Multi
Maximum CPU cooler height:
- 17.5 cm
Maximum graphics card length:
- 41 cm
Maximum PSU length:
- 20 cm
Number of 2.5" bays:
- 2
Number of 3.5" bays:
- 2
Number of 5.25" bays:
- 0
Number of expansion slots:
- 6
Number of internal 3.5" bays:
- 2
Product colour:
- Black
Side window:
- Yes
Supported motherboard form factors:
- ATX, micro ATX
Tempered glass panel(s):
- Yes
Performance
Fan speed control:
- Yes
Suitable for:
- Gaming
Ports & interfaces
Combo headphone/mic port:
- Yes
USB 2.0 ports quantity:
- 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 1
USB 3.2 Gen 2x2 Type-C ports quantity:
- 0
Power
Power supply included:
- No
Storage
HDD/SSD combo cage:
- Yes
Number of storage drives supported:
- 4
Supported HDD sizes:
- 2.5,3.5\"
Weight & dimensions
Depth:
- 430 mm
Height:
- 390 mm
Weight:
- 7.3 kg
Width:
- 295 mm
