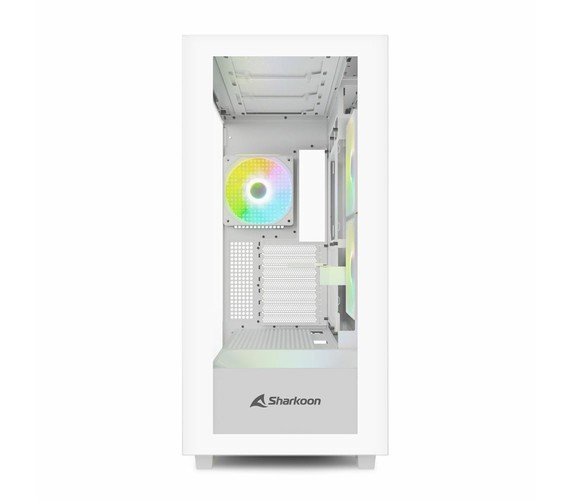

With a front and side panel made of tempered glass, the Rebel C60 RGB puts the focus on the hardware installed inside. Four RGB fans are intelligently placed around the locations for the mainboard, RAM, cooler and graphics card and ensure an effective cooling, with air also drawn in through the underside of the case. The ATX case is equipped with a mounting frame and mounting bracket for the easy installation of HDDs, SSDs and more fans. In addition, modern I/O ports provide comprehensive connectivity.
Cool Design
Thanks to its front and side panels made of tempered glass, the Rebel C60 RGB is the ideal showcase for powerful pieces of hardware. And to ensure an optimal airflow, the case is already pre-installed with four addressable 120 mm RGB PWM fans: one on the rear panel, two next to the mainboard tray, and one smartly placed on the underside. Together, the fans provide an efficient air circulation, in which fresh air is drawn through the detachable filter underneath the case and conveyed outwards through the side panel.
Further Cooling Options
If additional cooling performance is needed, another 120 mm fan can be installed behind the mainboard tray, and three more fans will find space under the top panel. Of course, a 360 mm radiator can be installed under the top panel instead; or as an alternative to two of the pre-installed fans, a 240 mm radiator can be installed next to the mainboard tray. For the easy installation of the fans, HDDs and SSDs, a mounting frame and a mounting bracket are available. These can be removed, then attached to the hardware, and finally reinserted into the case.
Lots of Room for Hardware
The Rebel C60 RGB provides a modular installation for up to three 3.5" HDDs or up to three 2.5" SSDs on the mounting bracket behind the mainboard tray. There is also enough space for graphics cards with a maximum length of 40 cm, a CPU cooler with a maximum height of 16.5 cm, and a power supply unit with a maximum length of 27 cm.
Modern Connections
For the greatest possible connectivity to mobile devices and modern headsets, the top of the case is equipped with two USB 3.0 ports, a USB-C port and a TRRS port for audio and microphone.
Extras for Graphics Enthusiasts
To prevent large graphics cards from sagging, a graphics card holder with a rubberized contact surface is already pre-installed in the Rebel C60 RGB. If the vertical installation of the graphics card is preferred, the case has been designed to be compatible with the Rebel C Series Vertical Graphics Card Kit. The kit is available separately and comes with a high-performance PCIe 4.0 riser cable.
Cool Design
Thanks to its front and side panels made of tempered glass, the Rebel C60 RGB is the ideal showcase for powerful pieces of hardware. And to ensure an optimal airflow, the case is already pre-installed with four addressable 120 mm RGB PWM fans: one on the rear panel, two next to the mainboard tray, and one smartly placed on the underside. Together, the fans provide an efficient air circulation, in which fresh air is drawn through the detachable filter underneath the case and conveyed outwards through the side panel.
Further Cooling Options
If additional cooling performance is needed, another 120 mm fan can be installed behind the mainboard tray, and three more fans will find space under the top panel. Of course, a 360 mm radiator can be installed under the top panel instead; or as an alternative to two of the pre-installed fans, a 240 mm radiator can be installed next to the mainboard tray. For the easy installation of the fans, HDDs and SSDs, a mounting frame and a mounting bracket are available. These can be removed, then attached to the hardware, and finally reinserted into the case.
Lots of Room for Hardware
The Rebel C60 RGB provides a modular installation for up to three 3.5" HDDs or up to three 2.5" SSDs on the mounting bracket behind the mainboard tray. There is also enough space for graphics cards with a maximum length of 40 cm, a CPU cooler with a maximum height of 16.5 cm, and a power supply unit with a maximum length of 27 cm.
Modern Connections
For the greatest possible connectivity to mobile devices and modern headsets, the top of the case is equipped with two USB 3.0 ports, a USB-C port and a TRRS port for audio and microphone.
Extras for Graphics Enthusiasts
To prevent large graphics cards from sagging, a graphics card holder with a rubberized contact surface is already pre-installed in the Rebel C60 RGB. If the vertical installation of the graphics card is preferred, the case has been designed to be compatible with the Rebel C Series Vertical Graphics Card Kit. The kit is available separately and comes with a high-performance PCIe 4.0 riser cable.
Χαρακτηριστικά
Κατασκευαστής:
Sharkoon
Material:
- Steel, Tempered glass
Type:
- PC
Cooling
Bottom fans diameters supported:
- 120 mm
Bottom fans installed:
- 1x 120 mm
Liquid cooling capability:
- Yes
Number of bottom fans supported (max):
- 1
Number of rear fans supported (max):
- 1
Number of side fans supported (max):
- 120
Number of top fans supported (max):
- 3
Rear fans diameters supported:
- 120 mm
Rear fans installed:
- 1x 120 mm
Side fans diameters supported:
- 120 mm
Side fans installed:
- 2x 120 mm
Top fans diameters supported:
- 120,140 mm
Top radiator sizes supported:
- 140 mm
Design
Anti-dust filter:
- Yes
Form factor:
- Midi Tower
Illumination:
- Yes
Illumination colour:
- Multi
Illumination location:
- Case fans
Maximum CPU cooler height:
- 16.5 cm
Maximum graphics card length:
- 40 cm
Maximum PSU length:
- 27 cm
Number of 2.5" bays:
- 3
Number of 3.5" bays:
- 3
Number of expansion slots:
- 7
Product colour:
- White
Side window:
- Yes
Supported motherboard form factors:
- ATX, micro ATX, Mini-ITX
Tempered glass panel(s):
- Yes
Ergonomics
Cable management:
- Yes
Packaging content
Manual:
- Yes
Performance
Suitable for:
- Gaming
Ports & interfaces
Audio input:
- Yes
On/off button:
- Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 1
Power supply
Supported power supply form factors:
- ATX
Storage
SSD form factor:
- 2.5\"
Supported HDD sizes:
- 3.5\"
Weight & dimensions
Depth:
- 457 mm
Height:
- 495 mm
Weight:
- 9.3 kg
Width:
- 230 mm
