Built for amazing views thanks to the front and side tempered glass side panels the View 170 TG ARGB Snow is sure to impress. Supporting M-ATX builds, mounting points for up to 7 fans, and a ventilated bottom shroud the View 170 TG ARGB Snow brings flexibility in a small package.

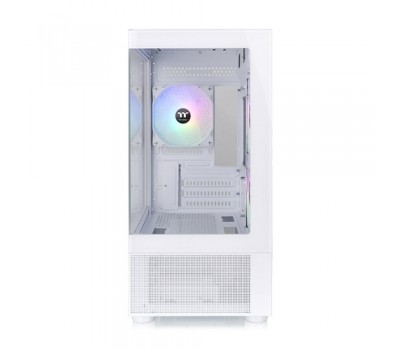

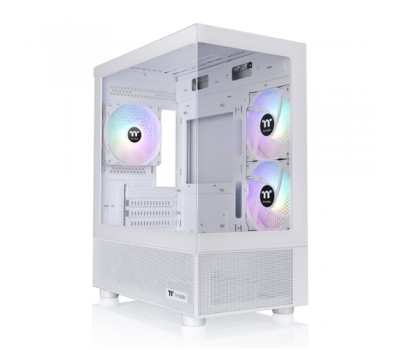

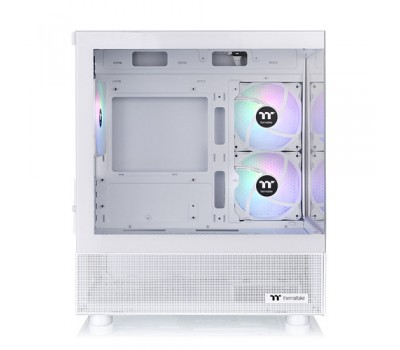

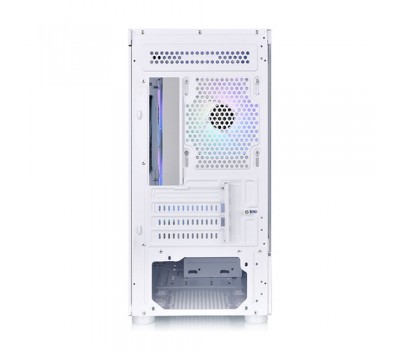

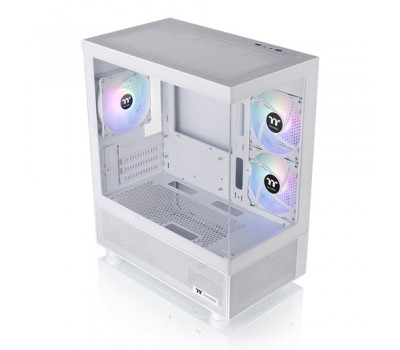

View 170 TG ARGB Snow Micro Chassis
Tempered Glass Front and Left
The View 170 TG ARGB Snow comes equipped with two Tempered Glass panels located on the front and side of the case to provide the best viewing angles for your system inside.

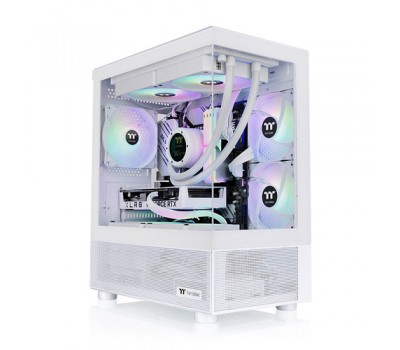

Up to 280mm Radiator Support
Supporting up to 280mm radiators on the top of the chassis, the View 170 TG ARGB Snow can meet the cooling needs for some of the more demanding systems all while maintaining a show appearance to show off your components. Check out the link below for some options from TT.
Three 120mm ARGB Lite Fans Pre-Installed
The View 170 TG ARGB Snow comes with three 120mm ARGB Lite Fans pre-installed into the rear and side of the chassis. Lighting can be controlled through any supported ARGB software such as those from Asus, Gigabyte, MSI, and ASRock.
Space for Your Storage
The View 170 can support up to two 2.5” SSDs as well as one 3.5” HDD in total.
Handy I/O Ports
Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers.
View 170 TG ARGB Snow Micro Chassis
Tempered Glass Front and Left
The View 170 TG ARGB Snow comes equipped with two Tempered Glass panels located on the front and side of the case to provide the best viewing angles for your system inside.
Up to 280mm Radiator Support
Supporting up to 280mm radiators on the top of the chassis, the View 170 TG ARGB Snow can meet the cooling needs for some of the more demanding systems all while maintaining a show appearance to show off your components. Check out the link below for some options from TT.
Three 120mm ARGB Lite Fans Pre-Installed
The View 170 TG ARGB Snow comes with three 120mm ARGB Lite Fans pre-installed into the rear and side of the chassis. Lighting can be controlled through any supported ARGB software such as those from Asus, Gigabyte, MSI, and ASRock.
Space for Your Storage
The View 170 can support up to two 2.5” SSDs as well as one 3.5” HDD in total.
Handy I/O Ports
Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers.
Χαρακτηριστικά
Κατασκευαστής:
Thermaltake
Material:
- SPCC, Tempered glass
Type:
- PC
Cooling
Bottom fans diameters supported:
- 120 mm
Liquid cooling capability:
- Yes
Number of bottom fans supported (max):
- 2
Number of rear fans supported (max):
- 1
Number of side fans supported (max):
- 2
Number of top fans supported (max):
- 2
Rear fans diameters supported:
- 120 mm
Rear fans installed:
- 1x 120 mm
Rear radiator sizes supported:
- 120 mm
Side fans diameters supported:
- 120 mm
Side fans installed:
- 2x 120 mm
Top fans diameters supported:
- 120,140 mm
Top radiator sizes supported:
- 120,140,240,280 mm
Design
Form factor:
- Micro Tower
Illumination:
- Yes
Illumination colour:
- Multi
Illumination location:
- Case fans
LED indicators:
- Yes
Maximum CPU cooler height:
- 16 cm
Maximum graphics card length:
- 34 cm
Maximum PSU length:
- 18 cm
Number of 2.5" bays:
- 2
Number of 3.5" bays:
- 1
Number of expansion slots:
- 4
Number of internal 3.5" bays:
- 1
Product colour:
- White
Side window:
- Yes
Supported motherboard form factors:
- micro ATX, Mini-ITX
Tempered glass panel(s):
- Yes
Performance
Reset button:
- Yes
Suitable for:
- Gaming
Ports & interfaces
Audio input:
- Yes
Audio output:
- yes
On/off button:
- Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 2
Power
Power supply included:
- No
Power supply
Power supply location:
- Bottom
Supported power supply form factors:
- PS2
Storage
Supported HDD sizes:
- 2.5,3.5\"
Weight & dimensions
Depth:
- 377.5 mm
Height:
- 438 mm
Weight:
- 6.35 kg
Width:
- 212 mm
