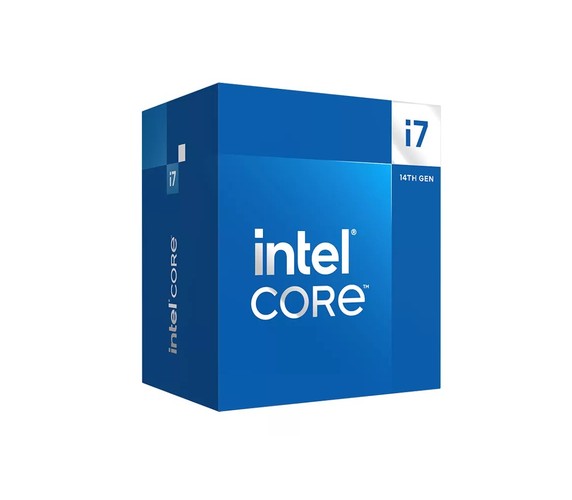

Intel Core i7-14700F processor 33 MB Smart Cache Box (BX8071514700F)
Χαρακτηριστικά
Κατασκευαστής:
Intel
Commodity Classification Automated Tracking System (CCATS):
- 740.17B1
Direct Media Interface (DMI) Revision:
- 4.0
Export Control Classification Number (ECCN):
- 5A992C
Market segment:
- Desktop
Use conditions:
- PC/Client/Tablet
Graphics
Discrete graphics card:
- No
Discrete graphics card model:
- Not available
On-board graphics card:
- No
On-board graphics card model:
- Not available
Logistics data
Harmonized System (HS) code:
- 8542310001
Memory
Maximum internal memory:
- 192 GB
Memory bandwidth (max):
- 89.6 GB/s
Memory channels:
- Dual-channel
Processor
Box:
- Yes
Cooler included:
- Yes
Efficient cores:
- 12
Efficient-core base frequency:
- 1.5 GHz
Efficient-core boost frequency:
- 4.2 GHz
L2 cache:
- 28672 KB
Maximum internal memory supported by processor:
- 192 GB
Maximum number of DMI lanes:
- 8
Maximum number of PCI Express lanes:
- 20
Maximum turbo power:
- 219 W
Memory bandwidth supported by processor (max):
- 89.6 GB/s
Memory types supported by processor:
- DDR4-SDRAM, DDR5-SDRAM
PCI Express configurations:
- 1x16+1x4, 2x8+1x4
PCI Express slots version:
- 4.0, 5.0
Performance cores:
- 8
Performance-core base frequency:
- 2.1 GHz
Performance-core boost frequency:
- 5.3 GHz
Processor base power:
- 65 W
Processor boost frequency:
- 5.4 GHz
Processor cache:
- 33 MB
Processor cache type:
- Smart Cache
Processor codename:
- Raptor Lake
Processor cores:
- 20
Processor family:
- Intel® Core™ i7
Processor generation:
- Intel Core i7-14xxx
Processor manufacturer:
- Intel
Processor model:
- i7-14700F
Processor operating modes:
- 64-bit
Processor socket:
- LGA 1700
Processor threads:
- 28
Stepping:
- B0
Tjunction:
- 100 °C
Processor special features
CPU configuration (max):
- 1
Embedded options available:
- No
Enhanced Intel SpeedStep Technology:
- Yes
Execute Disable Bit:
- Yes
Idle States:
- Yes
Intel 64:
- Yes
Intel Turbo Boost Max Technology 3.0:
- Yes
Intel Virtualization Technology (VT-x):
- Yes
Intel Virtualization Technology for Directed I/O (VT-d):
- Yes
Intel VT-x with Extended Page Tables (EPT):
- Yes
Intel® AES New Instructions (Intel® AES-NI):
- Yes
Intel® Boot Guard:
- Yes
Intel® Control-flow Enforcement Technology (CET):
- Yes
Intel® Deep Learning Boost (Intel® DL Boost):
- Yes
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0:
- Yes
Intel® Hyper Threading Technology (Intel® HT Technology):
- Yes
Intel® OS Guard:
- Yes
Intel® Secure Key:
- Yes
Intel® Speed Shift Technology:
- Yes
Intel® Standard Manageability (ISM):
- Yes
Intel® Thread Director:
- Yes
Intel® Turbo Boost Max Technology 3.0 frequency:
- 5.4 GHz
Intel® Turbo Boost Technology:
- 2.0
Intel® Volume Management Device (VMD):
- Yes
Mode-based Execute Control (MBE):
- Yes
Processor ARK ID:
- 236854
Processor package size:
- 45 x 37.5 mm
Scalability:
- 1S
Supported instruction sets:
- AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies:
- Yes
Technical details
Launch date:
- Q1\'24
Status:
- Launched
