Fast and easy connection with USB

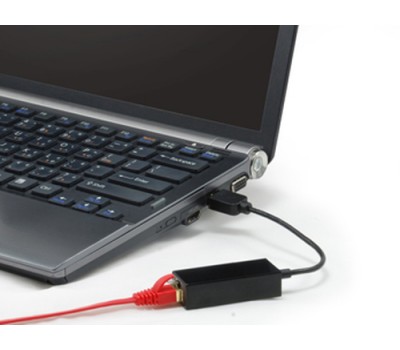

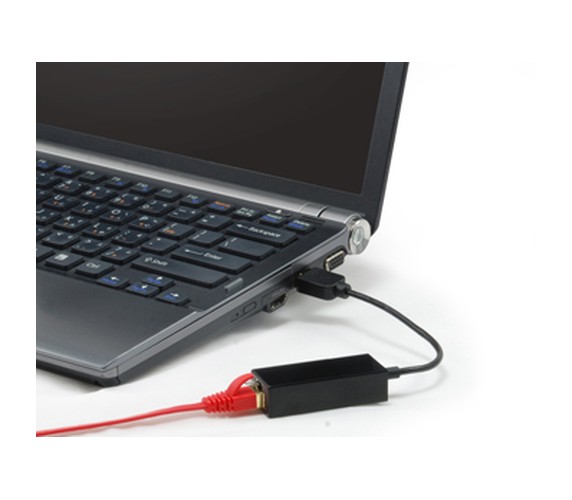

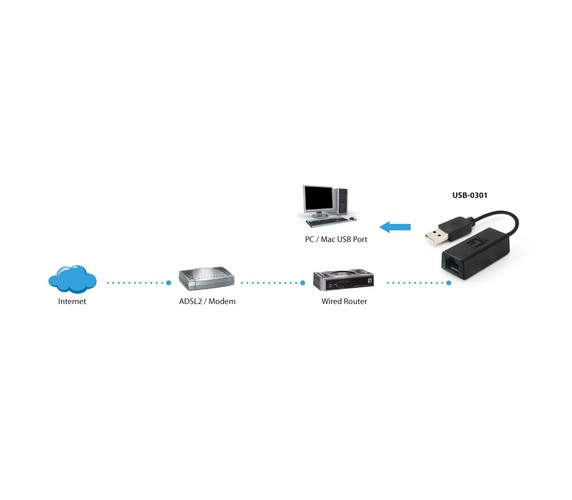

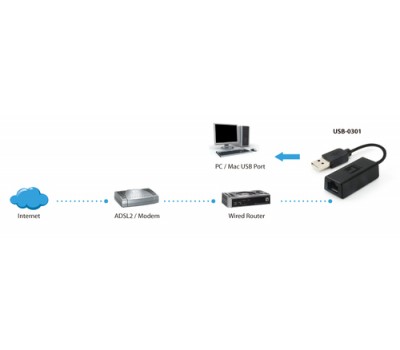

LevelOne USB Fast Ethernet Adapter allows you to connect to the internet easily through the built-in port on your laptop or gaming console. Now you no longer need to have an Ethernet connection in order to surf the web. This is an ideal solution for MacBook Air (100% Mac compatible) or other computers that may have wireless built-in but don’t come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. USB-0301 easily does the job, all through your USB port.
Reliable, efficient and standards compliant
USB-0301 is USB 1.0, 1.1, and 2.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3 and 802.3u, allowing you to take advantage of the Fast Ethernet speeds of up to 100 Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
- Provides an Internet connection through a single USB port
- 10/100Mbps wire speed transmission and reception
- Compact, lightweight design
- Supports IPv4/IPv6 network operation
- Simple Plug and Play installation
- No additional power supply required
- Supports Windows XP / Vista / 7 / 8, Mac OS X 10. 5 / 6 / 7 / 8 / 9
LevelOne USB Fast Ethernet Adapter allows you to connect to the internet easily through the built-in port on your laptop or gaming console. Now you no longer need to have an Ethernet connection in order to surf the web. This is an ideal solution for MacBook Air (100% Mac compatible) or other computers that may have wireless built-in but don’t come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. USB-0301 easily does the job, all through your USB port.
Reliable, efficient and standards compliant
USB-0301 is USB 1.0, 1.1, and 2.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3 and 802.3u, allowing you to take advantage of the Fast Ethernet speeds of up to 100 Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
- Provides an Internet connection through a single USB port
- 10/100Mbps wire speed transmission and reception
- Compact, lightweight design
- Supports IPv4/IPv6 network operation
- Simple Plug and Play installation
- No additional power supply required
- Supports Windows XP / Vista / 7 / 8, Mac OS X 10. 5 / 6 / 7 / 8 / 9
Χαρακτηριστικά
Κατασκευαστής:
LevelOne
Certification:
- CE, FCC
Data transmission
Maximum data transfer rate:
- 100 Mbit/s
Design
Internal:
- No
Product colour:
- Black
Logistics data
Harmonized System (HS) code:
- 85176990
Networking
Cabling technology:
- 10/100BaseT(X)
Ethernet LAN:
- Yes
Ethernet LAN data rates:
- 10,100 Mbit/s
Full duplex:
- Yes
Networking standards:
- IEEE 802.1Q, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready:
- Yes
Operational conditions
Operating relative humidity (H-H):
- 0 - 85%
Operating temperature (T-T):
- 10 - 40 °C
Storage relative humidity (H-H):
- 0 - 85%
Storage temperature (T-T):
- 10 - 80 °C
Packaging content
Manual:
- Yes
Quantity:
- 1
Performance
Interface:
- USB
Ports & interfaces
Connectivity technology:
- Wired
Ethernet LAN (RJ-45) ports:
- 1
Host interface:
- RJ-45
Power
Output voltage:
- 5 V
Power consumption:
- 500 mA
Power consumption (typical):
- 0.5 W
USB powered:
- Yes
System requirements
Mac operating systems supported:
- Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Windows operating systems supported:
- Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ult
Technical details
Compliance certificates:
- RoHS
Country of origin:
- China
Weight & dimensions
Depth:
- 21 mm
Height:
- 14.7 mm
Package depth:
- 152 mm
Package height:
- 30 mm
Package weight:
- 25 g
Package width:
- 171 mm
Weight:
- 45 g
Width:
- 48 mm
