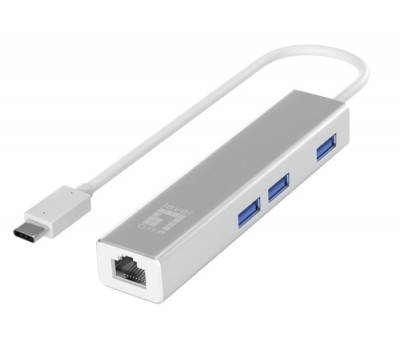

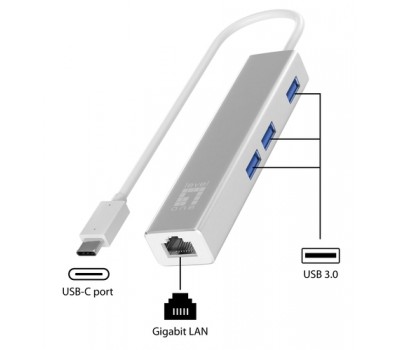

LevelOne Gigabit USB-C Network Adapter with USB Hub (USB-0504)
Περιγραφή
The LevelOne USB-C Hub and Gigabit Ethernet Combo Adapter allows you to connect to the internet easily through the built-in USB-C port on your laptop. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port. Sometimes you need to physically connect to a network cable to help transfer files or access secure information. The USB-0504 easily does the job, all through your USB-C port. The USB-0504 also combines a regular USB hub. So you can connect external USB peripherals, such as a digital camera, printer or pen drive. The USB-0504 establishes a direct point-to-point contact between the hub and the adapter that plugged into your PC.
The USB-0504 is USB 1.0, 2.0, and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
This makes the USB-0504 the best choice for reliability, efficiency and standard compliance.
The USB-0504 is USB 1.0, 2.0, and 3.0 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
This makes the USB-0504 the best choice for reliability, efficiency and standard compliance.
Χαρακτηριστικά
Κατασκευαστής:
LevelOne
Data transmission
Maximum data transfer rate:
- 1000 Mbit/s
Design
Internal:
- N
Product colour:
- Silver
Lens system
Component for:
- PC/notebook
Networking
Cabling technology:
- 10/100/1000BaseT(X)
Ethernet LAN:
- Y
Ethernet LAN data rates:
- 1000 Mbit/s
Full duplex:
- Y
Networking standards:
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready:
- Y
Operational conditions
Operating relative humidity (H-H):
- 0 - 85%
Operating temperature (T-T):
- 0 - 40 °C
Storage relative humidity (H-H):
- 0 - 85%
Storage temperature (T-T):
- -5 - 80 °C
Other features
Ethernet interface type:
- Gigabit Ethernet
Packaging content
Quick installation guide:
- Y
Performance
Chipset:
- Realtek RTL8153
Interface:
- Ethernet
Plug and Play:
- Y
Ports & interfaces
Connectivity technology:
- Wired
Ethernet LAN (RJ-45) ports:
- 1
Host interface:
- USB Type-C
USB version:
- 3.2 Gen 1 (3.1 Gen 1)
Power
USB powered:
- Y
System requirements
Mac operating systems supported:
- Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks
Windows operating systems supported:
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpr
Technical details
Country of origin:
- China
Sustainability certificates:
- CE, RoHS
Transmitter
USB ports quantity:
- 3
Weight & dimensions
Depth:
- 23.5 mm
Height:
- 16.5 mm
Package depth:
- 20 mm
Package height:
- 152 mm
Package weight:
- 64 g
Package width:
- 71 mm
Weight:
- 44 g
Width:
- 110 mm
