Περιγραφή
WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AMD Radeon™ Anti-Lag
Minimizes input lag so you can game like a champion.
AMD Radeon™ Image Sharpening
Improves in-game visuals with virtually no impact to performance.
AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication.
AMD Radeon™ Boost
Delivers extra performance and responsiveness when you need it most.
AMD Radeon™ Super Resolution
In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.
AMD Link
Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AMD Radeon™ Anti-Lag
Minimizes input lag so you can game like a champion.
AMD Radeon™ Image Sharpening
Improves in-game visuals with virtually no impact to performance.
AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication.
AMD Radeon™ Boost
Delivers extra performance and responsiveness when you need it most.
AMD Radeon™ Super Resolution
In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.
AMD Link
Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
Χαρακτηριστικά
Κατασκευαστής:
GigaByte
Cooling type:
- Active
Design
Cooling technology:
- Gigabyte WATERFORCE
Form factor:
- Full-Height/Full-Length (FH/FL)
Illumination:
- Yes
Illumination colour:
- Multi
Number of fans:
- 3 fan(s)
Product colour:
- Black
Graphics
Discrete graphics card memory:
- 12 GB
Memory
Graphics card memory type:
- GDDR6
Memory bandwidth (max):
- 18 GB/s
Memory bus:
- 192 bit
Packaging data
Package type:
- Box
User guide:
- Yes
Performance
AMD FreeSync:
- Yes
DirectX version:
- 12 Ultimate
Dual Link DVI:
- No
OpenGL version:
- 4.6
Ports & interfaces

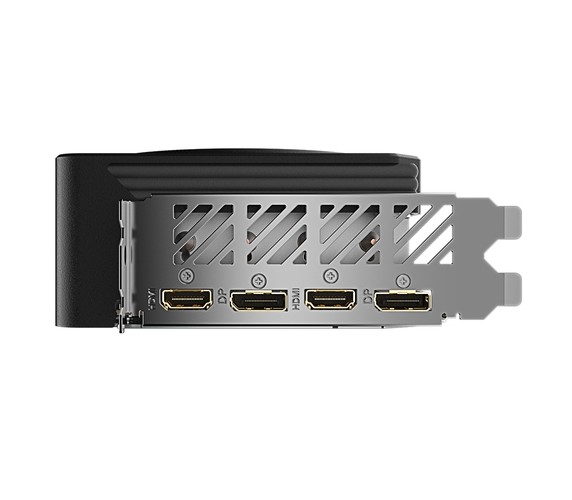

DisplayPort version:
- 2.1
DisplayPorts quantity:
- 2
HDMI ports quantity:
- 2
HDMI version:
- 2.1
Interface type:
- PCI Express 4.0
USB Type-C ports quantity:
- 1
Power
Minimum system power supply:
- 700 W
Supplementary power connectors:
- 2x 8-pin
Printing
Maximum resolution:
- 7680 x 4320 pixels
Processor
CUDA:
- No
Graphics processor:
- Radeon RX 7700 XT
Graphics processor family:
- AMD
Maximum displays per videocard:
- 4
Processor boost clock speed:
- 2599 MHz
Processor boost clock speed (Gaming mode):
- 2276 MHz
Stream processors:
- 3456
System requirements
Windows operating systems supported:
- Windows 10 x64, Windows 11 x64
Technical details
Bracket height:
- Full-Height (FH)
Weight & dimensions
Depth:
- 56 mm
Height:
- 130 mm
Length:
- 302 mm
Multimedia
TV tuner integrated:
- No
