Περιγραφή

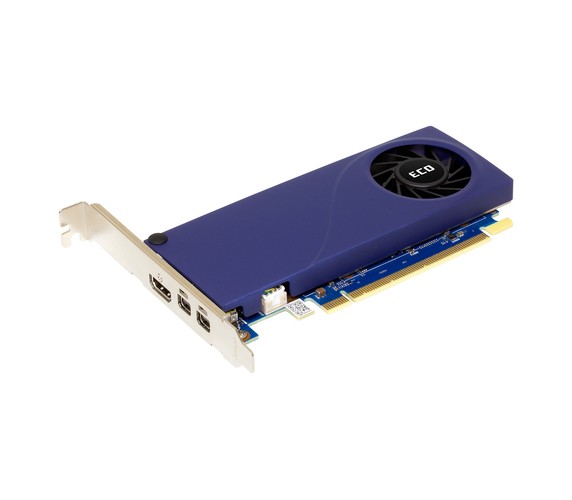

The SPARKLE team has successfully reduced the TBP of the Intel® Arc™ A310 GPU from 75W to 50W, allowing the SPARKLE Intel® Arc™ A310 ECO to be fully functional within a low-profile, single-slot, single-fan configuration. Meanwhile, the SPARKLE Intel® Arc™ A310 ECO maintains all of the modern technologies and capabilities of the Intel® Arc™ A310 GPU with 1x HDMI and 2x Mini DisplayPort video outputs as well as an additional short bracket free-of-charge. This card is designed to be the best choice for users seeking the best balance of modern technologies and capabilities for small form-factors.
Χαρακτηριστικά
Κατασκευαστής:
Sparkle Technology
Cooling type:
- Active
Design
Number of fans:
- 1 fan(s)
Product colour:
- Blue, Black
Graphics
Discrete graphics card memory:
- 4 GB
Memory
Graphics card memory type:
- GDDR6
Memory bandwidth (max):
- 124 GB/s
Memory bus:
- 64 bit
Performance
Data transfer rate:
- 15.5 Gbit/s
DirectX version:
- 12 Ultimate
Intel® Xe Matrix Extensions (Intel® XMX) Engines:
- 96
OpenCL version:
- 3.0
OpenGL version:
- 4.6
Xe-cores:
- 6
Ports & interfaces
DisplayPort version:
- 2.0
DisplayPorts quantity:
- 2
HDMI ports quantity:
- 1
HDMI version:
- 2.0b
Interface type:
- PCI Express 4.0
Power
Minimum system power supply:
- 350 W
Power consumption (typical):
- 50 W
Printing
Maximum resolution:
- 7680 x 4320 pixels
Processor
Graphics processor:
- Arc A310
Graphics processor family:
- Intel
Processor frequency:
- 1000 MHz
Ray accelerators:
- 6
Software
Linux operating systems supported:
- Ubuntu 22.04
System requirements
Windows operating systems supported:
- Windows 10, Windows 11
Weight & dimensions
Depth:
- 15 mm
Height:
- 69 mm
Length:
- 156 mm
Weight:
- 202 g
Multimedia
Video formats supported:
- AV1, VP9
