Περιγραφή

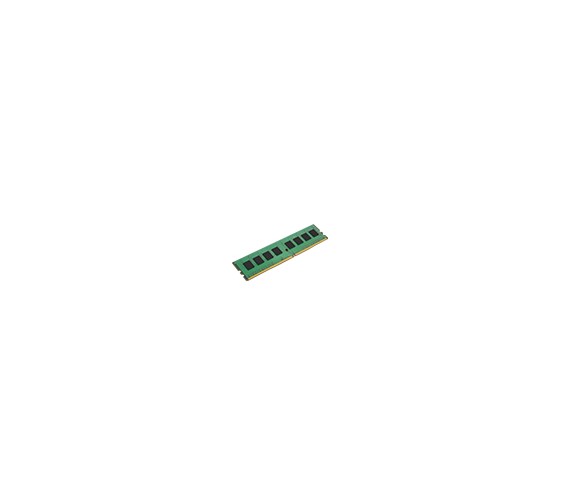

ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Χαρακτηριστικά
Κατασκευαστής:
Kingston Technology
Halogen-free:
- Y
JEDEC standard:
- Y
Certificates
RoHS compliance:
- Y
Lens system
Component for:
- PC/server
Memory
Buffered memory type:
- Unregistered (unbuffered)
CAS latency:
- 22
ECC:
- N
Internal memory type:
- DDR4
Lead plating:
- Gold
Memory clock speed:
- 3200 MHz
Memory form factor:
- 288-pin DIMM
Memory layout (modules x size):
- 1 x 8 GB
Memory ranking:
- 1
Memory voltage:
- 1.2 V
Module configuration:
- 1024M x 64
Programming power voltage (VPP):
- 2.5 V
Refresh row cycle time:
- 350 ns
Row active time:
- 32 ns
Row cycle time:
- 45.75 ns
Operational conditions
Operating temperature (T-T):
- 0 - 85 °C
Storage temperature (T-T):
- -55 - 100 °C
Storage
Internal memory:
- 8 GB
Weight & dimensions
Height:
- 31.2 mm
Width:
- 133.3 mm
