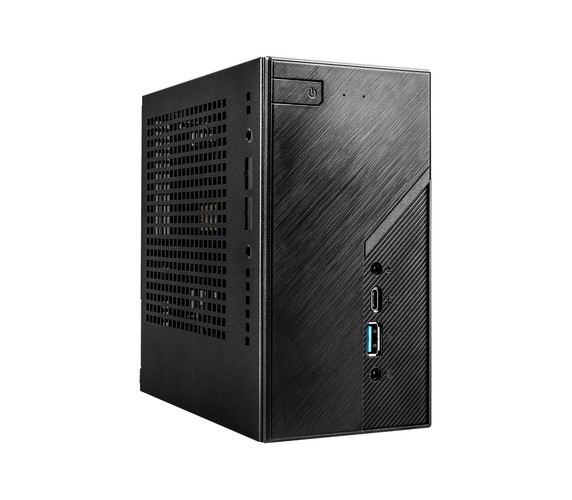

Asrock DeskMini H470 1.92L sized PC Black Intel H470 LGA 1200 (Socket H5) (90BXG3R01-A10GA0W)
Περιγραφή
Power of 10!
DeskMini H470 adopts LGA1200 CPU socket, supports Intel® the latest 10 cores Core i9-10900 65 watts Processor, delivering ultimate computing performance within tiny PC.
Dr.MOS
The integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Premium 60A Power Choke
Compared to traditional chokes, ASRock' premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Heatsink on MOSFET
ASRock DeskMini H470 features with Aluminum MOSFET Heatsink providing great heat dissipation to ensure system’s stability in loading.
ASRock BFB Technology
ASRock DeskMini H470 supports exclusive Base Frequency Boost (BFB) Technology, allows user to bump non-K processors speed to enhance system performance.
Dual Channel DDR4-2933
ASRock DeskMini H470 supports dual-channel DDR4-2933MHz high-speed memory. It is 10% faster than the previous generation and brings higher performance.
USB Alternate Mode
ASRock DeskMini H470 adopts Rear USB Type-C USB Alternate Mode providing 4K resolution DisplayPort signal, up to 60 watt power delivery, and 5Gbps data transfer through one cable.
Rapid USB Connectivity
ASRock DeskMini H470 supports USB 3.2 Gen2 Type-A on front panel, delivering 10Gbps speedy data transfer bandwidth. In addition, DeskMini H470 brings 4 x USB 3.2 Gen1 ports on rear side.
Optane Memory Technology
The Supports on Intel® Optane™ memory technology and Intel® Optane™ storage technology redefines a new standard of high performance and responsiveness.
Multi Storages
ASRock DeskMini H470 supports Multi Storages:
M2_1 M.2 (2280) –PCIe Gen3 x4
2 x 2.5” SATA 6Gb SSD/HDD Tray
Mini Home Data Center
DeskMini H470 supports RAID 0/1 function! Build mini data center at home!
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
Triple 4K Displays
DeskMini H470 supports 3 displays output simultaneously!
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
DeskMini Addressable LED(Optional)
Exclusive Addressable RGB LED Strip for ASRock DeskMini Series mini PC. To create cool personalized lighting for you.
DeskMini USB Hub(Optional)
DeskMini USB Hub grants you easy connection to the DeskMini Addressable LED and USB 2.0 Cable for fantastic personalized lighting as well as the accessibility to expand extra 2x USB 2.0 ports.
VESA Mount Kit (Optional)
Let you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space.
Rear Audio Cable (Optional)
Connect to external audio devices such as: 2.1 channel speaker, soundbar, headphone amplifier, and so on…
Intel® Wi-Fi Kit (Optional)
ASRock M.2 Wi-Fi Kit includes Intel® M.2 Wi-Fi module* and two antennas; offering wireless connectivity for DeskMini.
USB 2.0 Cable (Optional)
Purchasing USB Cable for extra 2 x USB 2.0 ports on DeskMini Series side plane.
The availability of USB cable may vary from model or region to another.
DeskMini H470 adopts LGA1200 CPU socket, supports Intel® the latest 10 cores Core i9-10900 65 watts Processor, delivering ultimate computing performance within tiny PC.
Dr.MOS
The integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
Premium 60A Power Choke
Compared to traditional chokes, ASRock' premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Heatsink on MOSFET
ASRock DeskMini H470 features with Aluminum MOSFET Heatsink providing great heat dissipation to ensure system’s stability in loading.
ASRock BFB Technology
ASRock DeskMini H470 supports exclusive Base Frequency Boost (BFB) Technology, allows user to bump non-K processors speed to enhance system performance.
Dual Channel DDR4-2933
ASRock DeskMini H470 supports dual-channel DDR4-2933MHz high-speed memory. It is 10% faster than the previous generation and brings higher performance.
USB Alternate Mode
ASRock DeskMini H470 adopts Rear USB Type-C USB Alternate Mode providing 4K resolution DisplayPort signal, up to 60 watt power delivery, and 5Gbps data transfer through one cable.
Rapid USB Connectivity
ASRock DeskMini H470 supports USB 3.2 Gen2 Type-A on front panel, delivering 10Gbps speedy data transfer bandwidth. In addition, DeskMini H470 brings 4 x USB 3.2 Gen1 ports on rear side.
Optane Memory Technology
The Supports on Intel® Optane™ memory technology and Intel® Optane™ storage technology redefines a new standard of high performance and responsiveness.
Multi Storages
ASRock DeskMini H470 supports Multi Storages:
M2_1 M.2 (2280) –PCIe Gen3 x4
2 x 2.5” SATA 6Gb SSD/HDD Tray
Mini Home Data Center
DeskMini H470 supports RAID 0/1 function! Build mini data center at home!
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
Triple 4K Displays
DeskMini H470 supports 3 displays output simultaneously!
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
DeskMini Addressable LED(Optional)
Exclusive Addressable RGB LED Strip for ASRock DeskMini Series mini PC. To create cool personalized lighting for you.
DeskMini USB Hub(Optional)
DeskMini USB Hub grants you easy connection to the DeskMini Addressable LED and USB 2.0 Cable for fantastic personalized lighting as well as the accessibility to expand extra 2x USB 2.0 ports.
VESA Mount Kit (Optional)
Let you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space.
Rear Audio Cable (Optional)
Connect to external audio devices such as: 2.1 channel speaker, soundbar, headphone amplifier, and so on…
Intel® Wi-Fi Kit (Optional)
ASRock M.2 Wi-Fi Kit includes Intel® M.2 Wi-Fi module* and two antennas; offering wireless connectivity for DeskMini.
USB 2.0 Cable (Optional)
Purchasing USB Cable for extra 2 x USB 2.0 ports on DeskMini Series side plane.
The availability of USB cable may vary from model or region to another.
Χαρακτηριστικά
Κατασκευαστής:
Asrock
Product type:
- Mini PC barebone
Audio
Built-in speaker(s):
- No
Design
Chassis type:
- 1.92L sized PC
LED indicators:
- Yes
Product colour:
- Black
Display
Touchscreen:
- No
Ergonomics
On/off switch:
- Yes
Expansion slots
Number of M.2 (M) slots:
- 2
Graphics
On-board graphics card:
- No
Logistics data
Harmonized System (HS) code:
- 84713000
Memory
Maximum internal memory:
- 64 GB
Memory channels:
- Dual-channel
Memory slots type:
- SO-DIMM
Non-ECC:
- Yes
Number of memory slots:
- 2
Supported memory clock speeds:
- 2933 MHz
Supported memory types:
- DDR4-SDRAM
Networking
Ethernet LAN:
- Yes
Wi-Fi:
- No
Performance
Motherboard chipset:
- Intel H470
RAID levels:
- 0, 1
Ports & interfaces
DC-in jack:
- Yes
DisplayPort version:
- 1.4
DisplayPorts quantity:
- 2
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
Headphone outputs:
- 1
Microphone in:
- Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
- 2
VGA (D-Sub) ports quantity:
- 1
Power
AC adapter output voltage:
- 19 V
AC input voltage:
- 100 - 240 V
Power supply:
- 120 W
Power supply type:
- External AC adapter
Processor
Built-in processor:
- No
Processor socket:
- LGA 1200 (Socket H5)
Storage
Storage drive interface:
- PCI Express, Serial ATA III
Storage drive sizes supported:
- 2.5,M.2
Supported storage drive types:
- HDD & SSD
Weight & dimensions
Depth:
- 155 mm
Height:
- 155 mm
Width:
- 80 mm
