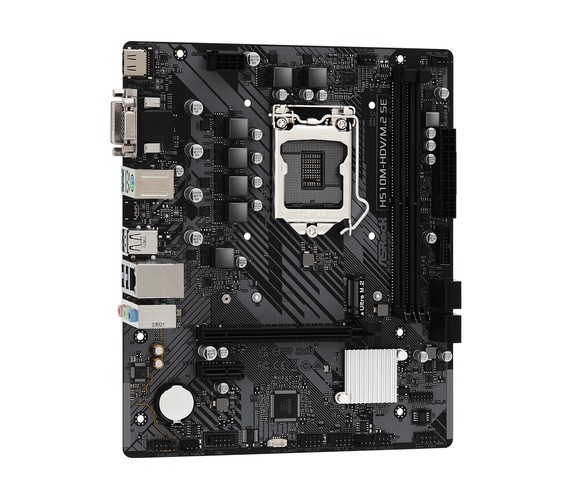

Asrock H510M-HDV/M.2 SE Intel H470 LGA 1200 (Socket H5) micro ATX (90-MXBM00-A0UAYZ)
Περιγραφή
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Χαρακτηριστικά
Κατασκευαστής:
Asrock
Display
HDCP:
- Yes
Expansion slots
Number of M.2 (M) slots:
- 1
PCI Express x1 (Gen 3.x) slots:
- 1
PCI Express x16 (Gen 4.x) slots:
- 1
Internal I/O
12V power connector:
- Yes
ATX Power connector (24-pin):
- Yes
Chassis intrusion connector:
- Yes
CPU fan connector:
- Yes
Front panel audio connector:
- Yes
Number of chassis fan connectors:
- 2
TPM connector:
- Yes
USB 2.0 connectors:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 1
Lens system
Component for:
- PC
Memory
Maximum internal memory:
- 64 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Non-ECC:
- Yes
Number of memory slots:
- 2
Supported memory clock speed (max):
- 3200 MHz
Supported memory clock speeds:
- 2133,2400,2666,2800,2933,3200 MHz
Supported memory types:
- DDR4-SDRAM
Unbuffered memory:
- Yes
Motherboard
Motherboard form factor:
- micro ATX
Networking
Ethernet LAN:
- Yes
LAN controller:
- Realtek 8111H
Other features
Ethernet interface type:
- Gigabit Ethernet
Packaging data
Cables included:
- SATA
Performance
Audio chip:
- Realtek ALC897
Audio output channels:
- 7.1 channels
BIOS memory size:
- 128 Mbit
BIOS type:
- UEFI AMI
Motherboard chipset:
- Intel H470
Number of displays supported:
- 3
RAID levels:
- 0, 1, 5, 10
Ports & interfaces
COM ports quantity:
- 1
DVI-D ports quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
HDMI version:
- 1.4/2.0
Headphone outputs:
- 1
Line-in:
- Yes
Microphone in:
- Yes
Number of SATA III connectors:
- 4
PS/2 ports quantity:
- 1
USB 2.0 ports quantity:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 4
USB connector type:
- USB Type-A
VGA (D-Sub) ports quantity:
- 1
Processor
Processor manufacturer:
- Intel
Processor socket:
- LGA 1200 (Socket H5)
Storage
Number of HDDs supported:
- 4
Number of storage drives supported:
- 5
RAID support:
- Yes
Supported storage drive interfaces:
- PCI Express 3.0, SATA III
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 10 x64, Windows 11 x64
Technical details
Sustainability certificates:
- CE, ErP, EuP, Federal Communications Commission (FCC)
Sustainability compliance:
- Yes
Weight & dimensions
Depth:
- 198 mm
Width:
- 231 mm
