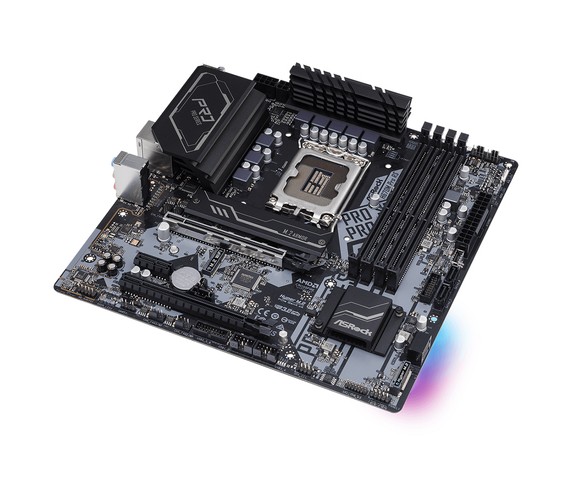

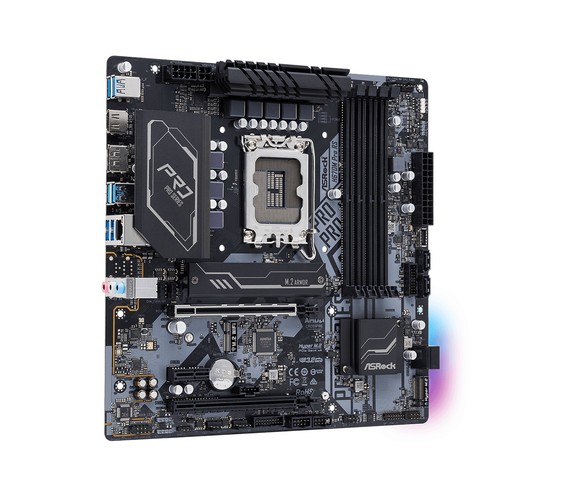

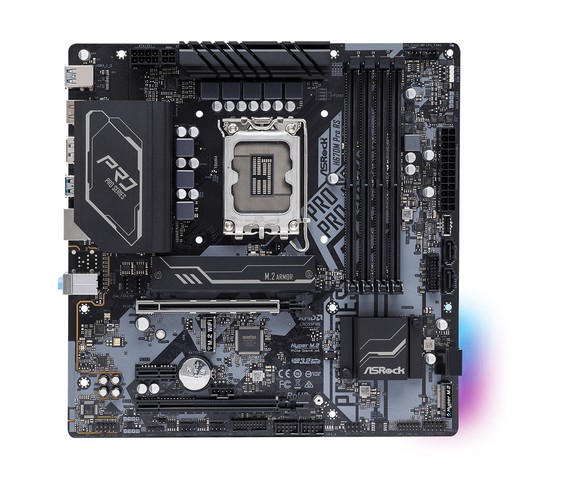

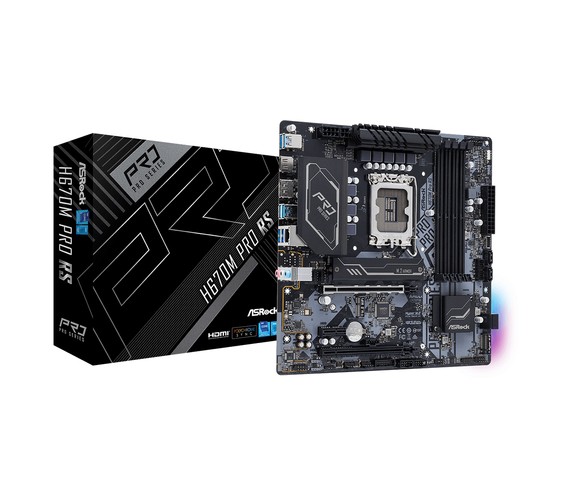

Asrock H670M Pro RS Intel H670 LGA 1700 micro ATX (90-MXBHK0-A0UAYZ)
Περιγραφή
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
- Extra anchor points
- Stronger latch
- Ensure signal stability
- Make sure heavy graphics cards to be well-installed.
Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple PCI Express 4.0 M.2 SSDs, which is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Χαρακτηριστικά
Κατασκευαστής:
Asrock
Motherboard chipset family:
- Intel
PC health monitoring:
- CPU, Fan, Temperature, Voltage

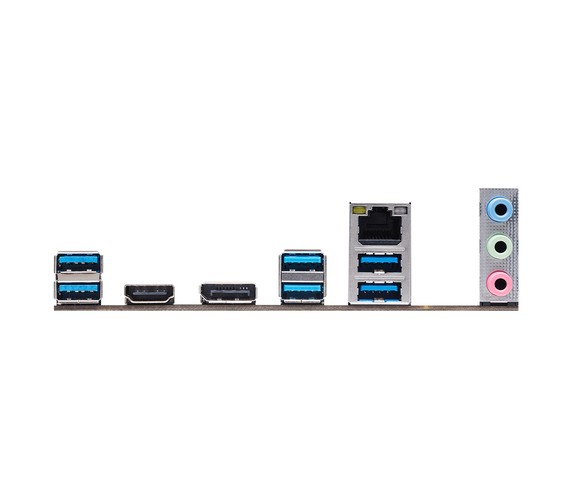

Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 2
BIOS
ACPI version:
- 6.0
System management BIOS (SMBIOS) version:
- 2.7
Display
HDCP:
- Y
Expansion slots
Number of M.2 (M) slots:
- 2
PCI Express x1 (Gen 3.x) slots:
- 1
PCI Express x16 slots:
- 2
Internal I/O
12V power connector:
- Y
ATX Power connector (24-pin):
- Y
Chassis intrusion connector:
- Y
CPU fan connector:
- Y
Front panel audio connector:
- Y
Number of chassis fan connectors:
- 3
RGB LED pin header:
- Y
Thunderbolt headers:
- 1
TPM connector:
- Y
USB 2.0 connectors:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
Lens system
Component for:
- Server
Logistics data
Harmonized System (HS) code:
- 84733020
Memory
Maximum internal memory:
- 128 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Non-ECC:
- Y
Number of memory slots:
- 4
Supported memory clock speeds:
- 4800 MHz
Supported memory types:
- DDR4-SDRAM
Unbuffered memory:
- Y
Motherboard
Motherboard form factor:
- micro ATX
Networking
Ethernet LAN:
- Y
LAN controller:
- Intel® I219-V
Wake-on-LAN ready:
- Y
Wi-Fi:
- N
Other features
Ethernet interface type:
- Gigabit Ethernet
Packaging data
Cables included:
- SATA
Performance
Audio chip:
- Realtek ALC897
Audio output channels:
- 7.1 channels
BIOS memory size:
- 128 Mbit
BIOS type:
- UEFI AMI
Compatible processor series:
- Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Motherboard chipset:
- Intel H670
RAID levels:
- 0, 1, 5, 10
Ports & interfaces
DisplayPort version:
- 1.4
DisplayPorts quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
HDMI version:
- 2.1
Number of SATA III connectors:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 4
Printing
Maximum resolution:
- 7680 x 4320 pixels
Processor
Maximum number of SMP processors:
- 1
Processor manufacturer:
- Intel
Processor socket:
- LGA 1700
Software
Drivers included:
- Y
Storage
RAID support:
- Y
Supported storage drive interfaces:
- M.2, SATA III
Supported storage drive types:
- HDD & SSD
Weight & dimensions
Depth:
- 244 mm
Width:
- 244 mm
