Περιγραφή
PCIe 4.0 Ready

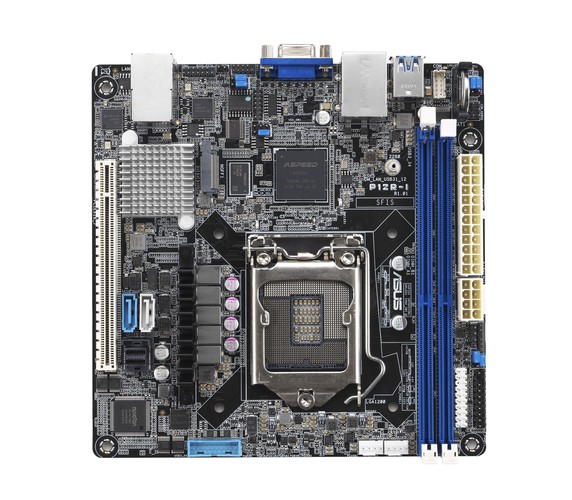

PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Χαρακτηριστικά
Κατασκευαστής:
Asus
Motherboard chipset family:
- Intel
Expansion slots
Number of M.2 (M) slots:
- 1
PCI Express x16 slots:
- 1
Graphics
Graphics card:
- AST2600
Graphics card family:
- ASPEED
On-board graphics card memory:
- 64 MB
Internal I/O
ATX Power connector (24-pin):
- Yes
Chassis intrusion connector:
- Yes
EPS power connector (8-pin):
- Yes
Number of chassis fan connectors:
- 2
Serial port headers:
- 1
TPM connector:
- Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 1
Lens system
Component for:
- Server
Logistics data
Harmonized System (HS) code:
- 84733020
Memory
Maximum internal memory:
- 64 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Number of memory slots:
- 2
Supported memory clock speeds:
- 2666,2933,3200 MHz
Supported memory module capacities:
- 4GB, 8GB, 16GB, 32GB
Supported memory types:
- DDR4-SDRAM
Motherboard
Motherboard form factor:
- ATX
Networking
Ethernet LAN:
- Yes
LAN controller:
- Intel® I210-AT
Wi-Fi:
- No
Operational conditions
Operating temperature (T-T):
- 10 - 50 °C
Storage relative humidity (H-H):
- 20 - 90%
Storage temperature (T-T):
- -40 - 70 °C
Performance
Compatible processor series:
- Intel® Pentium®, Intel Xeon E
Motherboard chipset:
- Intel C252
Ports & interfaces
Ethernet LAN (RJ-45) ports:
- 3
Number of SATA III connectors:
- 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 4
VGA (D-Sub) ports quantity:
- 1
Processor
Processor manufacturer:
- Intel
Processor socket:
- LGA 1200 (Socket H5)
Rear panel I/O ports
Number of SAS ports:
- 2
Storage
Supported storage drive interfaces:
- M.2, SATA III
Weight & dimensions
Depth:
- 170 mm
Package weight:
- 1.1 kg
Width:
- 170 mm
