Περιγραφή
H510M-A R2.0
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-A R2.0 provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.
COOLING
Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
PERFORMANCE
Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-A R2.0 provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime H510 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.
COOLING
Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
PERFORMANCE
Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Χαρακτηριστικά
Κατασκευαστής:
Asus
Audio connector:
- Yes
Motherboard chipset family:
- Intel
Expansion slots
Number of M.2 (M) slots:
- 1
PCI Express x1 (Gen 3.x) slots:
- 2
Internal I/O
12V power connector:
- Yes
ATX Power connector (24-pin):
- Yes
CPU fan connector:
- Yes
EPS power connector (8-pin):
- Yes
Front panel audio connector:
- Yes
Number of chassis fan connectors:
- 2
Number of COM connectors:
- 1
RGB LED pin header:
- Yes
S/PDIF out connector:
- Yes
TPM connector:
- Yes
USB 2.0 connectors:
- 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 1
Lens system
Component for:
- PC
Memory
Maximum internal memory:
- 64 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Non-ECC:
- Yes
Number of memory slots:
- 2
Supported memory clock speed (max):
- 3200 MHz
Supported memory clock speeds:
- 2133,2400,2666,2800,2933,3000,3200 MHz
Supported memory types:
- DDR4-SDRAM
Unbuffered memory:
- Yes
Motherboard
Motherboard form factor:
- micro ATX
Networking
Ethernet LAN:
- Yes
Wi-Fi:
- No
Other features
Ethernet interface type:
- Gigabit Ethernet
Packaging data
Cables included:
- SATA
Performance
Audio output channels:
- 7.1 channels
BIOS memory size:
- 128 Mbit
BIOS type:
- UEFI AMI
Compatible processor series:
- Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Motherboard chipset:
- Intel H510
Supported processor sockets:
- LGA 1200 (Socket H5)

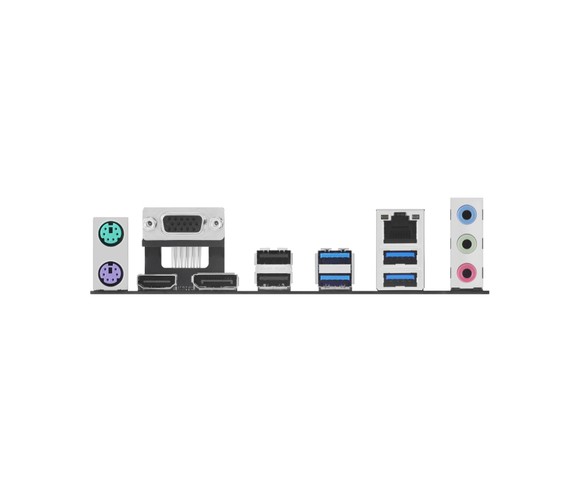

Ports & interfaces
DisplayPorts quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
Headphone outputs:
- 1
Line-in:
- Yes
Microphone in:
- Yes
Number of SATA III connectors:
- 4
PS/2 ports quantity:
- 2
USB 2.0 ports quantity:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 4
VGA (D-Sub) ports quantity:
- 1
Processor
Parallel processing technology support:
- Not supported
Processor manufacturer:
- Intel
Processor socket:
- LGA 1200 (Socket H5)
Storage
Number of HDDs supported:
- 4
Number of storage drives supported:
- 5
Supported storage drive interfaces:
- M.2, SATA III
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 10 x64
Weight & dimensions
Depth:
- 211 mm
Package depth:
- 270 mm
Package height:
- 51.5 mm
Package weight:
- 1.03 kg
Package width:
- 260 mm
Width:
- 226 mm
