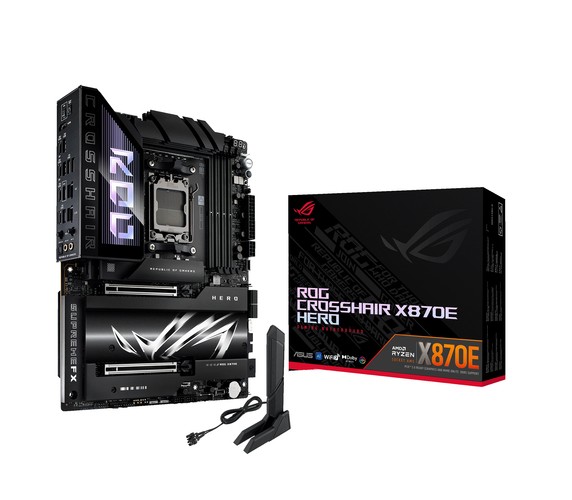

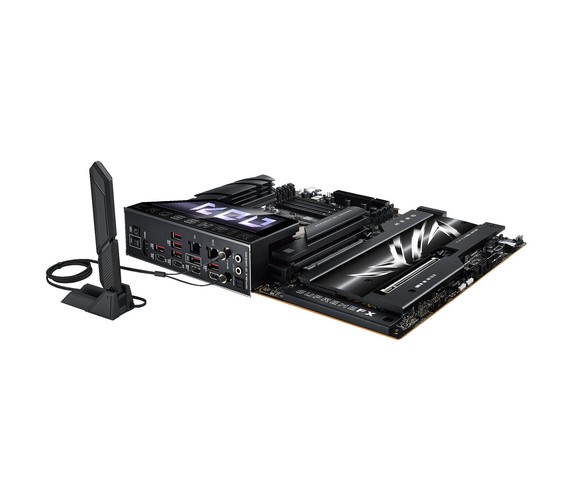

ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX (90MB1IE0-M0EAY0)
Περιγραφή
ASUS AI INTELLIGENCE
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
ai OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
ai OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
Χαρακτηριστικά
Κατασκευαστής:
Asus
Motherboard chipset family:
- AMD
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 6
WiFi-AP antenna jack:
- 1
BIOS
Clear CMOS button:
- Yes
Expansion slots
Number of M.2 (M) slots:
- 5
PCI Express x16 (Gen 4.x) slots:
- 4
PCI Express x16 (Gen 5.x) slots:
- 2
Internal I/O
12V power connector:
- Yes
ATX Power connector (24-pin):
- Yes
CPU fan connector:
- Yes
EPS power connector (8-pin):
- Yes
Front panel audio connector:
- Yes
Number of chassis fan connectors:
- 4
USB 2.0 connectors:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
USB 3.2 Gen 2x2 connectors:
- 2
Lens system
Component for:
- PC
Memory
ECC:
- Yes
Maximum internal memory:
- 192 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Non-ECC:
- Yes
Number of memory slots:
- 4
Supported memory types:
- DDR5-SDRAM
Unbuffered memory:
- Yes
Motherboard
Motherboard form factor:
- ATX
Networking
Bluetooth version:
- 5.4
Ethernet LAN:
- Yes
Top Wi-Fi standard:
- Wi-Fi 7 (802.11be)
Wi-Fi:
- Yes
Wi-Fi standards:
- Wi-Fi 7 (802.11be)
Other features
Ethernet interface type:
- 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Packaging data
Cables included:
- SATA
Performance
Audio chip:
- Realtek ALC4082
Audio output channels:
- 7.1 channels
BIOS memory size:
- 256 Mbit
BIOS type:
- UEFI AMI
Motherboard chipset:
- AMD X870E
RAID levels:
- 0, 1, 10, 5
Supported processor sockets:
- Socket AM5
Ports & interfaces
Bluetooth:
- Yes
Ethernet LAN (RJ-45) ports:
- 2
HDMI ports quantity:
- 1
Headphone outputs:
- 1
Microphone in:
- Yes
Number of SATA III connectors:
- 4
S/PDIF out port:
- Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 2
USB4 Gen 2x2 ports quantity:
- 2
Processor
Parallel processing technology support:
- Not supported
Processor manufacturer:
- AMD
Processor socket:
- Socket AM5
Software
Drivers included:
- Yes
Storage
Number of HDDs supported:
- 5
Number of storage drives supported:
- 10
RAID support:
- Yes
Supported storage drive interfaces:
- M.2, SATA III, SlimSAS
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 11
Weight & dimensions
Depth:
- 244 mm
Height:
- 50 mm
Package depth:
- 312 mm
Package height:
- 108 mm
Package weight:
- 4.26 kg
Package width:
- 370 mm
Weight:
- 2.55 kg
Width:
- 305 mm
