Περιγραφή

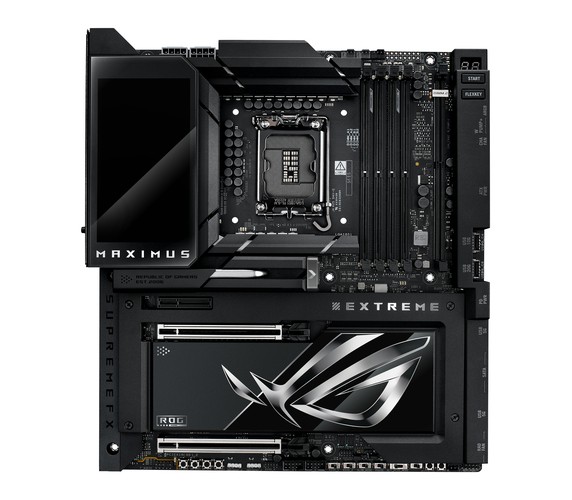

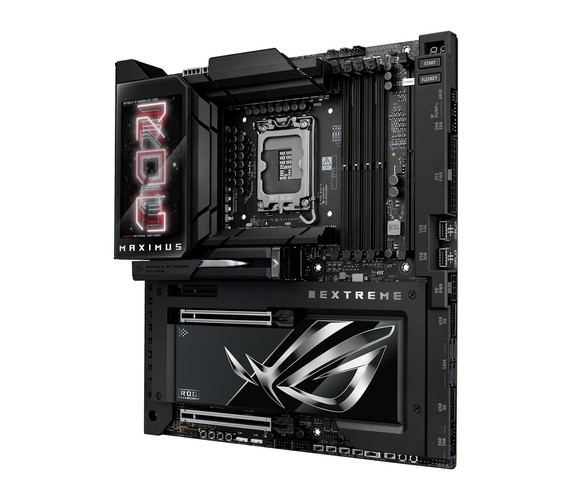

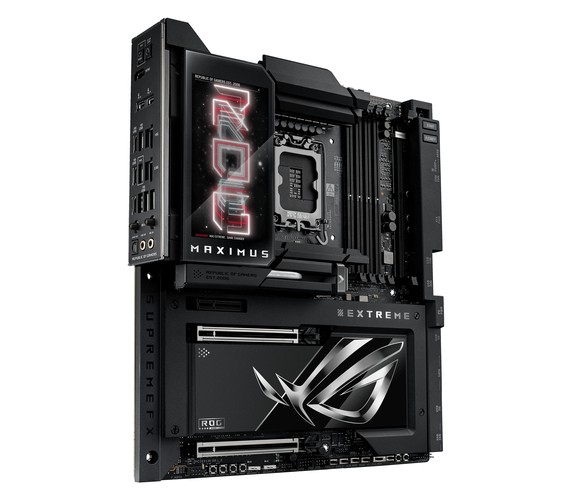

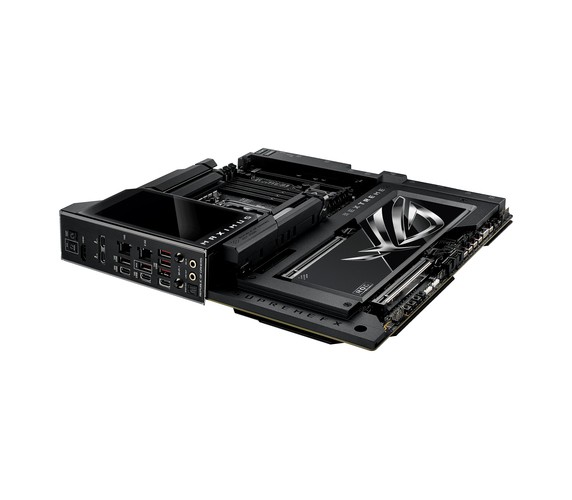

ROG Maximus Z890 Extreme
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel® Core™ Ultra Series 2 processors, DDR5 modules, PCIe® 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt™ functionality and more – all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes.
Χαρακτηριστικά
Κατασκευαστής:
Asus
Motherboard chipset family:
- Intel
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 5
BIOS
Clear CMOS button:
- Yes
Design
Product colour:
- Black
Expansion slots
PCI Express x16 (Gen 5.x) slots:
- 2
PCI Express x4 (Gen 4.x) slots:
- 1
Internal I/O
12V power connector:
- Yes
ATX Power connector (24-pin):
- Yes
CPU fan connector:
- Yes
EPS power connector (8-pin):
- Yes
Front panel audio connector:
- Yes
Number of chassis fan connectors:
- 2
RGB LED pin header:
- Yes
USB 2.0 connectors:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
- 1
USB 3.2 Gen 2x2 connectors:
- 1
Lens system
Component for:
- PC
Memory
ECC сompatibility:
- Non-ECC
Maximum internal memory:
- 192 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Non-ECC:
- Yes
Number of memory slots:
- 4
Supported memory clock speed (max):
- 8800 MHz
Supported memory types:
- DDR5-SDRAM
Unbuffered memory:
- Yes
Motherboard
Motherboard form factor:
- Extended ATX
Networking
Bluetooth version:
- 5.4
Ethernet LAN:
- Yes
Top Wi-Fi standard:
- Wi-Fi 7 (802.11be)
Wi-Fi:
- Yes
Other features
Ethernet interface type:
- 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Performance
Audio chip:
- Realtek ALC4082
Audio output channels:
- 7.1 channels
BIOS memory size:
- 512 Mbit
BIOS type:
- UEFI AMI
Compatible processor series:
- Intel Core Ultra (Series 2)
Motherboard chipset:
- Intel Z890
Ports & interfaces
Bluetooth:
- Yes
Ethernet LAN (RJ-45) ports:
- 2
HDMI ports quantity:
- 1
Microphone in:
- Yes
Number of SATA III connectors:
- 4
S/PDIF out port:
- Yes
Thunderbolt ports quantity:
- 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 2
USB 3.2 Gen 2x2 Type-C ports quantity:
- 1
Processor
Parallel processing technology support:
- Not supported
Processor manufacturer:
- Intel
Processor socket:
- LGA 1851 (Socket V1)
Storage
Number of HDDs supported:
- 4
Number of storage drives supported:
- 10
Supported storage drive interfaces:
- M.2, SATA III
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 11
Weight & dimensions
Depth:
- 277 mm
Package depth:
- 320 mm
Package height:
- 125 mm
Package weight:
- 5.73 kg
Package width:
- 380 mm
Width:
- 305 mm
