Περιγραφή

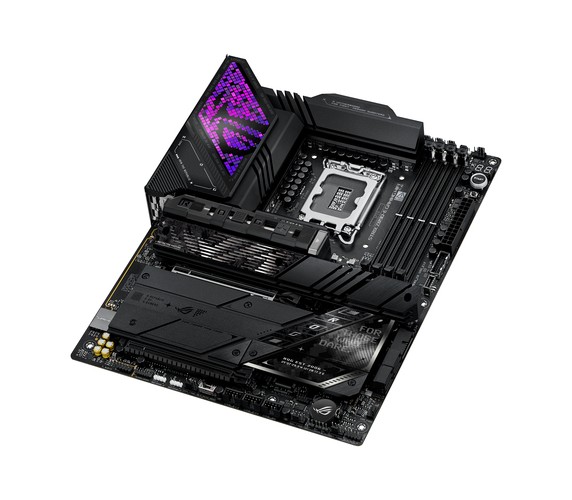

ROG STRIX Z890-E gaming wifi
With an advanced power design and AI features, the ROG Strix Z890-E Gaming WiFi delivers top-tier performance. Equipped with Thunderbolt™ 4, WiFi 7, high-speed DDR5 slots, and seven M.2 slots, it provides exceptional connectivity and speed, making it ideal for elite gaming and advanced AI PC applications.
With an advanced power design and AI features, the ROG Strix Z890-E Gaming WiFi delivers top-tier performance. Equipped with Thunderbolt™ 4, WiFi 7, high-speed DDR5 slots, and seven M.2 slots, it provides exceptional connectivity and speed, making it ideal for elite gaming and advanced AI PC applications.
Χαρακτηριστικά
Κατασκευαστής:
Asus
Motherboard chipset family:
- Intel
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 7
BIOS
Clear CMOS button:
- Yes
Design
Product colour:
- Black
Expansion slots
Number of M.2 (M) slots:
- 7
PCI Express x16 (Gen 4.x) slots:
- 1
PCI Express x16 (Gen 5.x) slots:
- 1
Graphics
On-board graphics card:
- No
Internal I/O
12V power connector:
- Yes
ATX Power connector (24-pin):
- Yes
Chassis intrusion connector:
- Yes
CPU fan connector:
- Yes
EPS power connector (8-pin):
- Yes
Front panel audio connector:
- Yes
Number of chassis fan connectors:
- 5
Thunderbolt headers:
- 1
USB 2.0 connectors:
- 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
USB 3.2 Gen 2x2 connectors:
- 1
Lens system
Component for:
- PC
Memory
ECC сompatibility:
- Non-ECC
Maximum internal memory:
- 192 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Non-ECC:
- Yes
Number of memory slots:
- 4
Supported memory clock speed (max):
- 8800 MHz
Supported memory types:
- DDR5-SDRAM
Unbuffered memory:
- Yes
Motherboard
Motherboard form factor:
- ATX
Networking
Bluetooth version:
- 5.4
Ethernet LAN:
- Yes
Top Wi-Fi standard:
- Wi-Fi 7 (802.11be)
Wi-Fi:
- Yes
Other features
Ethernet interface type:
- 5 Gigabit Ethernet
Performance
Audio chip:
- Realtek ALC4080
Audio output channels:
- 7.1 channels
BIOS memory size:
- 256 Mbit
BIOS type:
- UEFI AMI
Compatible processor series:
- Intel Core Ultra (Series 2)
Motherboard chipset:
- Intel Z890
RAID levels:
- 0, 1, 5, 10
Ports & interfaces
Bluetooth:
- Yes
DisplayPorts quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
Microphone in:
- Yes
Number of SATA III connectors:
- 4
S/PDIF out port:
- Yes
Thunderbolt ports quantity:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 2
USB connector type:
- USB Type-A, USB Type-C
Processor
Parallel processing technology support:
- Not supported
Processor manufacturer:
- Intel
Processor socket:
- LGA 1851 (Socket V1)
Storage
Number of HDDs supported:
- 4
Number of storage drives supported:
- 11
RAID support:
- Yes
Supported storage drive interfaces:
- M.2, SATA III
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 11
Weight & dimensions
Depth:
- 244 mm
Package depth:
- 87 mm
Package height:
- 281 mm
Package weight:
- 2.58 kg
Package width:
- 356 mm
Width:
- 305 mm
