Περιγραφή

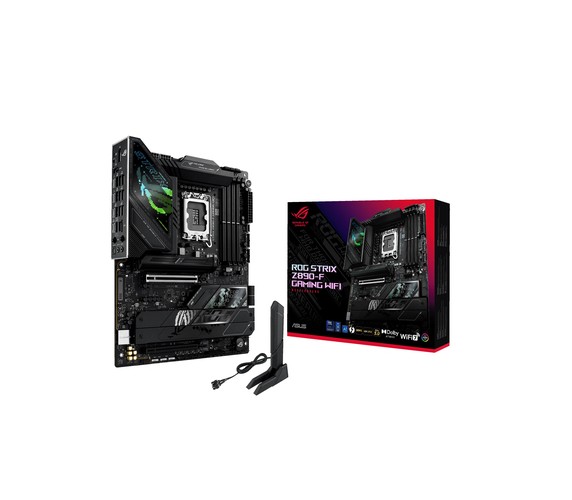

ROG STRIX Z890-F gaming wifi
With NPU boosting and cutting-edge AI solutions, the ROG STRIX Z890-F Gaming WiFi supports advanced AI-driven PC applications. Equipped with Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, it delivers blazing-fast data transfers, unparalleled connectivity and a customizable aesthetic that can be either subtle or bold.
With NPU boosting and cutting-edge AI solutions, the ROG STRIX Z890-F Gaming WiFi supports advanced AI-driven PC applications. Equipped with Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, it delivers blazing-fast data transfers, unparalleled connectivity and a customizable aesthetic that can be either subtle or bold.
Χαρακτηριστικά
Κατασκευαστής:
Asus
Motherboard chipset family:
- Intel
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 4
BIOS
Clear CMOS button:
- Yes
Design
Product colour:
- Black
Expansion slots
Number of M.2 (M) slots:
- 5
PCI Express x16 (Gen 4.x) slots:
- 1
PCI Express x16 (Gen 5.x) slots:
- 1
Internal I/O
12V power connector:
- Yes
ATX Power connector (24-pin):
- Yes
Chassis intrusion connector:
- Yes
CPU fan connector:
- Yes
EPS power connector (8-pin):
- Yes
Front panel audio connector:
- Yes
Number of chassis fan connectors:
- 5
Thunderbolt headers:
- 1
USB 2.0 connectors:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
USB 3.2 Gen 2x2 connectors:
- 1
Lens system
Component for:
- PC
Memory
ECC сompatibility:
- Non-ECC
Maximum internal memory:
- 192 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Non-ECC:
- Yes
Number of memory slots:
- 4
Supported memory clock speed (max):
- 8600 MHz
Supported memory types:
- DDR5-SDRAM
Unbuffered memory:
- Yes
Motherboard
Motherboard form factor:
- ATX
Networking
Bluetooth version:
- 5.4
Ethernet LAN:
- Yes
Top Wi-Fi standard:
- Wi-Fi 7 (802.11be)
Wi-Fi:
- Yes
Other features
Ethernet interface type:
- 2.5 Gigabit Ethernet
Performance
Audio chip:
- Realtek ALC4080
Audio output channels:
- 7.1 channels
BIOS memory size:
- 256 Mbit
BIOS type:
- UEFI AMI
Compatible processor series:
- Intel Core Ultra (Series 2)
Motherboard chipset:
- Intel Z890
Ports & interfaces
Bluetooth:
- Yes
DisplayPorts quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
Microphone in:
- Yes
Number of SATA III connectors:
- 4
S/PDIF out port:
- Yes
Thunderbolt ports quantity:
- 2
USB 2.0 ports quantity:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 2
Processor
Parallel processing technology support:
- Not supported
Processor manufacturer:
- Intel
Processor socket:
- LGA 1851 (Socket V1)
Storage
Number of HDDs supported:
- 4
Number of storage drives supported:
- 9
Supported storage drive interfaces:
- M.2, SATA III
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 11
Weight & dimensions
Depth:
- 244 mm
Package depth:
- 273 mm
Package height:
- 68 mm
Package weight:
- 1.98 kg
Package width:
- 353 mm
Width:
- 305 mm
