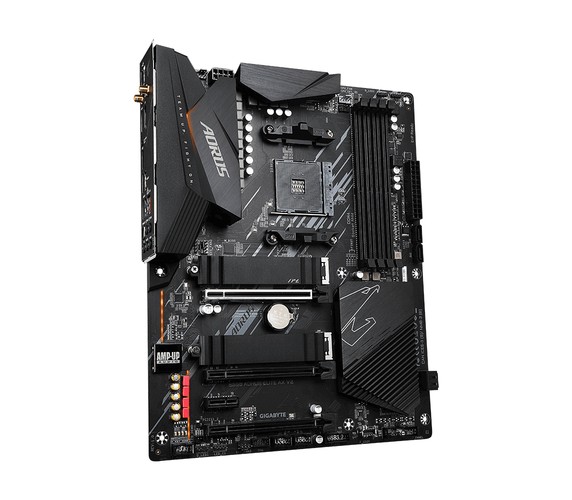

GIGABYTE B550 AORUS ELITE AX V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, 12+2 Phases Digital Twin Power Design, up to 4733MHz DDR4 (OC), 2xPCIe 3.0 M.2, WiFi 6E, 2.5GbE LAN, USB 3.2 Gen1 (B550 AORUS ELITE AX V2)
Περιγραφή
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
Χαρακτηριστικά
Κατασκευαστής:
GigaByte
Motherboard chipset family:
- AMD
PC health monitoring:
- CPU, Fan, Temperature, Voltage
Supported processor sockets (cooler):
- Socket AM4
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 2
WiFi-AP antenna jack:
- 2
BIOS
ACPI version:
- 5.0
Clear CMOS jumper:
- Y
Desktop Management Interface (DMI) version:
- 2.7
System management BIOS (SMBIOS) version:
- 2.7
Expansion slots
Number of M.2 (M) slots:
- 2
PCI Express x1 (Gen 3.x) slots:
- 1
PCI Express x16 (Gen 4.x) slots:
- 1
PCI Express x16 slots:
- 2
Internal I/O
12V power connector:
- Y
ATX Power connector (24-pin):
- Y
CPU fan connector:
- Y
Front panel audio connector:
- Y
Front panel connector:
- Y
Number of chassis fan connectors:
- 3
RGB LED pin header:
- Y
TPM connector:
- Y
USB 2.0 connectors:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 1
Lens system
Component for:
- PC
Memory
ECC:
- Y
Maximum internal memory:
- 128 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Non-ECC:
- Y
Number of memory slots:
- 4
Supported memory clock speeds:
- 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz
Supported memory module capacities:
- 8GB, 16GB, 32GB
Supported memory types:
- DDR4-SDRAM
Unbuffered memory:
- Y
Motherboard
Motherboard form factor:
- ATX
Networking
Bluetooth version:
- 5.0
Ethernet LAN:
- Y
Top Wi-Fi standard:
- Wi-Fi 6 (802.11ax)
Wi-Fi:
- Y
Wi-Fi standards:
- 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
WLAN controller model:
- Intel Wi-Fi 6 AX200
Other features
Ethernet interface type:
- 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
Audio chip:
- Realtek ALC1200
Audio output channels:
- 7.1 channels
BIOS memory size:
- 256 Mbit
BIOS type:
- UEFI AMI
Compatible processor series:
- AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
Motherboard chipset:
- AMD B550
RAID levels:
- 0,1,10
Ports & interfaces
Bluetooth:
- Y
DisplayPorts quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
Headphone outputs:
- 1
Microphone in:
- Y
Number of SATA III connectors:
- 4
S/PDIF out port:
- Y
USB 2.0 ports quantity:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 3
Power
Power source type:
- ATX
Processor
Parallel processing technology support:
- Not supported
Processor manufacturer:
- AMD
Processor socket:
- Socket AM4
Storage
Supported storage drive interfaces:
- M.2, Serial ATA III
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 10 x64
Weight & dimensions
Depth:
- 244 mm
Width:
- 305 mm
