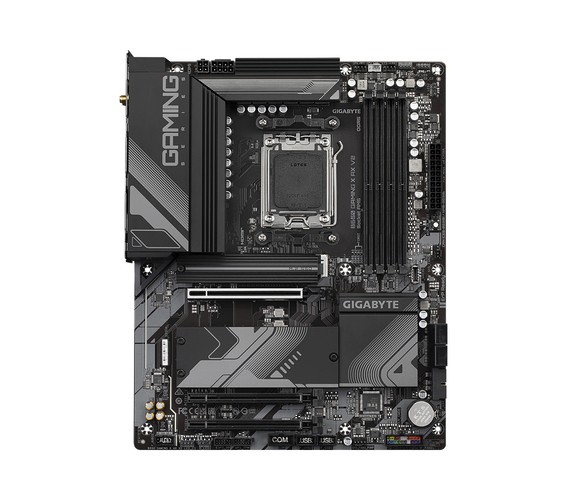

GIGABYTE B650 GAMING X AX V2 Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2 (B650 GAMING X AX V2)
Περιγραφή
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Χαρακτηριστικά
Κατασκευαστής:
GigaByte
Cooling type:
- Active
Motherboard chipset family:
- AMD
PC health monitoring:
- Fan, Temperature, Voltage, Water cooling
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 1
WiFi-AP antenna jack:
- 2
Battery
Battery technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery weight:
- 3 g
Lithium weight per battery:
- 0.07 g
Number of battery cells:
- 1
BIOS
ACPI version:
- 5.0
Clear CMOS button:
- Yes
Clear CMOS jumper:
- Yes
Desktop Management Interface (DMI) version:
- 2.7
System management BIOS (SMBIOS) version:
- 2.7
Design
Product colour:
- Black
Display
HDCP:
- Yes
Expansion slots
Number of M.2 (M) slots:
- 3
PCI Express x16 slots:
- 3
Internal I/O
12V power connector:
- Yes
ATX Power connector (24-pin):
- Yes
CPU fan connector:
- Yes
EPS power connector (8-pin):
- Yes
Front panel audio connector:
- Yes
Front panel connector:
- Yes
RGB LED pin header:
- Yes
Serial port headers:
- 1
TPM connector:
- Yes
USB 2.0 connectors:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
- 1
Lens system
Component for:
- PC
Logistics data
Products per shipping (inner) case:
- 1 pc(s)
Memory
Maximum internal memory:
- 192 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Non-ECC:
- Yes
Number of memory slots:
- 4
Supported memory clock speed (max):
- 8000 MHz
Supported memory clock speeds:
- 8000, 7800, 7600, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz
Supported memory module capacities:
- 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory types:
- DDR5-SDRAM
Unbuffered memory:
- Yes
Motherboard
Motherboard form factor:
- ATX
Networking
Bluetooth version:
- 5.2
Ethernet LAN:
- Yes
Top Wi-Fi standard:
- Wi-Fi 6E (802.11ax)
Wi-Fi:
- Yes
Wi-Fi standards:
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model:
- AMD RZ616
Other features
Ethernet interface type:
- 2.5 Gigabit Ethernet
Packaging content
Batteries included:
- Yes
Packaging data
Bundled software:
- Norton Internet Security (OEM version) LAN bandwidth management software
Cables included:
- SATA
Performance
Audio chip:
- Realtek ALC897
Audio output channels:
- 7.1 channels
BIOS memory size:
- 256 Mbit
BIOS type:
- UEFI AMI
Compatible processor series:
- AMD Ryzen™ 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Motherboard chipset:
- AMD B650
RAID levels:
- 0, 1, 10
Supported processor sockets:
- Socket AM5
Ports & interfaces
Bluetooth:
- Yes
DisplayPort version:
- 1.4
DisplayPorts quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
HDMI version:
- 2.1
Headphone outputs:
- 3
Microphone in:
- Yes
Number of SATA III connectors:
- 4
USB 2.0 ports quantity:
- 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 1
USB connector type:
- USB Type-A, USB Type-C
Power
Battery type:
- CR2032
Power source type:
- ATX
Printing
Maximum resolution:
- 4096 x 2160 pixels
Processor
Maximum internal memory supported by processor:
- 192 GB
Parallel processing technology support:
- Not supported
Processor manufacturer:
- AMD
Processor socket:
- Socket AM5
Storage
Number of HDDs supported:
- 1
Number of storage drives supported:
- 5
RAID support:
- Yes
Supported storage drive interfaces:
- M.2, PCI Express 4.0, SATA III
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 10 x64, Windows 11 x64
Technical details
Country of origin:
- China
Warranty period:
- 3 year(s)
Weight & dimensions
Depth:
- 244 mm
Height:
- 35 mm
Package depth:
- 270 mm
Package height:
- 80 mm
Package weight:
- 1.96 kg
Package width:
- 335 mm
Width:
- 305 mm
