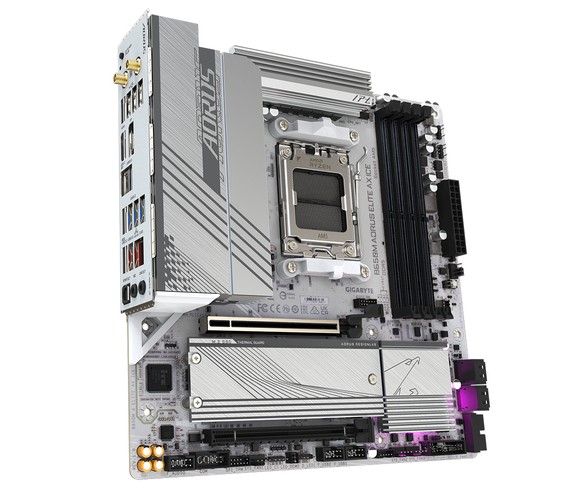

GIGABYTE B650M AORUS ELITE AX ICE Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2x2 (B650M A Elite AX Ice)
Περιγραφή
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Χαρακτηριστικά
Κατασκευαστής:
GigaByte
Motherboard chipset family:
- AMD
PC health monitoring:
- Fan, Temperature, Voltage
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 2
WiFi-AP antenna jack:
- 2
Battery
Battery technology:
- Lithium-Manganese Dioxide (LiMnO2)
Battery weight:
- 3 g
Lithium weight per battery:
- 0.07 g
Number of battery cells:
- 1
BIOS
ACPI version:
- 5.0
Clear CMOS jumper:
- Yes
Desktop Management Interface (DMI) version:
- 2.7
System management BIOS (SMBIOS) version:
- 2.7
Design
Product colour:
- White
Display
HDCP:
- Yes
Expansion slots
Number of M.2 (M) slots:
- 2
PCI Express x16 (Gen 4.x) slots:
- 1
PCI Express x16 slots:
- 1
Internal I/O
12V power connector:
- Yes
ATX Power connector (24-pin):
- Yes
CPU fan connector:
- Yes
Front panel audio connector:
- Yes
Front panel connector:
- Yes
Number of chassis fan connectors:
- 4
RGB LED pin header:
- Yes
Thunderbolt headers:
- 2
USB 2.0 connectors:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 1
USB 3.2 Gen 2x2 connectors:
- 1
Lens system
Component for:
- PC
Logistics data
Products per shipping (inner) case:
- 1 pc(s)
Memory
ECC сompatibility:
- ECC & Non-ECC
Maximum internal memory:
- 192 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Number of memory slots:
- 4
Supported memory clock speed (max):
- 8000 MHz
Supported memory clock speeds:
- 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Supported memory module capacities:
- 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Supported memory types:
- DDR5-SDRAM
Unbuffered memory:
- Yes
Motherboard
Motherboard form factor:
- micro ATX
Networking
Bluetooth version:
- 5.3
Ethernet LAN:
- Yes
Top Wi-Fi standard:
- Wi-Fi 6E (802.11ax)
Wi-Fi:
- Yes
Wi-Fi standards:
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller model:
- Realtek RTL8852CE
Other features
Ethernet interface type:
- 2.5 Gigabit Ethernet
Packaging content
Batteries included:
- Yes
Packaging data
Cables included:
- SATA
Performance
Audio output channels:
- 7.1 channels
BIOS memory size:
- 256 Mbit
BIOS type:
- UEFI AMI
Compatible processor series:
- AMD Ryzen™ 7
DirectX version:
- 12.0
Motherboard chipset:
- AMD B650
RAID levels:
- 0, 1, 5, 10
Ports & interfaces
Bluetooth:
- Yes
DisplayPort version:
- 1.4
DisplayPorts quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
HDMI version:
- 2.1
Number of SATA III connectors:
- 4
Total number of SATA connectors:
- 4
USB 2.0 ports quantity:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 5
USB 3.2 Gen 2x2 Type-C ports quantity:
- 1
Power
Battery type:
- CR2032
Printing
Maximum resolution:
- 4096 x 2304 pixels
Processor
Maximum internal memory supported by processor:
- 192 GB
Maximum number of SMP processors:
- 1
Processor manufacturer:
- AMD
Processor socket:
- Socket AM5
Software
Drivers included:
- Yes
Storage
Number of HDDs supported:
- 4
Number of storage drives supported:
- 6
RAID support:
- Yes
Supported storage drive interfaces:
- M.2, SATA III
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 10 x64, Windows 11 x64
Technical details
Country of origin:
- China
Warranty period:
- 3 year(s)
Weight & dimensions
Depth:
- 244 mm
Height:
- 35 mm
Package depth:
- 268 mm
Package height:
- 68 mm
Package weight:
- 1.89 kg
Package width:
- 270 mm
Width:
- 244 mm
