Περιγραφή
ABSOLUTE SIMPLICITY

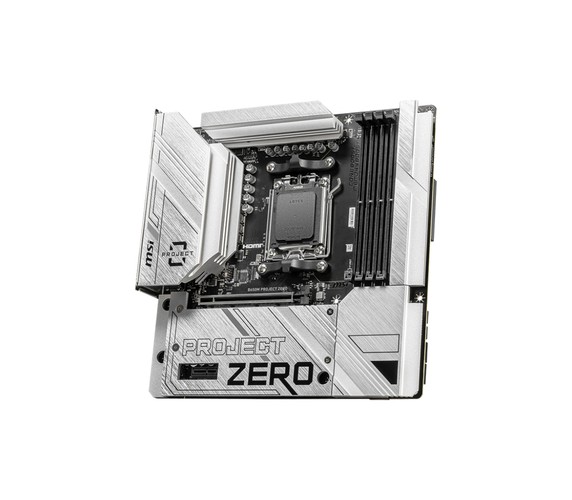

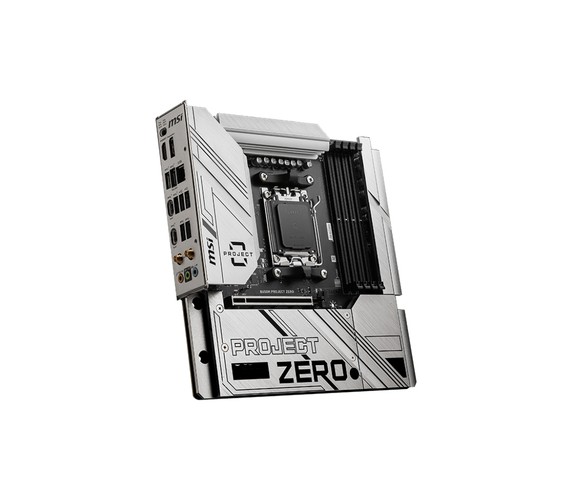

B650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
B650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Χαρακτηριστικά
Κατασκευαστής:
MSI
Motherboard chipset family:
- AMD
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 3
BIOS
ACPI version:
- 6.4
System management BIOS (SMBIOS) version:
- 3.5
Design
Product colour:
- White
Expansion slots
Number of M.2 (M) slots:
- 2
PCI Express x1 slots:
- 1
PCI Express x16 slots:
- 1
Graphics
On-board graphics card:
- No
Internal I/O
Chassis intrusion connector:
- Yes
CPU fan connector:
- Yes
Front panel audio connector:
- Yes
Front panel connector:
- Yes
RGB LED pin header:
- Yes
TPM connector:
- Yes
USB 2.0 connectors:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
- 1
Lens system
Component for:
- PC
Memory
ECC:
- No
ECC сompatibility:
- Non-ECC
Maximum internal memory:
- 128 GB
Memory channels:
- Dual-channel
Non-ECC:
- Yes
Number of memory slots:
- 4
Supported memory clock speed (max):
- 7600 MHz
Supported memory clock speeds:
- 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7400,7600 MHz
Supported memory types:
- DDR5-SDRAM
Unbuffered memory:
- Yes
Motherboard
Motherboard form factor:
- micro ATX
Networking
Bluetooth version:
- 5.3
Ethernet LAN:
- Yes
Top Wi-Fi standard:
- Wi-Fi 6E (802.11ax)
Wi-Fi:
- Yes
Wi-Fi standards:
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Other features
Ethernet interface type:
- 2.5 Gigabit Ethernet
Packaging data
Cables included:
- SATA
Performance
Audio chip:
- Realtek ALC897
Audio output channels:
- 7.1 channels
BIOS memory size:
- 256 Mbit
BIOS type:
- UEFI AMI
Motherboard chipset:
- AMD B650
RAID levels:
- 0, 5, 10
Supported processor sockets:
- Socket AM5
Ports & interfaces
Bluetooth:
- Yes
DisplayPort version:
- 1.4
DisplayPorts quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
HDMI version:
- 2.1
Number of SATA III connectors:
- 4
S/PDIF out port:
- Yes
USB 2.0 ports quantity:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 1
USB 3.2 Gen 2x2 Type-C ports quantity:
- 1
Processor
Maximum internal memory supported by processor:
- 128 GB
Parallel processing technology support:
- Not supported
Processor manufacturer:
- AMD
Processor socket:
- Socket AM5
Storage
RAID support:
- Yes
Supported storage drive interfaces:
- M.2, PCI Express
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 10 x64, Windows 11 x64
Weight & dimensions
Depth:
- 243.8 mm
Width:
- 243.8 mm
