MSI MAG B650M Mortar WIFI AMD B650 Socket AM5 micro ATX (7D76-001R)
Περιγραφή
Unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Χαρακτηριστικά
Κατασκευαστής:
MSI
Motherboard chipset family:
- AMD
PC health monitoring:
- Fan

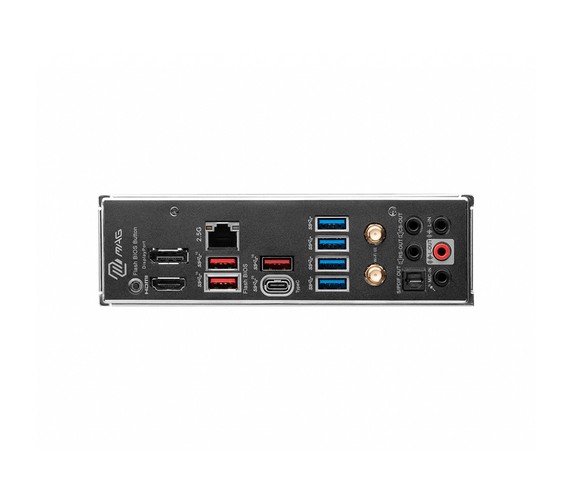

Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 3
Expansion slots
Number of M.2 (M) slots:
- 2
PCI Express x16 (Gen 3.x) slots:
- 1
Internal I/O
ATX Power connector (24-pin):
- Y
Chassis intrusion connector:
- Y
CPU fan connector:
- Y
Front panel audio connector:
- Y
Front panel connector:
- Y
USB 2.0 connectors:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
Lens system
Component for:
- PC
Memory
Maximum internal memory:
- 128 GB
Number of memory slots:
- 4
Supported memory clock speeds:
- 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory types:
- DDR5-SDRAM
Motherboard
Motherboard form factor:
- micro ATX
Networking
Bluetooth version:
- 5.2
Ethernet LAN:
- Y
LAN controller:
- Realtek RTL8125B
Top Wi-Fi standard:
- Wi-Fi 6E (802.11ax)
Wi-Fi:
- Y
Wi-Fi standards:
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Other features
Ethernet interface type:
- 2.5 Gigabit Ethernet
Performance
Audio chip:
- Realtek ALC4080
Audio output channels:
- 7.1 channels
Compatible processor series:
- AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Motherboard chipset:
- AMD B650
RAID levels:
- 0, 1, 10
Supported processor sockets:
- Socket AM5
Ports & interfaces
Bluetooth:
- Y
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
HDMI version:
- 2.1
Headphone outputs:
- 1
Line-in:
- Y
Microphone in:
- Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 4
USB 3.2 Gen 2x2 Type-C ports quantity:
- 1
Processor
Processor manufacturer:
- AMD
Processor socket:
- Socket AM5
Storage
Supported storage drive interfaces:
- M.2, SATA
System requirements
Windows operating systems supported:
- Windows 11 x64
Weight & dimensions
Depth:
- 243.8 mm
Width:
- 243.8 mm
