Περιγραφή
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
Χαρακτηριστικά
Κατασκευαστής:
MSI
Motherboard chipset family:
- Intel
BIOS
System management BIOS (SMBIOS) version:
- 3.5
Expansion slots
PCI Express x1 (Gen 3.x) slots:
- 2
Internal I/O
ATX Power connector (24-pin):
- Yes
CPU fan connector:
- Yes
Front panel audio connector:
- Yes
Front panel connector:
- Yes
RGB LED pin header:
- Yes
TPM connector:
- Yes
USB 2.0 connectors:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
Lens system
Component for:
- PC
Memory
ECC сompatibility:
- Non-ECC
Maximum internal memory:
- 128 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Non-ECC:
- Yes
Number of memory slots:
- 4
Supported memory clock speed (max):
- 4800 MHz
Supported memory clock speeds:
- 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz
Supported memory types:
- DDR4-SDRAM
Motherboard
Motherboard form factor:
- micro ATX
Networking
Ethernet LAN:
- Yes
Wi-Fi:
- No
Other features
Ethernet interface type:
- 2.5 Gigabit Ethernet
Performance
Audio chip:
- Realtek ALC897
Audio output channels:
- 7.1 channels
BIOS memory size:
- 256 Mbit
BIOS type:
- UEFI AMI
Compatible processor series:
- Intel® Celeron®, Intel® Pentium® Gold
Motherboard chipset:
- Intel B760
RAID levels:
- 0, 1, 5, 10
Supported processor sockets:
- LGA 1700

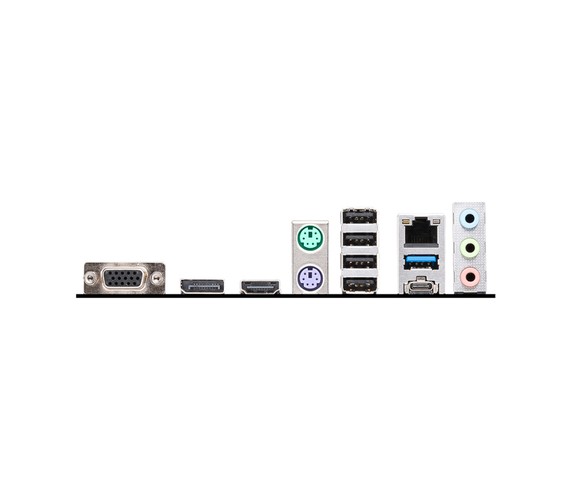

Ports & interfaces
DisplayPort version:
- 1.4
DisplayPorts quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
HDMI version:
- 1.4
Number of SATA III connectors:
- 4
USB 2.0 ports quantity:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 1
Power
Power source type:
- ATX
Processor
Maximum number of SMP processors:
- 1
Processor manufacturer:
- Intel
Processor socket:
- LGA 1700
Storage
RAID support:
- Yes
Supported storage drive interfaces:
- M.2, SATA III
System requirements
Windows operating systems supported:
- Windows 10, Windows 11
Weight & dimensions
Depth:
- 243.8 mm
Width:
- 243.8 mm
