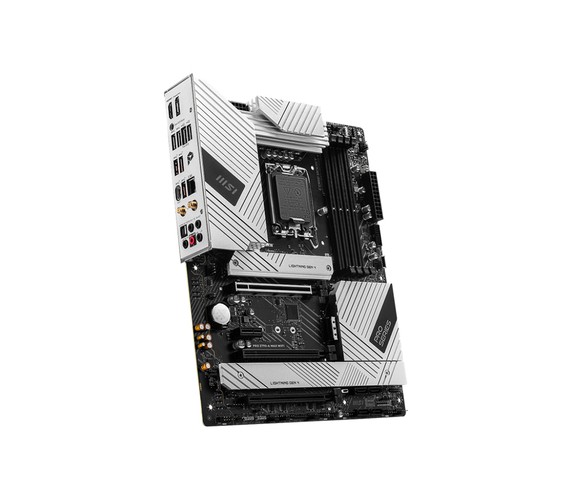

MSI PRO Z790-A MAX WIFI motherboard Intel Z790 LGA 1700 ATX (7E07-014R)
Περιγραφή
PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel® Core™ 14th Gen and 13th Gen processors.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
Χαρακτηριστικά
Κατασκευαστής:
MSI
Motherboard chipset family:
- Intel
Back panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
- 3
BIOS
Desktop Management Interface (DMI) version:
- 6.4
System management BIOS (SMBIOS) version:
- 3.5
Expansion slots
Number of M.2 (M) slots:
- 4
Internal I/O
Chassis intrusion connector:
- Yes
CPU fan connector:
- Yes
Front panel audio connector:
- Yes
Front panel connector:
- Yes
RGB LED pin header:
- Yes
TPM connector:
- Yes
USB 2.0 connectors:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
- 1
Lens system
Component for:
- PC
Memory
Maximum internal memory:
- 128 GB
Memory channels:
- Dual-channel
Non-ECC:
- Yes
Number of memory slots:
- 4
Supported memory clock speed (max):
- 7200 MHz
Supported memory clock speeds:
- 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz
Supported memory types:
- DDR5-SDRAM
Unbuffered memory:
- Yes
Motherboard
Motherboard form factor:
- ATX
Networking
Bluetooth version:
- 5.3
Ethernet LAN:
- Yes
Top Wi-Fi standard:
- Wi-Fi 6 (802.11ax)
Wi-Fi:
- Yes
Wi-Fi standards:
- 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Other features
Ethernet interface type:
- 2.5 Gigabit Ethernet
Packaging data
Cables included:
- SATA
Performance
Audio output channels:
- 7.1 channels
BIOS memory size:
- 256 Mbit
BIOS type:
- UEFI AMI
Compatible processor series:
- Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold
Motherboard chipset:
- Intel Z790
RAID levels:
- 0, 1, 5, 10
Supported processor sockets:
- LGA 1700
Ports & interfaces
Bluetooth:
- Yes
DisplayPorts quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
Number of SATA III connectors:
- 6
S/PDIF out port:
- Yes
USB 2.0 ports quantity:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 2
USB 3.2 Gen 2x2 Type-C ports quantity:
- 1
Processor
Processor manufacturer:
- Intel
Processor socket:
- LGA 1700
Storage
Number of storage drives supported:
- 10
Supported storage drive interfaces:
- M.2, PCI Express
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 10 x64, Windows 11 x64
Weight & dimensions
Depth:
- 243.8 mm
Width:
- 304.8 mm
