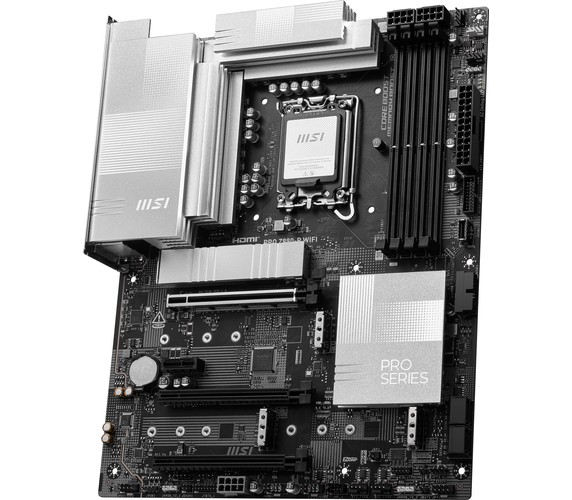

PRO Z890-P WIFI
PRO Z890-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI Motherboard ai logo
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, PRO Z890-P WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
PRO Z890-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI Motherboard ai logo
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
14+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, PRO Z890-P WIFI is ready for the challenge of high-end processors.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
Χαρακτηριστικά
Κατασκευαστής:
MSI
Motherboard chipset family:
- Intel
Design
Product colour:
- Black
Expansion slots
Number of M.2 (M) slots:
- 4
PCI Express x1 slots:
- 1
PCI Express x16 slots:
- 3
Internal I/O
CPU fan connector:
- Yes
TPM connector:
- Yes
USB 2.0 connectors:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
- 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
- 1
Lens system
Component for:
- PC
Memory
Maximum internal memory:
- 256 GB
Memory channels:
- Dual-channel
Memory slots type:
- DIMM
Non-ECC:
- No
Number of memory slots:
- 4
Supported memory clock speed (max):
- 9200 MHz
Supported memory clock speeds:
- 6400,9200 MHz
Supported memory types:
- DDR5-SDRAM
Motherboard
Motherboard form factor:
- ATX
Networking
Bluetooth version:
- 5.4
Ethernet LAN:
- Yes
Top Wi-Fi standard:
- Wi-Fi 7 (802.11be)
Wi-Fi:
- Yes
Wi-Fi standards:
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Other features
Ethernet interface type:
- 5 Gigabit Ethernet
Performance
Audio chip:
- Realtek ALC897
Audio output channels:
- 7.1 channels
Compatible processor series:
- Intel Core Ultra (Series 2)
Motherboard chipset:
- Intel Z890
RAID levels:
- 0, 1, 5, 10
Supported processor sockets:
- LGA 1851
Ports & interfaces
Bluetooth:
- Yes
DisplayPort version:
- 1.4
DisplayPorts quantity:
- 1
Ethernet LAN (RJ-45) ports:
- 1
HDMI ports quantity:
- 1
HDMI version:
- 2.1
Number of SATA III connectors:
- 4
Thunderbolt ports quantity:
- 1
Total number of SATA connectors:
- 4
USB 2.0 ports quantity:
- 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
- 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
- 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
- 1
Processor
Maximum internal memory supported by processor:
- 256 GB
Processor manufacturer:
- Intel
Processor socket:
- LGA 1851 (Socket V1)
Storage
Number of HDDs supported:
- 8
Number of storage drives supported:
- 4
RAID support:
- Yes
Supported storage drive interfaces:
- M.2, SATA III
Supported storage drive types:
- HDD & SSD
System requirements
Windows operating systems supported:
- Windows 11
Weight & dimensions
Depth:
- 304.8 mm
Width:
- 243.8 mm
